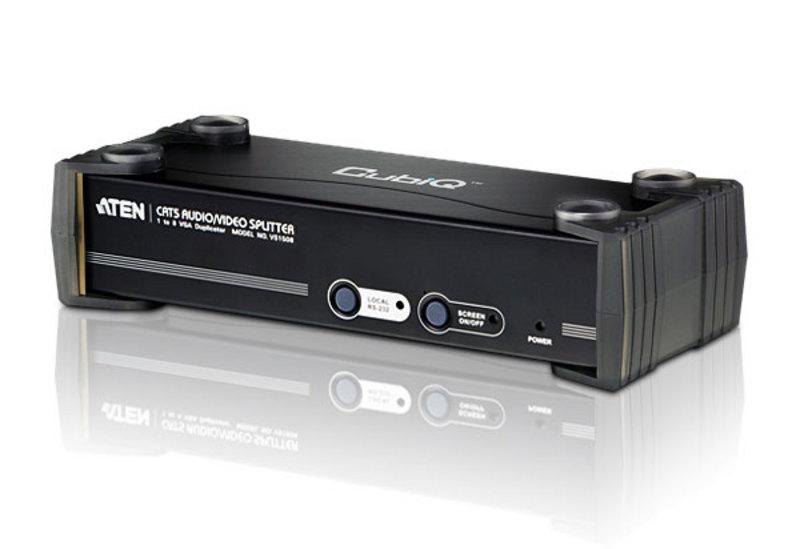

VS1508T Aten 8 Way CAT5 Audio /Video Splitter

Aten VS1508T 8 way VGA and Audio over CAT5 splitter is designed to connect one source to 8 displays over a long distance. It uses Cat 5e (or higher) cable to extend displays up to 150 m, 450 m when combined with aten receiving devices and supports 1920 x 1200 @ 60Hz resolution. It is audio and serial enabled and provides an RS232 channel for selection (only one RS-232 channel can be selected at a time). This product is no longer available. For a CAT5/6 8-Way VGA & Audio splitter, please click here

Data Sheet

Description

The VS1508T Cat 5 Audio/Video Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers *, the VS1508T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 500 m away from the source.
* Suggested Compatible Receiver Units:
VB552 VGA Over Cat 5 Repeater + Audio

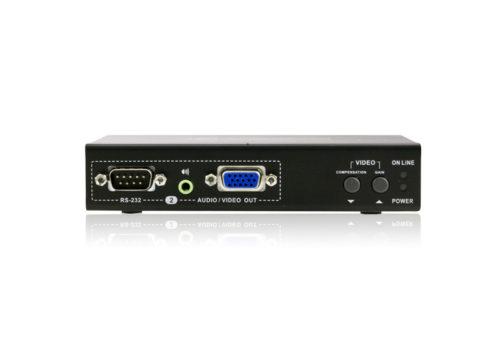

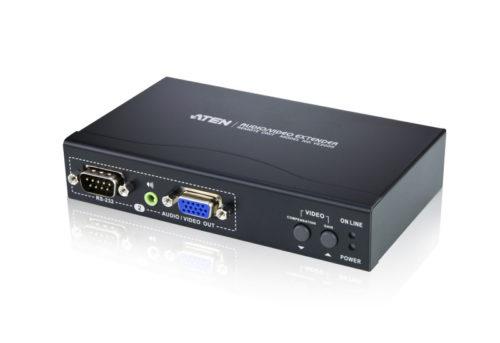

VE200R Audio/Video Receiver

Cascadable to three levels, the VS1508T can support thousands of displays when combined in an installation with ATEN repeaters or extenders. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation.
The solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Broadcasting information to public locations
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities

  • One video input to 8 video outputs
  • Cascadable to three levels – provides up to thousands of video signals when combined in an installation with ATEN receiving devices*
  • Audio and serial enabled
  • Uses Cat 5e (or higher) cable to extend displays up to 150 m, 450 m when combined with aten receiving devices
  • High quality video – supports 1920 x 1200 @ 60Hz
  • Group screens off/on function
  • Provide a RS-232 channel for selection***Receiving Devices
    a. ATEN VB552 (VGA Over Cat 5 Repeater)
    b. ATEN VE200R (Audio/Video Extender)
    ** Only one RS-232 channel can be selected at a time
Video Input Interface 1 x HDB-15 Male (Blue)
Impedance 75Ώ
Max Distance 1.8 m
Video Output Interface 1 x HDB-15 Female (Blue) – Local Output
8 x RJ-45 Female
Impedance 75Ώ
Video Max. Bandwidth 300 MHz
Max Resolutions / Distance Up to 1920 x 1200@60Hz@30m;
1280 x 1024@60Hz@150m
Audio Input 1 x Mini Stereo Jack Female (Green)
Output 1 x Mini Stereo Jack Female (Green)
Control RS-232 Connector:
1 x DB-9 Female (Black);
1 x DB-9 Male (Black)
Power Connector: 1 x DC Jack (Black)
Consumption:5.3 VDC, 6.9W
Environment Operating Temp. 0-50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH, Non-Condensing
Physical
Properties
Housing Metal
Weight 0.76 kg
Dimensions
(L x W x H)
21.00 x 8.80 x 5.55 cm
  • 1x VS1508 Cat 5 Audio/Video Splitter
  • 1x VGA/Audio Cable (1.8 m)
  • 1x Power Adapter
  • 1x User Instructions
