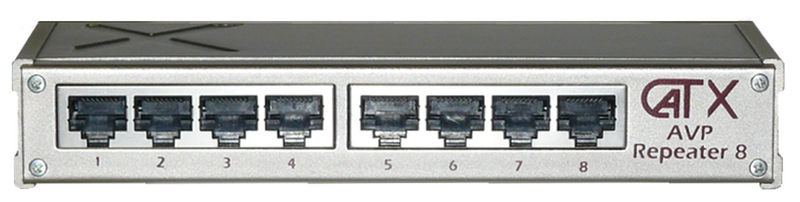

CX-0W-AVP-RP8 S Y Electronics 300m 8-Way VGA and Audio Repeater and Splitter

These CatX Repeaters receive a video signal from any CatX AVP or CatX Mini transmitter via UTP cable and provide a sharp high quality video at up to 150m.

Compare

These CatX Repeaters receive a video signal from any CatX AVP or CatX Mini transmitter via UTP cable and provide a sharp high quality video at up to 150m. They perform best using low cost Cat5 cabling. Resolutions up to 2048 x 1536 are achievable depending on the length of UTP cable – see Resolution vs. distance below.

These CatX Repeaters receive a video signal from any CatX AVP or CatX Mini transmitter via UTP cable and provide a sharp high quality video at up to 150m. They perform best using low cost Cat5 cabling. Resolutions up to 2048 x 1536 are achievable depending on the length of UTP cable – see Resolution vs. distance below.

The Repeater 8 product contains a complete receiver section with a distance compensation control that is continuously adjustable to provide a sharp image up to 150m of UTP cable. It also features its own local VGA monitor and audio output connectors.

It is possible to connect several Repeater units by using the distance compensation control at each stage to achieve installations with many more display points than previously possible, each displaying the same output from a single PC or media player.

The outputs of the Repeater can be set to either AV mode or VP mode, even if the source signal not already in that mode. Each unit features two switches that switch each bank of four outputs independently between the two modes. Switch 1 sets the mode for outputs 1 to 4 and switch 2 sets the mode for outputs 5-8 on the Repeater 8 only.

  • Inputs : 1x RJ45 UTP connector, 1x 5V DC 1.3mm connector
  • Outputs : 8x RJ45 UTP connectors, 1x HD15 female VGA
  • Distance control : continuous control for optimised display quality up to 150m
  • Video format : VGA – UXGA compatible 1080p compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported, Separate or composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
  • Resolution vs. distance : 1024×768 or 1280×1024 (PC) / 1280x720p or 1368x768p (HDTV) at 300m; 1600×1200 (PC) / 1920x1080p (HDTV) at 220m; 2048×1536 (PC) at 100m
  • Dimensions 120mm [W] x 60mm [D] x 28mm [H]
  • Net Weight 390g
  • Gross Weight 490g

Warranty

2 years parts and labour
