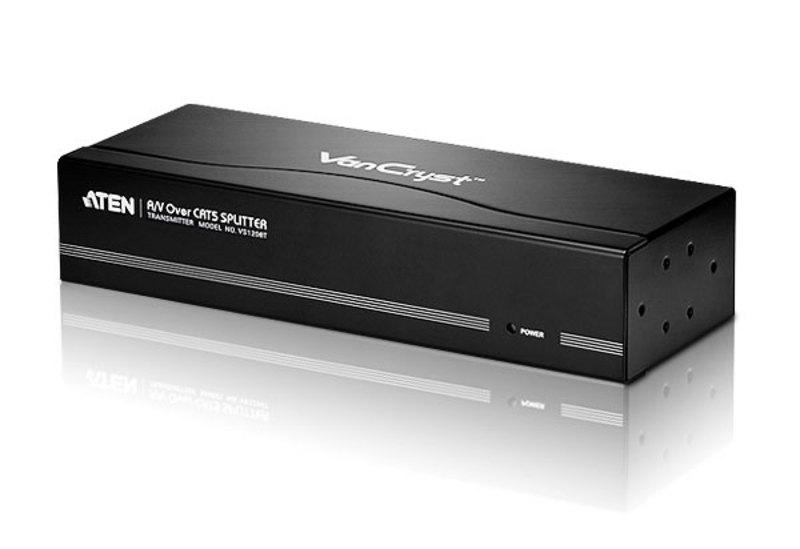

VS1208T Aten 8-Port A/V Over Cat 5 Splitter

£395.00 inc VAT

Aten VS1208T VGA 8-way and audio over CAT 5 up to 300m splitter supports local display and up to 225 MHz bandwidth. It is audio enabled (nono) and produces \ superior video quality up to 1920 x 1200 @ 60Hz. The Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.

Data Sheet

Description

The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers*, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.

* Suggested Compatible Receiver Units with VS1208T:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade

  • One audio/video input to 8 audio/video outputs via Cat 5e cable
  • Supports local display + 8 remote displays
  • Supports up to 225 MHz bandwidth
  • Uses Cat 5e cable to extend displays up to 300 m
  • Superior video quality – up to 1920 x 1200@60Hz
  • Audio enabled (mono)
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable

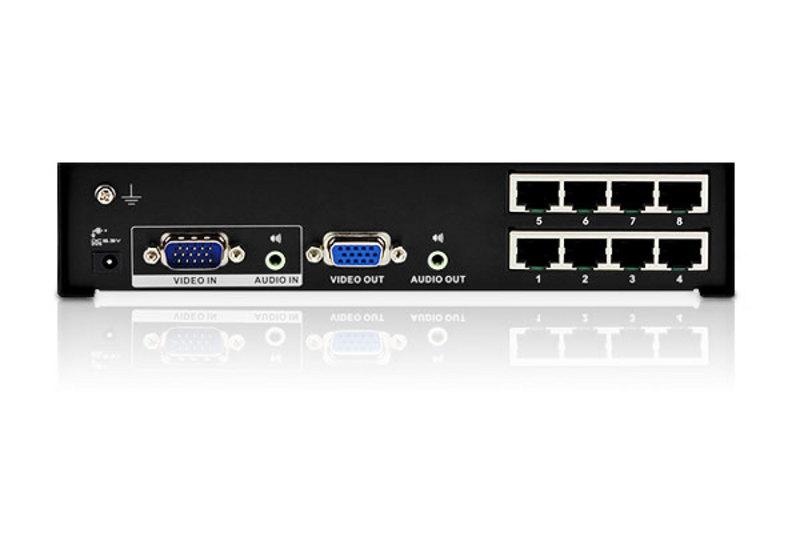

Video Input
Interface 1 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDB-15 Female (Blue) – Local Output

8 x RJ-45 Female

Impedance 75 Ώ
Video
Max. Bandwidth 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@60Hz@150m;

1280 x 1024@60Hz@300m

Audio
Input 1 x Mini Stereo Jack Female (Green)
Output 1 x Mini Stereo Jack Female (Green)
Power
Connectors 1 x DC Jack (Black)
Consumption 5.3 VDC, 1.64W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.64 kg
Dimensions (L x W x H) 20.00 x 7.51 x 4.40 cm
  • 1x VS1208T A/V Over Cat 5 Splitter
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x Foot Pad Set (4 pcs)
  • 1x User Instructions
