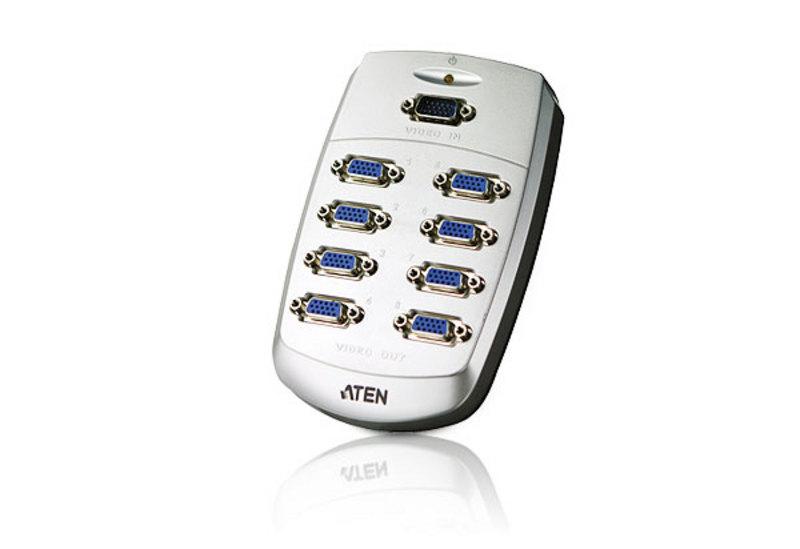

VS88 Aten 8-Port VGA Splitter

£65.40 inc VAT

Aten VS88 8-way VGA splitter allows a single VGA video signal to be distributed to 8 output displays. The splitter supports up to 250MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440. VS82 supports VGA, XVGA, SVGA, and UXGA as well as long distance transmission – up to 30m.

Data Sheet

Manual



Description

The VS88 Video Splitter duplicates the video signal from an input source (i.e. a computer) and routes it to up to 8 display devices (monitors, projectors, etc.). However, the VS88 goes beyond being merely duplicators, in that it also enhances the video signals over distances up to 30 meters.

Furthermore, the VS88 can be cascaded three levels to additional ATEN video splitters to support many numerous display devices and  mounts inconspicuously on the wall or out of sight.

  • One video input to 8 video outputs.
  • Cascadable to 3 levels – provides up to 512 video signals.
  • Supports up to 250 MHz bandwidth.
  • Long distance transmission – up to 30 m (210′). *
  • High video resolution – up to 1920 x 1440.
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall.
  • Supports VGA, XGA, SVGA, UXGA and multisync monitors.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Video Input
Interface 1 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 8 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 250 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 30 m
Power
Connectors 1 x DC Jack
Consumption 9 VDC, 2.5W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.22 kg
Dimensions (L x W x H) 9.79 x 15.59 x 3.33 cm
  • 1x 8-Port Video Splitter
  • 1x Power Adapter
  • 1x VGA Cable (1.8m) (Optional)
  • 1x User Instructions
