CS1732B Aten 2-Port USB & VGA KVMP Switch Bundle

£129.00 inc VAT

Aten 2-Port USB & VGA KVMP switch with OSD, KVM cables, audio and Dual USB & PS2 support. It is supplied with all neccasry KVM cables to connect 2 computers.

Data Sheet

Manual





Description

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.

  • 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
  • One console controls two computers and two additional USB devices
  • 2-port USB 2.0 hub built in
  • USB 2.0 compliant
  • Dual interface – supports computers with PS/2 or USB keyboard and mouse configurations
  • Audio enabled – full bass response provides a rich experience for 2.1 surround sound systems
  • Console audio ports on front panel for easy access – ideal for IP phone users
  • Independent switching of KVM, USB, and Audio focus
  • Superior video quality; 2048 x 1536; DDC2B
  • Supports widescreen resolutions
  • Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
  • Multiplatform support – Windows , Mac, and Sun
  • Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
  • Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Sun/Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers
  • LED Display for easy status monitoring
  • Easy installation no software required
  • Firmware upgradeable

    *1.PC keyboard combinations emulate Sun/Mac keyboards
    2.Sun/Mac keyboards only work with their own computers

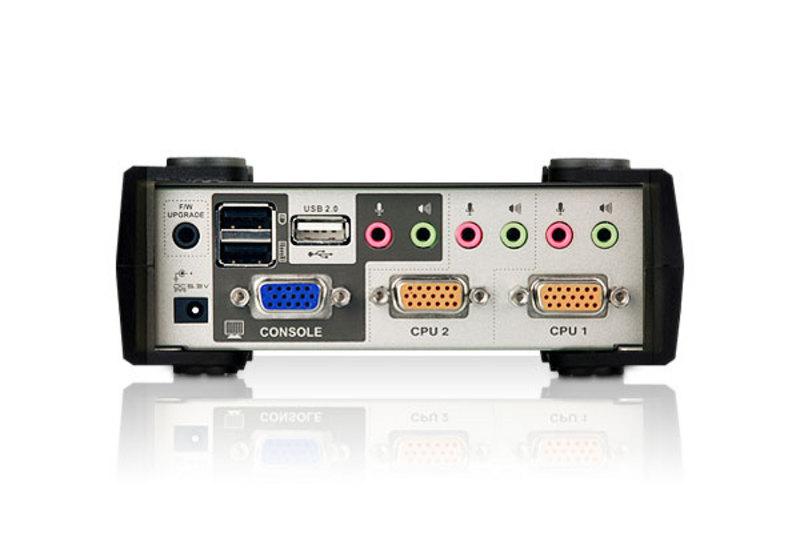

Computer Connections 2
Port Selection OSD; Hotkeys; Pushbuttons; Mouse
Connectors Console Port Keyboard 1 x USB Type A Female (Black)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (Black)
Speaker 2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
KVM Port Keyboard 2 x SPHD-15 Female (Yellow)
Video
Mouse
Speaker 2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
Firmware upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White)
Switches Selected 2 x Pushbutton
LEDs On Line/ Selected 2 (Orange)
USB Link 2 (Green)
Emulation Keyboard / Mouse PS/2; USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-255 seconds (Default: 5 sec.)
Power Consumption DC5.3V, 3.1W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.55 kg
Dimensions ( L x W x H ) 13.98×8.80×5.55cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
  • 1x 2-Port USB 2.0 KVMP™ Switch
  • 2x Custom USB KVM Cable Sets
  • 2x OSD/Hotkey Stickers
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x User Instructions
