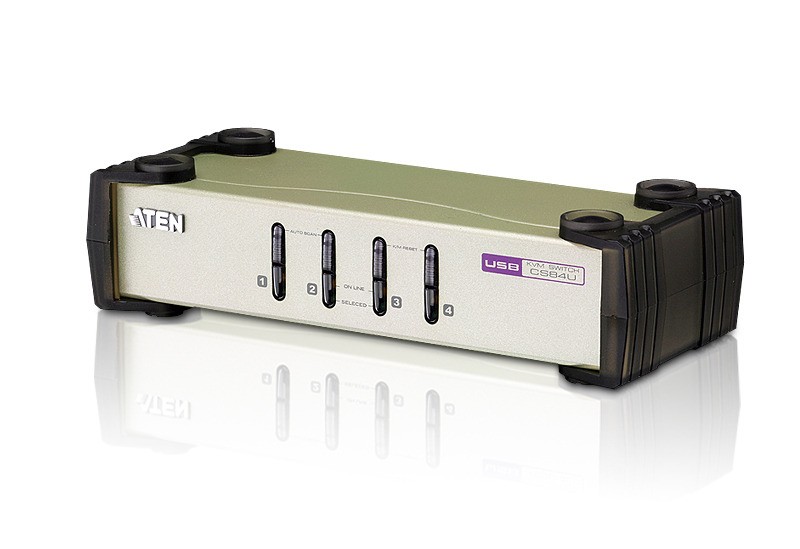

CS84U Aten 4-Port PS/2 – USB & VGA KVM Switch with PS2 Bundle

£129.00 inc VAT

Aten CS84U 4 port hybrid dual interface desktop KVM switch that supports both PS/2 or USB keyboards and mice. It features superior video resolution up to 1048 x 1536 and DDC2B. It comes as a bundle and supplied with 4 KVM KVM cables to connect 4 computers.

Data Sheet

Manual



Description

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN’s new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.

Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms.

  • One PS/2-USB VGA console controls four VGA interface computers.
  • Dual Interface – supports computers with PS/2 or USB keyboards and mice

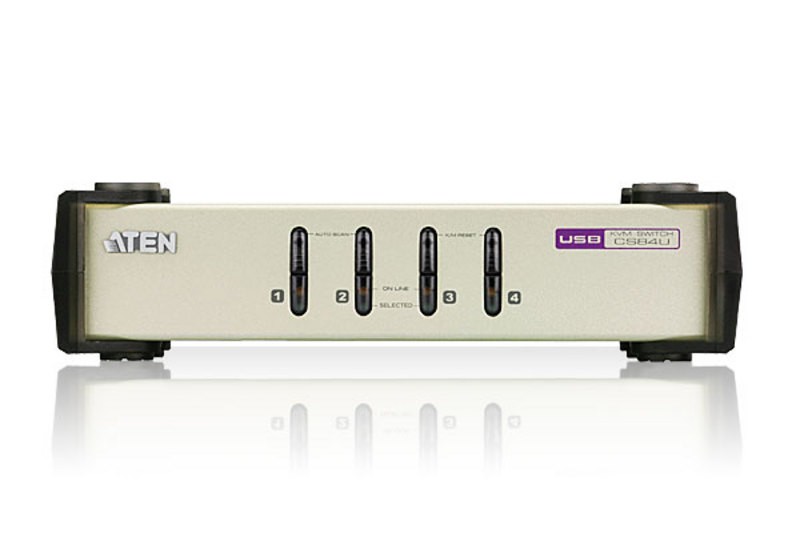

  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Superior video quality – 2048 x 1536; DDC2B
  • Video DynaSync™ – Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards
  • Gaming keyboard support
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
  • Non-powered* 1. PC keyboard combinations emulate Mac/Sun keyboards
    2. Mac/Sun keyboard work only with their own computers

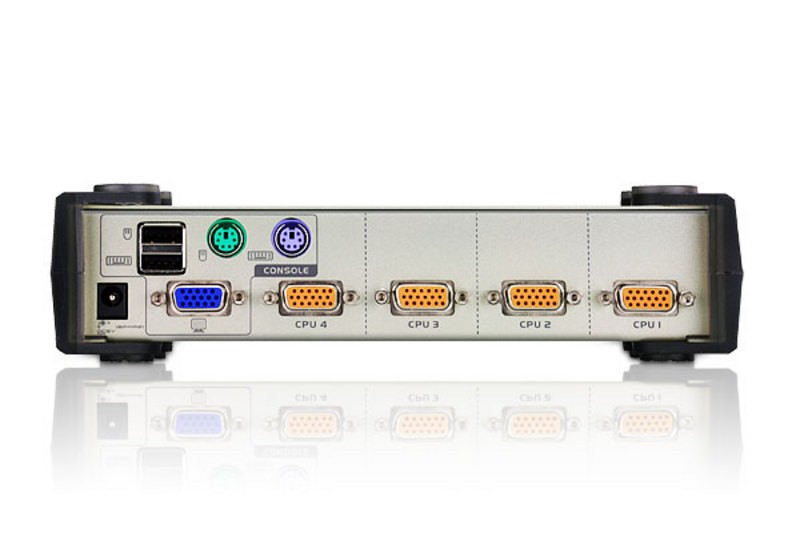

Computer Connections 4
Port Selection Front Panel Pushbuttons; Hotkey, USB Mouse
Connectors Console Ports Keyboard 1 x USB Type A Female (Black),
1 x 6-pin Mini-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (Black),
1 x 6-pin Mini-DIN Female (Green)
KVM Ports 4 x SPHD-18 Female (Yellow)
Power 1 x DC Jack
Switches Selected 4 x Pushbutton
LEDs On Line 4 (Orange)
Selected 4 (Green)
Emulation Keyboard/Mouse PS/2, USB
Video 2048 x 1536 @ 60 Hz; DDC2B
Scan Interval 3, 5, 10, 20 secs. (5 secs. default)
Power Consumption DC 5V, 1.2W
Environment Operating Temp. 0 – 50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.77 kg
Dimensions
( L x W x H )
21.00×8.80×5.55cm

  • 1x CS84U PS/2-USB KVM Switch
  • 2x Custom KVM Cable Sets
  • 1x User Instructions
