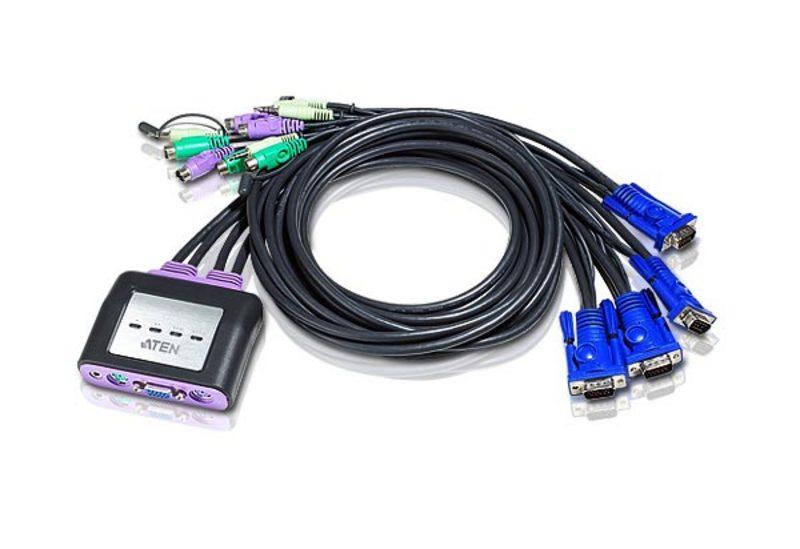

CS64A Aten 4-Port PS/2 & VGA Cable KVM Switch with Audio

Aten CS64A 4-port PS2 & VGA KVM switch is a non-powered compact design with built-in 1.8m (6 feet) cables. It features superior video quality- up to 2048 x 1536; DDC2B with speaker support.

Data Sheet

Description

CS64U 4-Port USB KVM Switch has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console.



  • One PS/2 console controls four computers
  • Compact design, built in 1.8m (6 feet) cables
  • All-in-one design
  • With speaker support
  • Superior video quality- up to 2048 x 1536; DDC2B
  • Auto Scan function to monitor computer operation
  • Non-powered
  • Multiplatform support – Windows, Linux

Computer Connections 4
Port Selection Hotkey
Connectors Console Ports Keyboard 1 x 6-pin Mini-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green)
Speaker 1 x Mini Stereo Jack Female (Green)
KVM Ports Keyboard 4 x 6-pin Mini-DIN Male (Purple)
Video 4 x HDB-15 Male (Blue)
Mouse 4 x 6-pin Mini-DIN Male (Green)
Speaker 4 x Mini Stereo Plug Male(Green)
LEDs Selected 4 x Green
Cable Length Computers 1.8m
Emulation Keyboard/Mouse PS/2
Video 2048 x1536; DDC2B
Scan Interval 5 Seconds
Environment Operating Temp. 0°~50°C
Storage Temp. -20°~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 0.83 kg
Dimensions ( L x W x H ) 7.86×7.86×3.06cm
  • 1x 4-Port PS/2 KVM Switch with Attached Cables
  • 1x User Instructions
