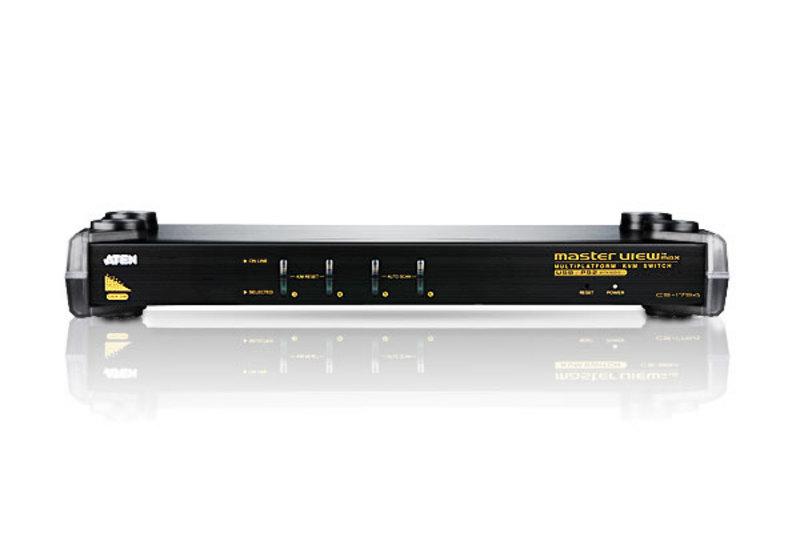

CS1754 Aten 4-Port PS/2-USB Rackmountable KVM Switch Bundle

CS1754 is a KVM Switch with 4 ports and supports computers with PS/2 or USB interfaces via cables and audio signal function. Supplied as a bundle with 4 sets of 1.8m USB & VGA  & audio KVM cables.

Data Sheet

Manual





£245.00 inc VAT

Compare

The Aten CS1754 4-port KVM Switch supports computers with PS/2 or USB interfaces via cables and audio signal function. Moreover, it supports 3-tier connection via cascade. With 21 sets of CS1754, users can control 64 computers. CS1754 provides growing enterprises a reliable investment on comprehensive connection and long-term safe use.

  • One USB console controls 4 computers.
  • Cascadable up to 3 levels – provides up to 64 computers.
  • Dual InterfaCEsupports computers with PS/2 or USB keyboards and mice.
  • Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
  • Auto PS/2 and USB interface detection.
  • Buzzer On/Off via hotkey and OSD.
  • Computer selection via front panel pushbuttons, hotkeys and OSD.
  • Superior video quality – up to 2048 x 1536; DDC2B.
  • Firmware upgradable.
  • With speaker and microphone support.
  • ATEN USB ASIC inside.
  • Available in silver and black.
  • Rack mountable in 19″ system rack.
  • Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
  • 1x 4-Port PS/2-USB KVM Switch
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x User Instructions

Computer Connections Direct 4
Max. 64 (via Cascade)
Port Selection Hotkey, Pushbutton, OSD

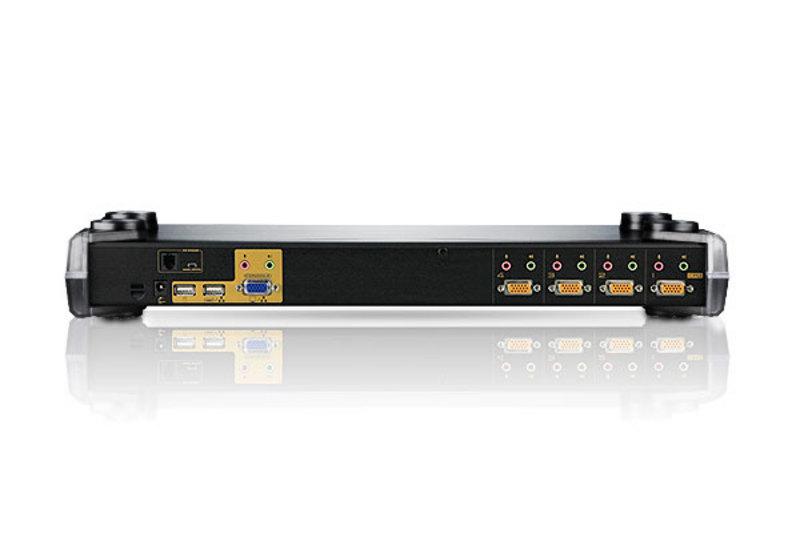

Connectors Console
Ports
Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard/
Video/Mouse
4 x SPHD-15 Female (Yellow)
Speaker 4 x Mini Stereo Jack Female (Green)
Microphone 4 x Mini Stereo Jack Female (Pink)
Fi/W Upgrade 1 x RJ- 11 Female (Black)
Power 1 x DC Jack (Black)
Switches Port 4 x Pushbutton
Fi/W Upgrade 1 x Slide
Reset 1 x Semi-recessed Pushbutoon
LEDs On Line 4 (Orange)
Selected 4 (Green)
Power 1 (Blue)
Emulation Keyboard/Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 1-255 Seconds
Power Consumption DC5V, 2.75W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 2.64 kg
Dimensions ( L x W x H ) 43.72×16.10×4.40cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
