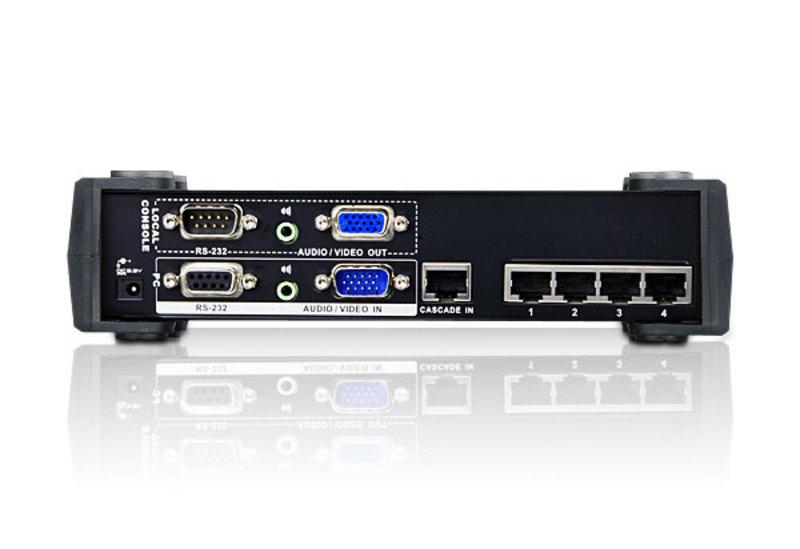

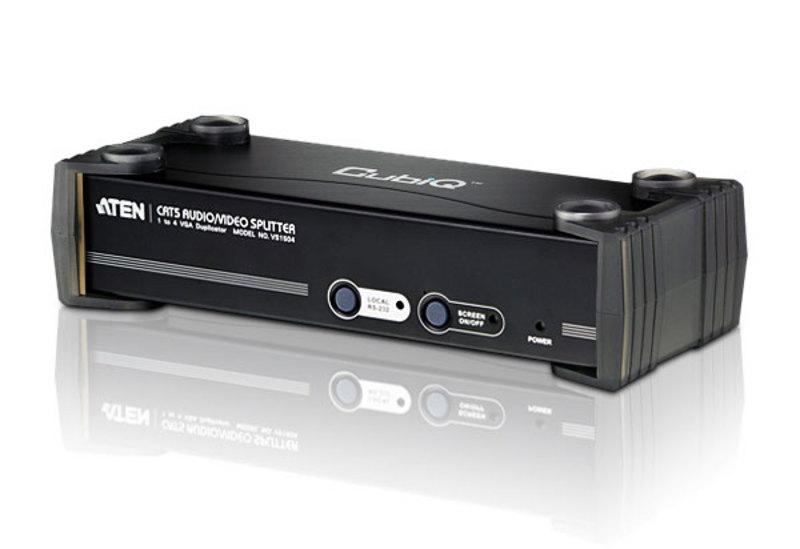

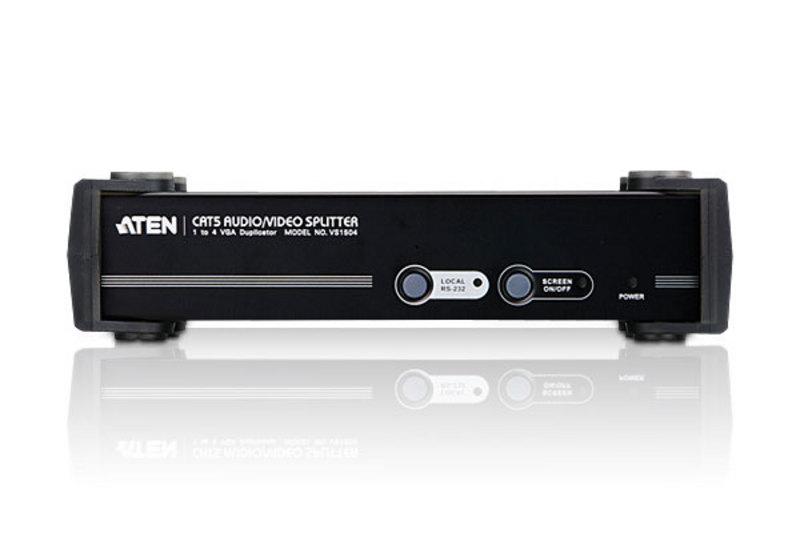

Aten VS1504T 4 way VGA and Audio over CAT5 splitter is designed to connect one source to 4 displays over a long distance. It uses Cat 5e (or higher) cable to extend displays up to 150 m, 450 m when combined with aten receiving devices and supports 1920 x 1200 @ 60Hz resolution. It is audio and serial enabled and provides an RS232 channel for selection (only one RS-232 channel can be selected at a time). This product is no longer available. For a CAT5/6 4-Way VGA & Audio splitter, please click here
The VS1504T Cat 5 Audio/Video Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers *, the VS1504T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 500 m away from the source.
* Suggested Compatible Receiver Units:
VB552 VGA Over Cat 5 Repeater + Audio
VE200R Audio/Video Receiver
Cascadable to three levels, the VS1504T can support thousands of displays when combined in an installation with ATEN repeaters or extenders. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation.
The solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Broadcasting information to public locations
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities
