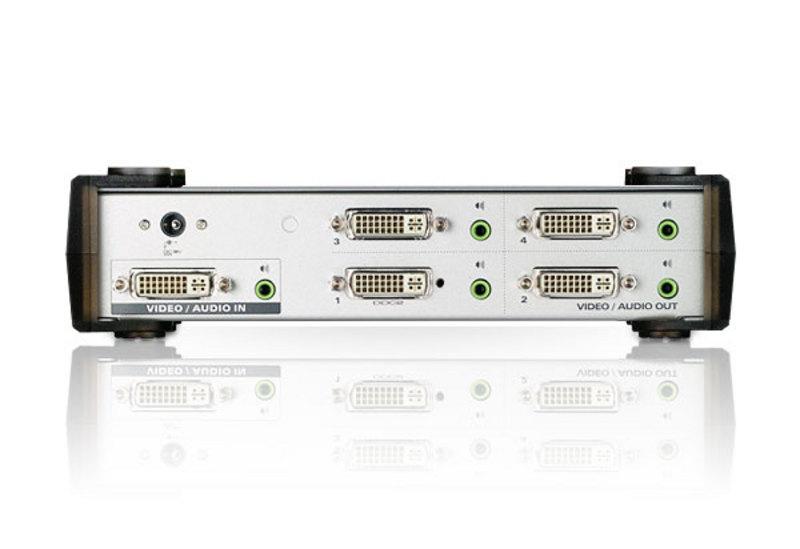

VS164 Aten 4-Port DVI Splitter with Audio

£149.00 inc VAT

Aten VS164 4-port DVI Splitter with audio takes signals from an audio/ video source and replicating them to four audio/video outputs. It is fully compliant with DVI-Digital and DVI-Analog, speaker enabled for audio enjoyment, cascadable to 3 levels – provides up to 8 video signals. Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m. HDCP and DDC, DDC2, DDC2B Compatible (Port 1 only).

Data Sheet

Manual

Description

VS164 Video Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.

VS164 is fFully compliant with DVI-Digital and DVI-Analog, supports DDWG (Digital Display Working Group) standard for DVI compliant monitors and with DDC/CI support – allow color, brightness, contrast and other adjustments via GUI for DDC/CI enabled LCD monitors. VS164 is speaker enabled for audio enjoyment.

  • Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
  • Fully compliant with DVI-Digital and DVI-Analog.
  • Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
  • DDC/CI support – allow color, brightness, contrast and other adjustments via GUI for DDC/CI enabled LCD monitors
  • Speaker enabled for audio enjoyment.
  • Cascadable to 3 levels – provides up to 64 video signals.
  • Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
  • Installs in minutes.
  • Maintains highest single link video resolution (up to 1920 x 1200).
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • HDCP Compliant.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Video Input
Interface 1 x DVI-I Female (White)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interface 4 x DVI-I Female (White)
Impedance 100 Ώ
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDCP Compatible
Max. Resolution Up to 1920 x 1200
Max. Distance Up to 5 m
Audio
Input 1 x Mini Stereo Jack Female (Green)
Output 4 x Mini Stereo Jack Female (Green)
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC, 4.0W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.72 kg
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
  • 1x VS164 4-Port DVI Video Splitter
  • 1x Power Adapter
  • 1x User Instructions
