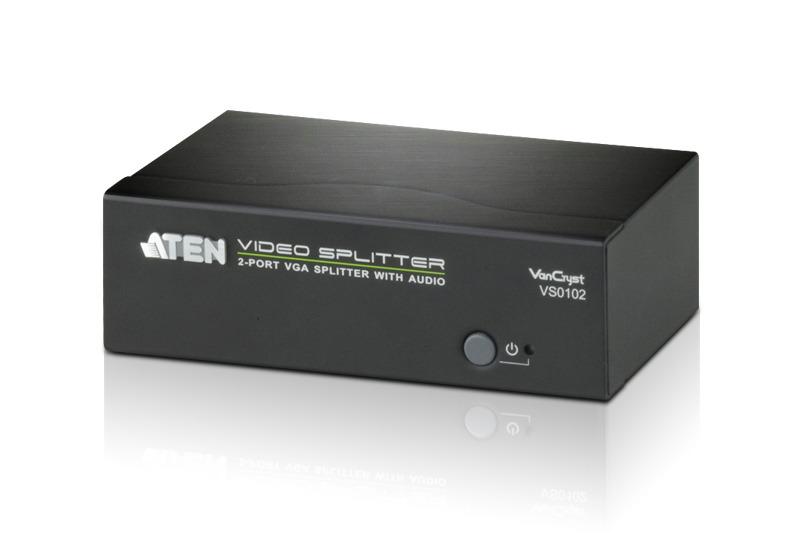

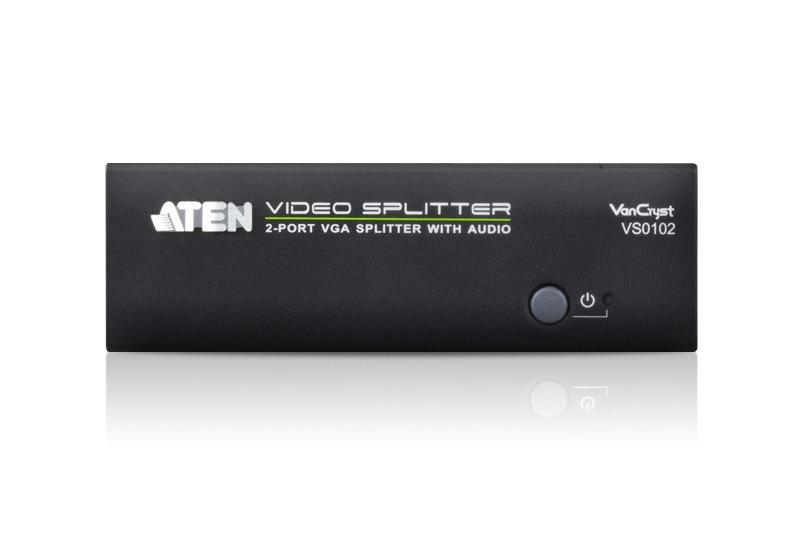

VS0102 Aten 2-Port VGA Splitter with Audio

£75.00 inc VAT

Aten VS0102 2-port VGA splitter with audio allows a single VGA video signal to be distributed to 2 output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440. It features EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display. The splitter supports VGA, SVGA, UXGA, WUXGA, and multisync.

Data Sheet



Description

The ATEN VS0102 2-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to two output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440.
Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

The VS0102 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 8 video displays while sustaining the highest quality possible.

  • One video input to 2 video outputs
  • Superior video quality – up to 1920 x 1440 @ 60Hz
  • Supports up to 450MHz bandwidth for high performance video
  • Long distance transmission – up to 65m *
  • Supports VGA, SVGA, UXGA, WUXGA, and multisync
  • EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
  • Expandable – provides up to 8 video displays
  • Features RS-232 serial port for command controls **
  • RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable
  • Supports stereo audio
  • Plug-and-play – no software installation requiredNote:
    * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
    ** The VS0102 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

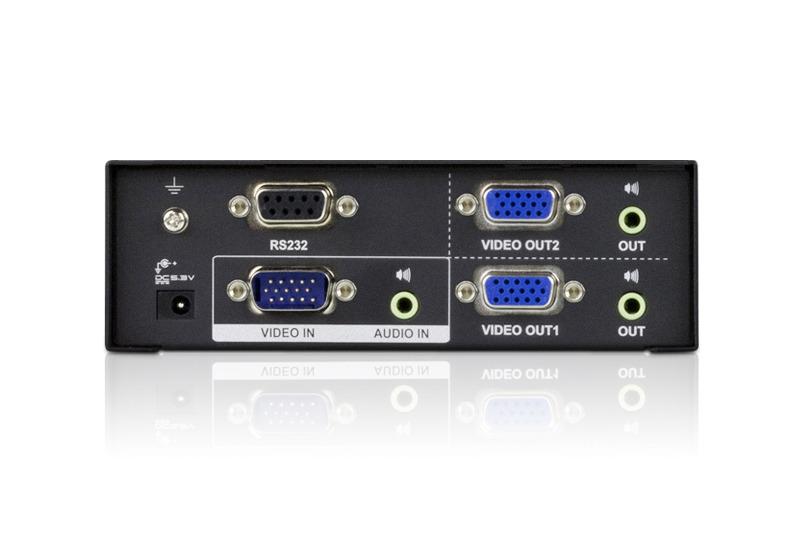

Video Input
Interface 1 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 2 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 450 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 30 m
Audio
Input 1 x Mini Stereo Jack Female (Green)
Output 2 x Mini Stereo Jack Female (Green)
Control
RS-232 1 x DB-9 Female (Black)
EDID Settings EDID Mode: Port 1 / Auto / Default
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC, 0.8W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.46 kg
Dimensions (L x W x H) 13.00 x 7.61 x 4.40 cm

  • 1x 2-Port VGA Splitter with Audio
  • 1x Power Adapter
  • 1x User Instructions
