Description

Control Two DVI Computers and Two HD Computers/Devices from One Dual Display Console

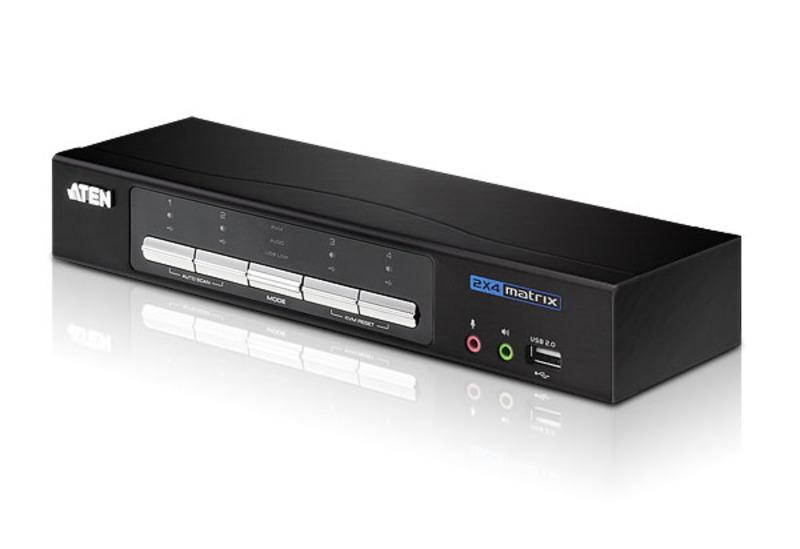

The CM0264 2×4 DVI-HD Audio/Video Matrix KVMP™ Switch Dual Display Console supports one DVI display and one HD display, allowing users to access 4 computers/devices from a single console, consisting of USB keyboard, USB mouse, HD display, and DVI display. As a USB hub, it permits each computer to access connected peripherals on a one-computer-at-a-time.

Control Two DVI Computers and Two HD Computers/Devices from One Dual Display Console
The CM0264 2×4 DVI-HD Audio/Video Matrix KVMP™ Switch Dual Display Console supports one DVI display and one HD display, allowing users to access 4 computers/devices from a single console, consisting of USB keyboard, USB mouse, HD display, and DVI display. As a USB hub, it permits each computer to access connected peripherals on a one-computer-at-a-time basis.

With its unique design and innovative features, the CubiQ™ CM0264 2×4 DVI-HD Audio/Video Matrix KVMP™ Switch provides both style and functionality for the SOHO environment. Allowing you to switch seamlessly between two HD – and two DVI-enabled PCs, and share USB peripherals and high-definition audio from a single dual-display console, the CM0264 is ideal for multimedia applications, and offers the ultimate in space-saving, streamlined KVM technology for the desktop.

  • One Dual Display USB console independently and simultaneously controls two DVI computers, two HD computers or devices, and two additional USB devices
  • Dual Display – simultaneously control one computer on one display and view another source on the other display
  • Graphical User Interface (GUI) for convenient, user-friendly operation
  • Innovative desktop control features include on-screen fi le transfer and copy-paste functionality, and cursor shift function in dual display mode
  • 2-port USB 2.0 hub built in; fully compliant with USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus

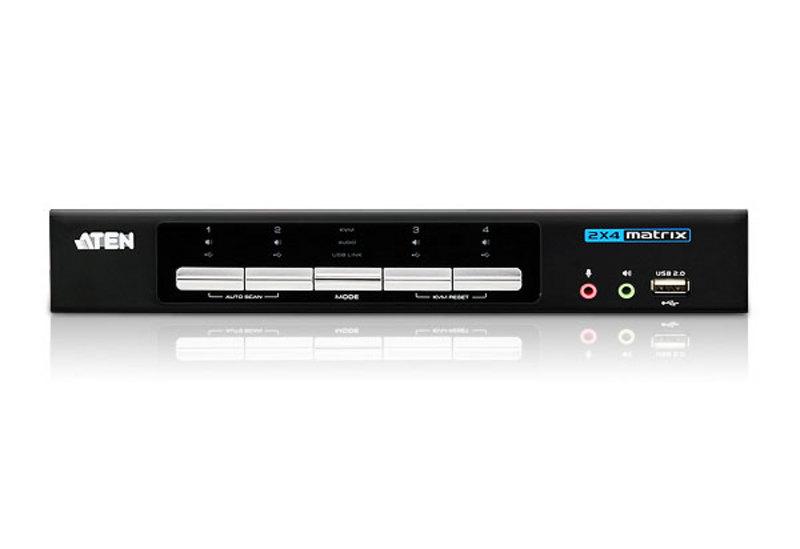

  • Computer selection via front panel pushbuttons, hotkeys, and GUI
  • HDMI compatible; HDCP compatible
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality – up to 1920 x 1200 (DVI Single Link), 1080p (HDMI)
  • Supports widescreen resolutions
  • Multiplatform support – Windows, Linux, and Mac
  • Cursor Shift Function – in dual-display mode, the mouse cursor can move back and forth across both displays, shifting the KVM focus
  • Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection – if one of the computers is powered off, the CM0264 automatically switches to the next powered-on computer
  • Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable* 1. PC keyboard combinations emulate Mac keyboards.
    2. Mac keyboards only work with their own computers
Computer Connections 4
Port Selection Front Panel Pushbuttons; Hotkeys; GUI
Connectors Console Ports Keyboard 1 x USB Type A Female
(Black; rear panel)
Video 1 1 x DVI-I Female (White)
Video 2 1 x HD Female (Black)
Mouse 1 x USB Type A Female (Black; rear panel)
Speaker 2 x Mini Stereo Jack Female
(Green; 1 x front, 1 x rear)
Mic. 2 x Mini Stereo Jack Female
(Pink; 1 x front, 1 x rear)

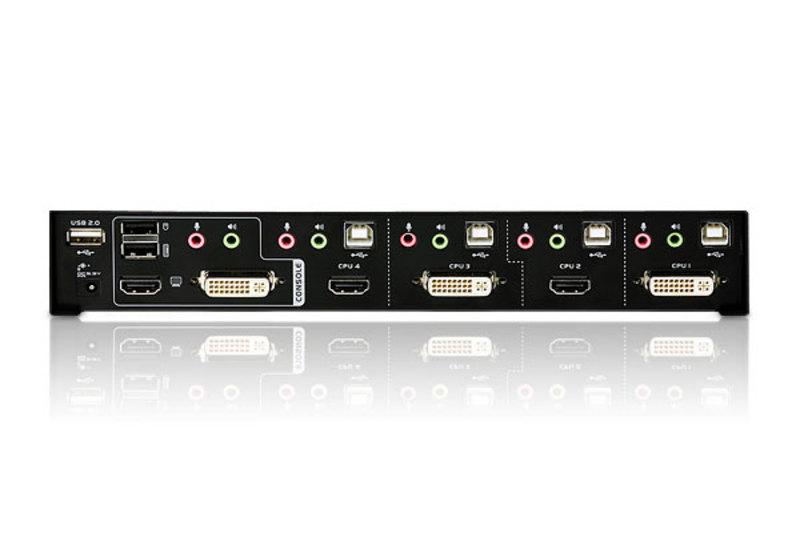

KVM Ports Keyboard/
Mouse
4 x USB Type B Female (White)
Video 2 x HD Female (Black)
2 x DVI-I Female (White)
Speaker 4 x Mini Stereo Jack Female (Green)
Mic. 4 x Mini Stereo Jack Female (Pink)
Power 1 x DC Jack (Black)
USB 2.0 Hub 2 x USB Type A Female
(White; 1 x front panel; 1 x rear panel)
Switches Selected 5 x Pushbutton
LEDs KVM 5 (Orange/Green)
Audio 5 (Green)
USB 5(Green)
Emulation Keyboard/Mouse USB
Video 1080p (HDMI) / 1920 x 1200 (DVI)
Scan Interval 1 – 99 secs. (Default: 5 secs)
Power Consumption DC5.3V, 10W
Environment Operating Temp. 0 – 50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.86 kg
Dimensions
( L x W x H )
26.00×7.73×4.20cm

  • 1x CM0264 2×4 DVI-HD Audio/Video Matrix KVMP™ Switch
  • 2x Custom HD KVM Cable Sets
  • 2x Custom DVI-D KVM Cable Sets
  • 1x Power Adapter
  • 1x USB-to-PS/2 Converter
  • 1x Foot Pad Set (4 pcs)
  • 1x User Instructions
