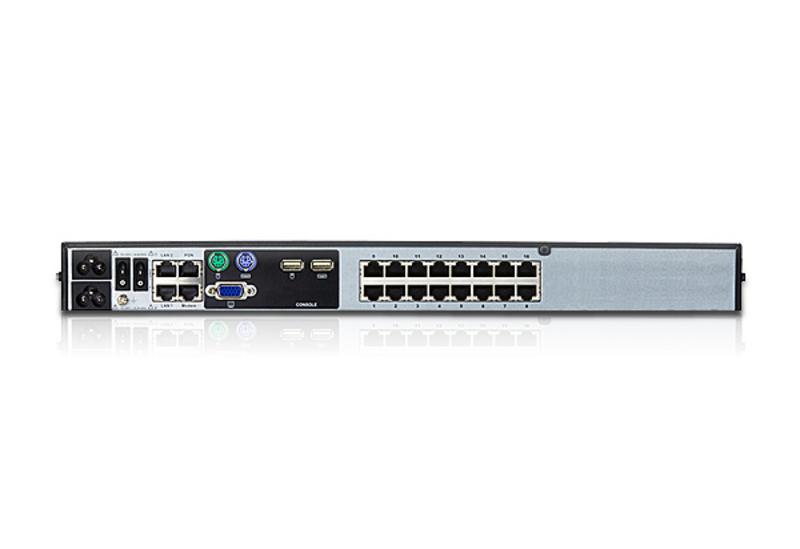

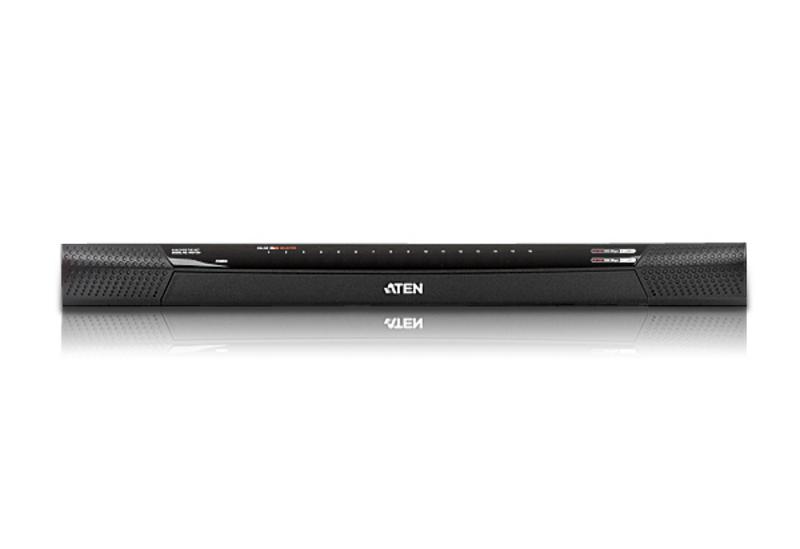

Aten KN4116V 16-port KVM Over IP with Virtual Media support features four IPs /Local access allows simultaneous shared access to one local console and 4 remote. It supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity and multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices. Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server with Dual power supply for redundancy and supports high video resolution – up to 1600 x 1200 @ 60Hz with 24-nit colour depth for remote sessions at up to 50m. Up to 64 user accounts – up to 32 users simultaneously can share the control.
KN4116V is part of Aten´s new generation KVM over IP switches – KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface.
KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.
The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.
Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, Adapter ID and Secure Serial Server Access. The secure access to serial-controlled devices includes network equipment, UNIIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.
With dual on-board NICs and dual power supplies, the KN4116V KVM over IP switch is built for reliability, to ensure 24/7 availability of remote access to all server room computers.
With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.
