AVX1008IP AdderView CATx KVMA Switch 1Local / Remote to 8 Computers

AVX1008IP CATxIP ADDERView KVM Over IP Switch provides 8 computer ports with Local Access via USB Keyboard and mouse combined with KVM over IP Access for LAN/WAN and BIOS level access to all computers with exceptionally high video performance to local and remote users alike, supporting up to 1600 x 1200 resolutions with DDC emulation. It supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces.

Data Sheet

Manual

£906.00 inc VAT

Compare

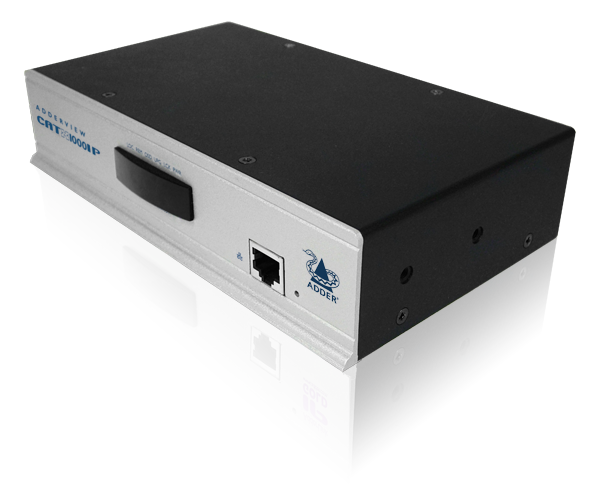

The ADDERView AVX1008IP CATx is a high density, small form factor KVM switch that provides local and remote access for a user who wishes to control up to 8 multi-platform servers using neat and convenient CATx cables.

The AVX1008IP CATx combines USB console support, global IP Access with a full KVM feature set to create a truly modern KVM switching solution that provides high quality video and CD quality audio. A focus on flexibility means the AVX1008IP is equally suited to applications from professional server installations or industrial processes through to office control. The AVX1008IP CATxIP makes full enterprise grade functionality and quality available to everyone in a compact desktop format.

  • USB Keyboard and mouse control
  • Faultless video quality
  • True multi-platform support
  • Easy cascade
  • Optional CD quality audio
  • Options port
  • Global User (IP)
  • Computer Access Modules
  • Rack mount / rack drawers
  • User access control
  • Embedded KVM option

USB keyboard and mouse control

Any USB style keyboard and mouse (PC, Mac or Sun) can be used to control the ADDERView CATxIP 1000 switch. Full keyboard re-mapping is supported to ensure seamless cross platform functionality.

Faultless video quality

The ADDERView CATxIP 1000 provides exceptionally high video performance to local users, supporting up to 1600 x 1200 resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true colour.

True multi-platform support

TheADDERView CATxIP 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation.

Easy cascade

Expand simply by using just CATx cable to link units. The CATxIP 1000 automatically detects cascade connections to support up to 256 computers. Fit 32 performance KVM connections in 1U of rack space.

Optional CD quality audio

ADDERView CATxIP 1000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used.

Options port

Integration with RS232 controlled power switches to provide a complete hard reboot function
Flash upgrade
Sync with other CATxIP 1000 switches for multi-video applications
Upload/download CATxIP 1000 user and host information
Remote control

Global User (IP)

Employing enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) Use Java web browser or Real VNC client software that, unlike HTTPS web browsers, is designed specifically for secure, high performance KVM over IP applications. Up to 1600 x 1200 resolutions with scalable windows.

Computer Access Modules

Flash upgradeable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio.

Rack mount / rack drawers

One or two CATxIP 1000 switches can be mounted in 1U of rack height giving a maximum of 32 ports per 1U. The small size also makes the units ideal for mounting behind KVM rack drawers.

User access control

Up to 16 different user profiles can be created and access rights for each user can be defined.

Embedded KVM option

CATxIP 1000 technology is available without a casing for embedding within other equipment such as rack drawers and industrial equipment through an interconnet header.

Available with the following connectivity options:

Video modes

Support for standard PC, Sun and Mac video modes up to a resolution of 1600 x 1200 @ 60Hz. DDC emulation supported via connected Computer Access Modules (CAMs).

Hardware compatibility

Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).

OS compatibility

Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

Local console

Video: HDD15 socket
Keyboard/Mouse: USB type A sockets
Audio: 3.5mm stereo jack

Connections

Local console connections as stated above.
CATx computer connections: all RJ45 style
10/100 auto-sensing Ethernet network port: RJ45
Power connection: 2.5mm DC jack (5V DC, 2.5A)
RS232 triggered power switching and syncing: DB9 plug

Physical design

Compact 1U high metal case construction suited for rack mounting (rack mount kits available).
Width: 198mm/7.92″, Height: 44mm/1.76″, Depth: 120mm/4.8″
Weight: 0.77kg/1.70lbs

Power supply

Mains adaptor with IEC style power lead (included).
Input: 100-240VAC 0.5A 50-60Hz
Output: 5VDC 2.5A

Operating temperature

0 – 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Order Codes

AVX1008IP-XX: 8 port version
AVX1016IP-XX: 16 port version

XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia

Additional accessories

Computer Access Modules (CAM):

(One required per connected computer.)
CATX-PS2: PS/2 style, connectors: Analog video, PS/2 style keyboard and PS/2 style mouse.
CATX-PS2A: PS/2 style with Audio, connectors: Analog video, PS/2 style keyboard and mouse, 3.5 mm audio jack.

CATX-USB: USB, connectors: Analog video, USB keyboard/mouse.

CATX-USBA: USB with Audio, connectors: Analog video, USB keyboard/mouse and 3.5 mm audio jack.

CATX-SUNA: SUN with Audio, connectors: Analog video, Sun keyboard/mouse and 3.5 mm audio jack.

RMK4S: Single rack brackets

RMK4D:  Dual rack brackets

CAB-9M/9F-2M: Serial option cable
