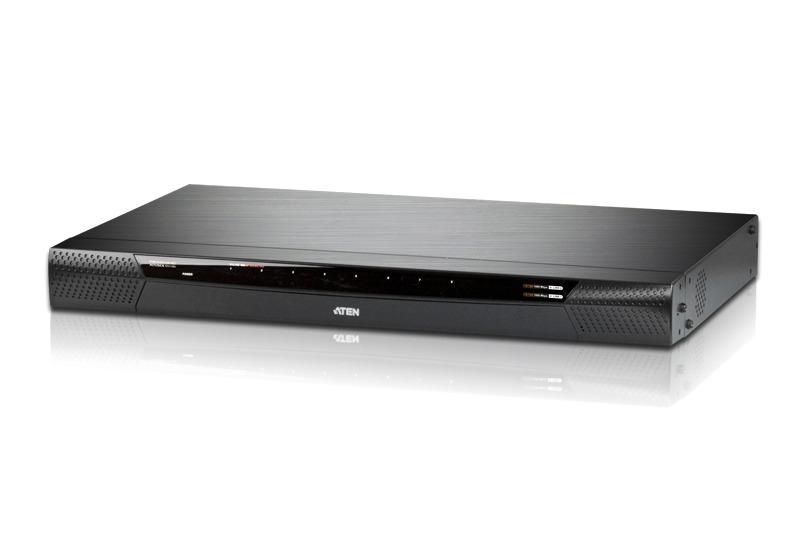

KN1108V Aten 8 Port KVM over IP Switch

£1,495.00 inc VAT

Aten KN1108V 8-port KVM Over IP with Virtual Media support features 1 IP /Local access allows simultaneous shared access to one local console and one remote. It supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity and multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices. Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server with Dual power supply for redundancy and supports high video resolution – up to 1600 x 1200 @ 60Hz(40m with KVM Adapter Cable KA7000 series) /1920 x 1200* @ 60Hz(30m) for local and remote sessions. It also features laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation,

Data Sheet

Manual

Description

KN1108V is part of Aten´s new generation KVM over IP switches – KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.
The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.

Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, Adapter ID and Secure Serial Server Access. The secure access to serial-controlled devices includes network equipment, UNIIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.

With dual on-board NICs and dual power supplies, the KN1108V KVM over IP switch is built for reliability, to ensure 24/7 availability of remote access to all server room computers.

With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair)  – ensuring the highest availability of data center services possible.

  • KN1108V Hardware
  • High port density – RJ-45 connectors for up to 8 ports in a 1U housing
  • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
  • Simultaneously share access to one local console and one remote KVM over IP switches
  • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides PS/2 and USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
  • Dual Power Supply
  • High video resolution – up to 1600 x 1200 @ 60Hz(40m with KVM Adapter Cable KA7000 series) /1920 x 1200* @ 60Hz(30m) for local and remote sessions
  • Monitor and control up to 8 computers on a single level, or control up to 128 computers in a two-level cascade **.* 1920 x 1200 (Reduced blanking) only supported by KA7175, KA7176, and KA7177
    ** Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, andKH1516A
  • Management
  • Up to 64 user accounts – up to 32 users simultaneously share the control
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Firmware upgradeable
  • Out-of-Band Access-Modem dial-in/dial out/dial back support
  • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports,without having to re-configure the adapters and switches
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Integration with ALTUSEN CC2000 Management software
  • Power Association enables the switch´s KVM ports to be associated with an ATEN/ALTUSEN´S PDUs power outlets for remote power management of the servers from the switch´s interface
  • Power Over the NET™ integration for remote power control, plus support for 3rd party power distribution units (PDUs)
  • Manage browser access methods (Browser, http, https)
  • IPv6 capable
Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection Pushbutton, GUI, Hotkey

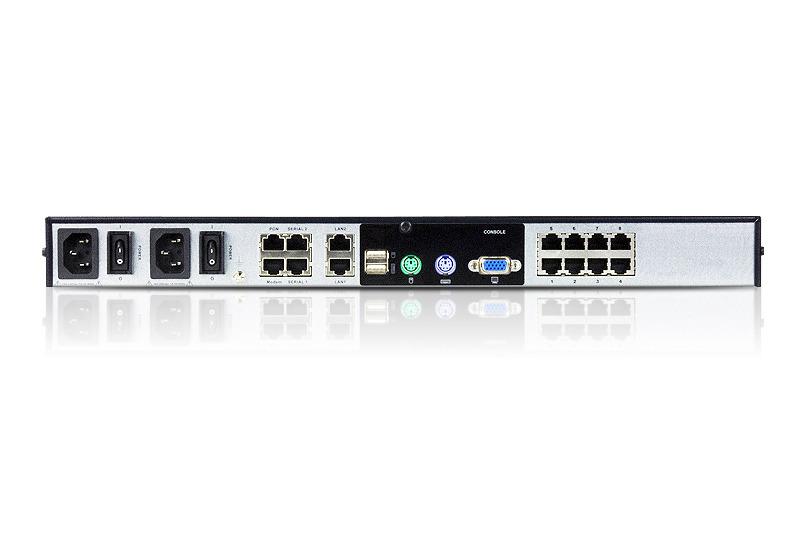

Connectors
Console Ports 2 x USB Type A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 8 x RJ-45 Female
Power 2 x 3-prong AC socket
LAN Ports 2 x RJ-45 Female
PON 1 x RJ-45 Female
Modem 1 x RJ-45 Female
Serial 2 x RJ-45 Female
USB Port 3 x USB Type A Female (White)
Laptop USB Console (LUC) Port 1 x USB Mini Type B Female (Black)
Audio 2 x Audio Jack Female
Switches
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker
Port Selection 2 x Pushbutton
LEDs
Online 8 (Green)
Power 1 (Blue)
Link 10 / 100 / 1000 Mbps 1 (Green / Green / Orange)
Emulation
Keyboard / Mouse PS/2 / USB (PC, Mac, Sun) / Serial
Video
Local 1600 x 1200 @ 60Hz (40m with KVM Adapter Cable KA7000 series);

1920 x 1200*@60 Hz (30m) DDC2B

Remote 1600 x 1200 @ 60Hz (40m with KVM Adapter Cable KA7000 series);

1920 x 1200*@60 Hz (30m) DDC2B

Scan Interval 1-255 Seconds
I/P Rating 100-240VAC; 50-60Hz; 1.0A
Power Consumption
Single Power 120V/15W; 230V/16W
Dual Power 120V/17W; 230V/17W
Environmental
Operating Temperature 0 – 50˚C
Storage Temperature -20 – 60˚C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.57 kg
Dimensions (L x W x H) 43.84 x 28.78 x 4.40 cm
  • 1x KN1108v KVM over IP Switch
  • 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
  • 2x Power Cords
  • 1x Laptop USB Console Cable
  • 1x Rack Mount Kit
  • 1x Foot Pad Set (4 pcs.)
  • 1x User Instructions
