AVX5016IP AdderView CATx KVMA Switch 1 Local 4 IPs to 16 Computers

£1,314.00 inc VAT

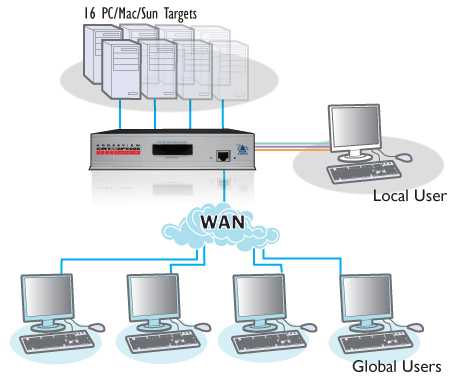

AdderView AVX5016IP CATX KVMA 1 local, 4 simultaneous IPs to 16 computers offers direct connection for 1 local user to connect straight into the switch and allows 4 simultaneous global users to connect via IP to any of the 16 connected devices. It features authenticate users against your existing LDAP infrastructure and this feature can be enabled and disabled, employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times as well as integrated RS232 gives you the ability to control other external devices such as power management devices.

Data Sheet

Manual

Description

The ADDERView AVX5016IP is the culmination of ADDER’s KVM over IP expertise to date. This new device offers 4 non blocking simultaneous IP connections together with a local port (5 separate users), and allows the user to control 16 separate devices. The AVX5016IP is very small and compact enabling you to fit two units side by side to support 32 computers and 10 sessions in just 1U of rack space.

Using ADDER’s CAM modules with the AVX5016IP, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.


The AVX5016IP can also be used as a serial console (sometime known as a terminal server) simply by attaching the CATX-CONSOLE computer access module. This gives you out of band access to target command line interface (CLI) as well as console access to network switches. What makes the AVX5016 really unique is that you can mix as many of the 16 ports for use with either serial console or keyboard-video-mouse. This makes the AVX5016IP one of the most flexible KVM over IP products on the market today.

  • $ Simultaneous IP users
  • Local user support
  • LDAP integration
  • RS232 control
  • Ecopulse circuitry
  • AES128 encryption and and RSA2048 authentication
  • Configuration: The AVX5016 IP allows you to configure 16 separate users internally with unique access privileges all of which are stored within the switch
  • Open architecture
  • Adder.net

Video modes

Support for standard PC, Sun and Mac video modes up to a resolution of 1920 x 1200 @ 60Hz (including Full HD – 1920 x 1080). DDC emulation supported via connected Computer Access Modules (CAMs).
Product includes an in-built DDC EDID configurator that enables you to control the resolutions that you wish to support.

Hardware compatibility

Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).

O/S compatibility

Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

Local console

Video: HDD15 socket
Keyboard/Mouse: USB type A sockets

Connections

Local console connections as stated above.
CATx computer connections: all RJ45 style.
10/100 auto-sensing Ethernet network port: RJ45.
Power connection: 2.5mm DC jack (5V DC, 2.5A).
RS232 triggered power switching and syncing: DB9 plug

Physical design

Compact 1U high metal case construction suited for rack mounting (rack mount kits available).
Width: 198mm/7.92″, Height: 44mm/1.76″, Depth: 120mm/4.8″.
Weight: 0.77kg/1.70lbs.

Power supply

Mains adaptor with IEC style power lead (included).
Input: 100-240VAC 0.5A 50-60Hz
Output: 5VDC 2.5A

Operating temperature

0° C – 40° C (32° F to 104° F)

Approvals

CE, FCC

Order codes

CATx IP 16 port version: AVX5016IP-XX

XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia

4 simultaneous IP users

Allows 4 simultaneous global users to connect via IP to any of the 16 connected devices.

Local user support

Direct connection for 1 local user to connect straight into the switch.

LDAP integration

Authenticate users against your existing LDAP infrastructure. This feature can be enabled and disabled.

RS232 control

Integrated RS232 gives you the ability to control other external devices such as power management devices.

Ecopulse circuitry

Ecopulse powers down unnecesary circuits when not required to reduce power requirements. Over the life of the product this will save significant power resources.

Encryption and Authentication

This enterprise grade KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.

Configuration

The AVX5016 IP allows you to configure 16 separate users internally with unique access privileges all of which are stored within the switch.

Open Arhitecture

ADDER’s continuous improvement policy further ensures your system against future hardware changes – ADDER offers free firmware updates for the life of the product. Furthermore, ADDER’s open architecture design philosophy will not tie you in to specific manufacturer’s equipment.

ADDER.net

Network management software, automating the task of managing your network control hardware.
