HDMI-EX200 HDMI 100m Over Coax Extender with IR

The HDMI-EX200 allows you to extend an HDMI and two-way IR signals over a single 75ohms coaxial cable up to 300m. The HDMO-EX200 carries a full HD 1080p signal plus PCM 48kHz audio up to 7.1ch up to a distance of 100m. The receiver can be daisy-chained to cover unlimited distances.

HDMI-EX200 User Manual V1.0 (1)

Description

This HDMI Extender HDMO-EX200 allows you to extend an HDMI signal up to 300m using only a single 75ohm coaxial cable. Use existing coaxial cables to carry both HDMI and two-way IR signals so you can use a remote control at either end of the cable to control equipment at the opposite end. Connect sources such as DVD or Blu-Ray to the transmitter using HDMI cable of up to 5m in length then connect display equipment such as a TV or projector to the receiver using standard HDMI cable of up to 5m in length. A single coaxial cable is then used to connect the transmitter to the receiver.

This HDMI Extender HDMO-EX200 carries a full HD 1080p HDMI signal plus PCM 48kHz audio up to 7.1ch up to a distance of 100m. A switch on the side of the transmitter allows you to select the appropriate EDID ranging from 1080i with 2 channel audio up to 1080p with 7.1 channel audio. The kit is supplied with power supplies, IR leads, a transmitter and a receiver.The devices carry full size HDMI sockets, BNC sockets and 3.5mm jack sockets for the infra-red transmitters and receivers.

Please note that this extender requires a DC path through the coaxial cable, so connectors must be soldered or crimped to make a good connection.

HDMI-EX200 Features:

  • Extend HDMI over standard coaxial cable
  • HDCP compliant
  • Transmit 1080p over 100m
  • Transmit SD HDMI over 300m
  • Full 2 way IR control at each end
  • Additional receivers available

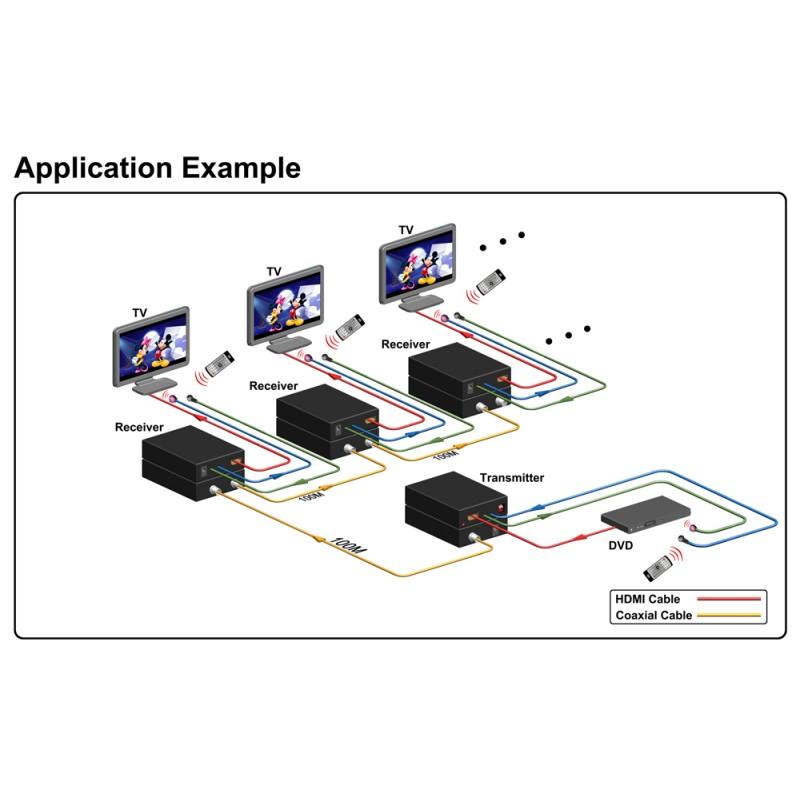

  • Receivers can be daisy-chained to cover unlimited distances
  • Complete with 2 UK power supplies and IR components
  • Transmitter Input – one full size HDMI socket, one 3.5mm IR input
  • Transmitter Output – one BNC socket for coaxial cable, one 3.5mm IR output
  • Receiver Input – one BNC socket for coaxial cable, one 3.5mm IR input
  • Receiver Output – one full size HDMI socket, one BNC socket for loop through to additional receivers, one 3.5mm IR output
  • 3D compatible
  • Input/Output Resolutions
    • 480i
    • 576i
    • 720p@50/59.94/60
    • 1080i@50/59.94/60
    • 1080p@23.98/24/25/29.97/30/50/59.94/60
  • EDID options
    • 1080p, 2Ch audio PCM 48kHz
    • 1080p, 5.1Ch audio PCM 48kHz
    • 1080p, 7.1Ch audio PCM 48kHz
    • 1080i, 2Ch audio PCM 48kHz
  • Power supplies DC 5V (supplied with UK plugs)
  • Power indicator
  • Lock indicator
  • Size each 100mm x  105mm x 25mm
  • Weight each 280g
  • Case Material – black painted metal
  • 12 Month Warranty
  • HDMI to coaxial Transmitter
  • HDMI to coaxial Receiver
  • 2 IR Receivers
  • 2 IR Transmitters
  • 2 UK power supplies
  • User Manual
