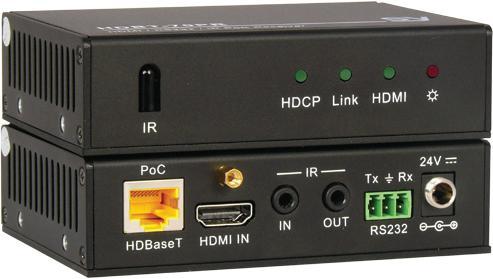

SY-HDBT-70-PSET S Y Electronics HDMI RS232 70m CATx Extender

SY-HDBT-70-PSET is an HDBT Lite twisted pair for HDMI, IR&RS232 at 70m transmission with Power over Cable (PoC) support. Replaced with SY-HDB-70-SLIM-SETT

Description

SY-HDBT-70-PSET is an HDBT Lite twisted pair for HDMI, IR&RS232 at 70m transmission with Power over Cable (PoC) support

SY-HDBT-70-PSET is an HDBT Lite twisted pair for HDMI, IR&RS232 at 70m transmission with Power over Cable (PoC) support. It includes transmitter (SY-HDBT-70P-T ) and receiver (SY-HDBT-70P-R), supports HDMI 1.4 and HDCP compliant. It’s a high performance extender for resolution up to 4K x 2K.

  • HDBT Lite technology with Valens chipset, uncompressed signal transmission
  • Support HDMI 1.4, 4K x 2K, 3D, 1080P
  • 60m transmission over CAT 5E/6/7 cable for HDMI, bi-directional IR & RS232
  • PoC technology, power supply from Tx to Rx or Rx to Tx
  • HDCP compliant, EDID & CEC pass through
  • LED shows the working status for inspection
  • Locking power connector
  • Aluminum case with separate mounting ears, flexible for installation.
  • Input  : 1 HDMI ,1 RS232, 1 IR
  • Output : 1 HDBT, 1 IR
  • Input : 1 HDBT, 1 IR
  • Output  : 1 HDMI,1 RS232 & 1 IR
  • Transmission Mode : HDBT Lite with Power over Cable
  • Resolution : 1080p@60Hz@48 b/pixels/3D/4Kx2K)
  • Gain : 0dB ~ 10dB@100MHz
  • Transmission Distance : Max distance 70m @1080P
  • Differential Phase Error : ±10° @ 135MHz
  • Bandwidth : 10.2Gbps
  • Return Lost : -30dB@5KHz
  • HDMI Standard : Support HDMI1.4 and HDCP
  • Min/Max Level : 0.3V ~ 1.45Vp-p
  • Power Source : 24V DC 10W
  • Temperature : -20 ~ +60
  • Humidity : 10% ~ 90%
  • Chassis : DimensionW77 x H30 x D134mm
  • Weight : 0.5Kg.

Warranty

2 Years parts and labour
