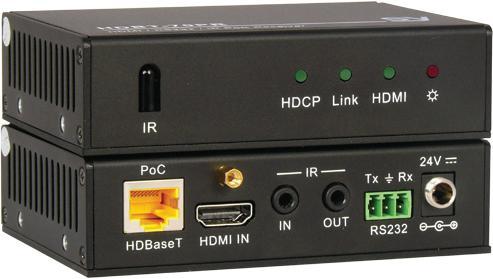

SY-HDBT-ECO70-SET S Y Electronics HDMI and IR HDBaseT Extender Set with PoC

The HDBT-eco70-Set is an HDBaseT extender for HDMI and IR transmission up to 70m with one-way PoC from the transmitter end. It includes the transmitter and receiver, supports HDMI1.4, 3D, 4K and is HDCP compliant. No longer available. Please see SY-HDBT-70-SLIM-SET

Description

The SY-HDBT-eco70-Set is an HDBaseT extender for HDMI and IR transmission up to 70m with one-way PoC from the transmitter end

The HDBT-eco70-Set is an HDBaseT extender for HDMI and IR transmission up to 70m with one-way PoC from the transmitter end. It includes the transmitter and receiver, supports HDMI1.4, 3D, 4K and is HDCP compliant.

HDBaseT technology
4K x 2K
70m transmission for HDMI and bi-directional IR
Power-over-Cable (PoC) from the tranmitter
CEC pass through and HDCP compatible
Thermal management design
Locking power supply connector

Transmitter
Input: 1 HDMI, IR
Ouput: 1 HDBaseT, IR
Receiver
Input: 1 HDBaseT, IR,
Ouput: 1 HDMI, RS232, 2 Ethernet, IR
Transmission Mode: HDBaseT
Resolution: 800 x 600 to 1920 x 1200, 3D & 4K x 2K
Gain: 0dB to 10dB@100MHz
Transmission Distance: 70m @1080P, 40m @4K
Differential Phasic Error: ±10°@135MHz-100m
Bandwidth: 10.2Gbit/s
Return Lost: <-30dB@5KHz
HDMI Standard: HDMI 1.4 & HDCP 1.4
Level: 0.3V to 1.45Vp-p @ 75ohm
Power Supply: 24V DC 9.6W
Temperature: -20 to 60C
Humidity: 10% to 90%
Chassis Dimension: W152 x H28 x D84



Warranty

2 years parts and labour
