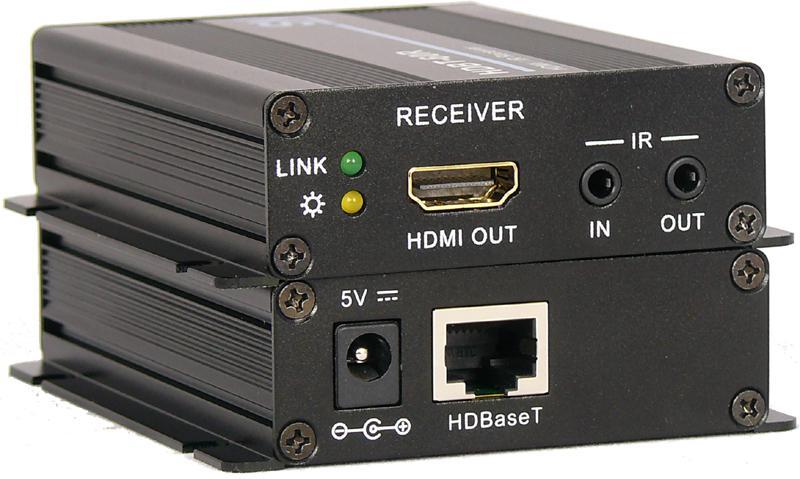

SY-HDBT-60-SET S Y Electronics HDMI 60m CATx with 2 IR

The SY-HDBT60 Extender Set features HDBT Technology which is able to delivery uncompressed Hi-definition Video with embedded Audio up to 60m. No longer available. Please see SY-HDBT-70-SLIM-SET

Description

The SY-HDBT-60-SET Extender Set features HDBT Technology which is able to deliver uncompressed Hi-definition Video with embedded Audio up to 60m. This model supports bi-directional IR and HDMI 1.4 with 3D and resolutions up to 1080p. DVI-D computer video can also be transmitted with a DVI-to-HDMI cable.

The SY-HDBT60 Extender Set features HDBT Technology which is able to delivery uncompressed Hi-definition Video with embedded Audio up to 60m. This model supports bi-directional IR and HDMI 1.4 with 3D and resolutions up to 1080p. DVI-D computer video can also be transmitted with a DVI-to-HDMI cable.

• Support HDMI signal extension up to 60 meters
• Support HDTV resolution up to 1080p
• Support PCM 2 Ch audio, 5.1, 7.1, DTS-HD, Dolby audio format
• Support 3D function
• Compliant with HDCP 2.0 standard
• Support bi-directional IR function

Resolutions  800X600, 1024X768, 1280X1024, 1366X768, 1920X1080, 480i, 720p, 1080i, 1080p and 3D.
Color Depth  Deep Color 36/30/24 Bit at 1080p and 3D
Audio Format  Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
IR Range  38kHz, 56kHz
Video Bandwidth  10.2Gbps
Input Video Signal  1.2 Volts P-P
Input DDC Signal  5 Volts(TTL)

MECHANICAL
Transmitter –
Dimensions (H-W-D)   25 X 80 X 93mm
Weight  120g
Receiver –
Dimensions (H-W-D)  25 X 80 X 93mm
Weight  120g.

Manual

Application



WARRANTY
Warranty 2 Year RTB Parts and Labor. 3rd Year with Online registration
