CX-0S-AV-R2 S Y Electronics CATx 2-Way VGA and Audio Receiver

CatX AV receivers provide a flexible solution for outputting VGA video + Audio over Cat5/6 UTP cable up to  150m.

Description

The CatX AV Rx2 receiver outputs two audio and VGA signals to any VGA display device at distances of up to 150m. The maximum resolution of this CatX Cat5e receiver is 2048 x 1536 (40m max on Cat5e). The CatX AV Rx2 provides a sharp high quality video up to 150m, using low cost Cat5e cabling.

The CatX AV Rx2 receiver outputs two audio and VGA signals to any VGA display device at distances of up to 150m. The maximum resolution of this CatX Cat5e receiver is 2048 x 1536 (40m max on Cat5e). The CatX AV Rx2 provides a sharp high quality video up to 150m, using low cost Cat5e cabling.

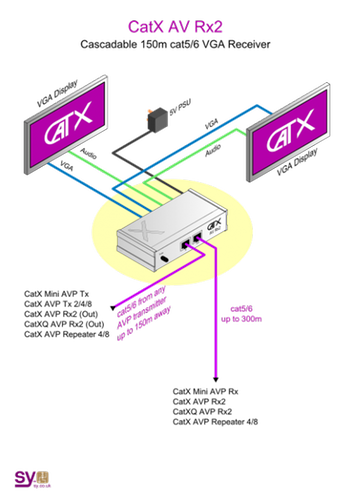

Each CatX AV Rx2 has a UTP output that allows it to daisy chain to another CatX AV Rx2 receiver. Multiple receivers can connect in this way to achieve distances up to 1,000m. These units can also be daisy chained with CatXQ AV Rx2, achieving much longer distances of up to 2,000m in a chain.

An external power supply is required for the CatX AV Rx2, consuming less than 0.25W per output.

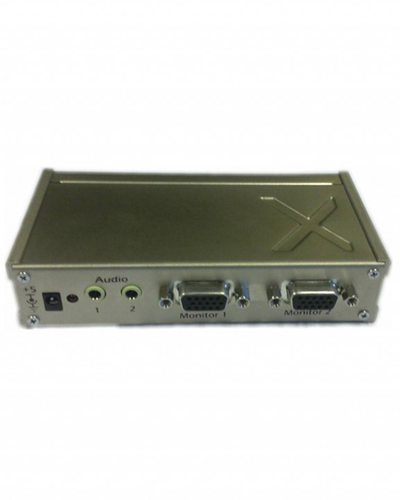

  • Ouputs : 2x HD15 (female), 2x 3.5mm stereo audio jack socket, 1x RJ45 UTP connector
  • Inputs : 1x RJ45 UPT connector, 1x 1.3mm DC socket
  • Distance control : continuous control for optimised display quality up to 150m
  • Video levels : RGB: 0.7V into 75R, HV: TTL compatible
  • Video format : VGA – UXGA compatible; 1080p compatible, RGBHV, RGSB, YUV, Y/C, CVBS formats supported. Separate or composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
  • Resolution vs distance over Cat5e : 1024×768 & 1280×1024 (PC) or 1280x720p & 1368x720p (HDTV) @ 150m; 1600×1200 (PC) or 1920x1080p (HDTV) @ 100m; 2048×1536 (PC) @ 40m
  • Dimensions 120mm [W] x 60mm [D] x 28mm [H]
  • Net Weight 240g
  • Gross Weight 500g

Warranty

2 years parts and labour.
