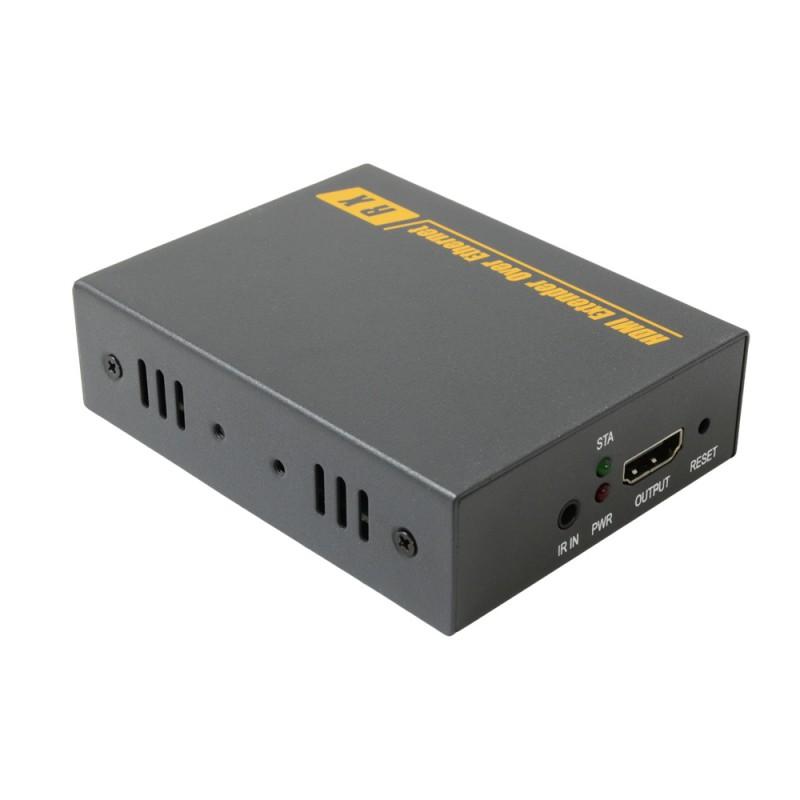

HDMI-EX120R HDMI Over TCP-IP Cat5e Cat6 120m Receiver with IR

Out of stock

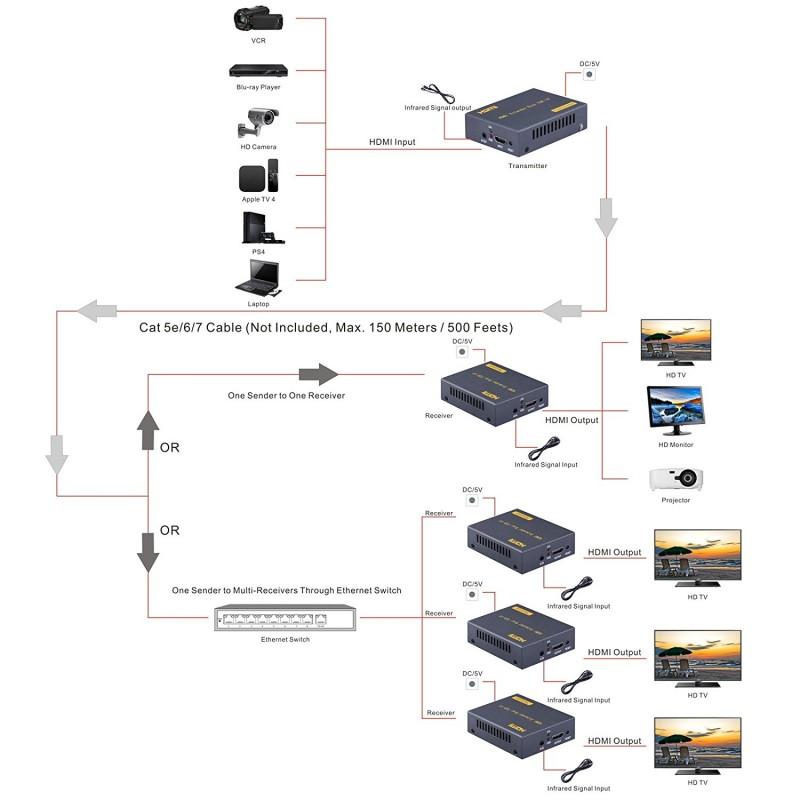

The HDMI-EX120R is an HDMI over CAT5e/CAT6 TCP – IP up to 120m receiver can be used in a one-to-many configuration. In one-to-many configuration, the extender will need to be used in conjunction with a simple network switch and up to 255 receivers can be used in this configuration. The HDMI-EX120R supports a resolution up yo 1920 x 1080 @ 60Hz and IR control of the kit is possible from the display end by using the IR receiver and transmitter provided in the package.



The HDMI-EX120R is to be used with the 120m TCP/IP HDMI extender kit HDMI-EX120. This additional receiver and an ethernet switch allows you to add more displays to the system – one for each display up to a maximum of 255 extra receivers.

Resolution of up to 1920 x 1080 @ 60Hz is supported with this kit and IR control of the source is possible from any display using the IR receiver provided.

The system is plug and play, there are no adjustments to make and no switches to set. Compliant with HDMI 1.3 and HDCP 1.2. The receiver is supplied with a 3-pin UK power supply.

Please note that the Cat5e/6 cable must be terminated using the industry standards of T568A or T568B.

HDMI-EX120 Features:

  • Extend HDMI up to 120m over Cat5e/6 cable
  • Extends full 1080p
  • Can be used 1:1 or 1:many (via ethernet switch)
  • IR control of source
  • UK power supplies included
  • Plug and play

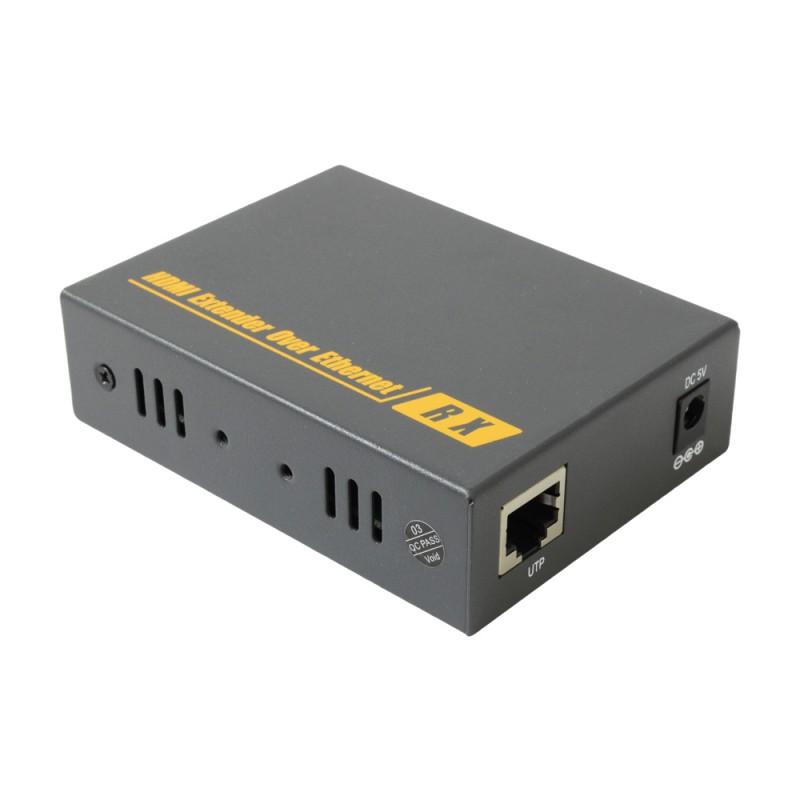

  • Input – RJ45 socket
  • Output – HDMI socket
  • Input Resolutions
    • 480i @ 60Hz
    • 480p @ 60Hz
    • 576i @ 50Hz
    • 576p @ 60Hz
    • 720p @ 50/60Hz
    • 1080i @ 50/60Hz
    • 1080p @ 50/60Hz
  • Power suppy DC 5V (supplied with UK plug)
  • Status indicator confirms video connection
  • Power indicator confirms power is connected
  • Metal case
  • Size 100mm x 60mm x 2.5mm
  • Weight 173g
  • 12 Month Warranty

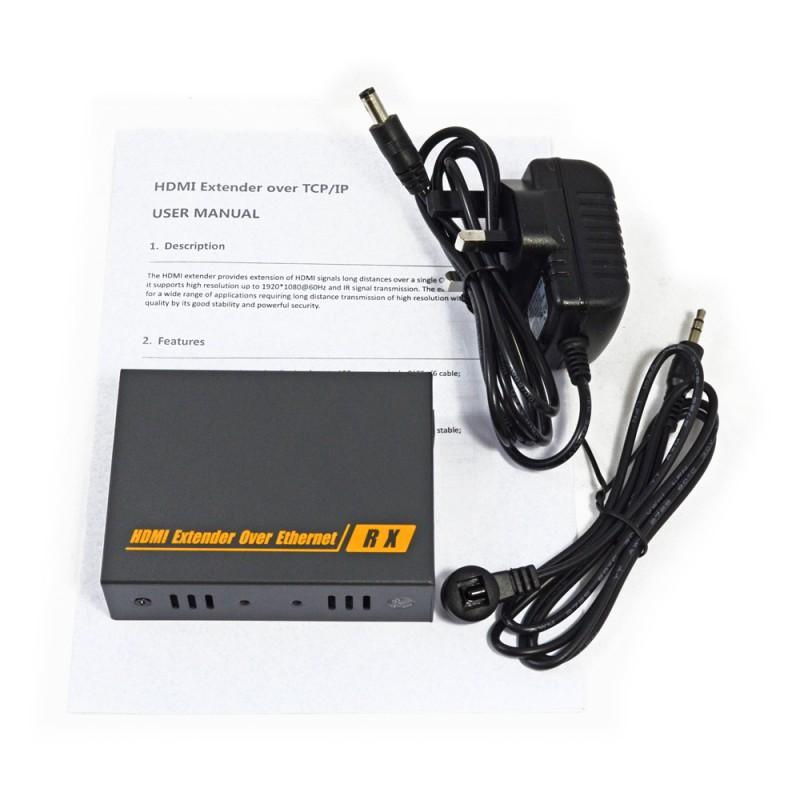

  • One Cat5e/Cat6 to HDMI receiver
  • IR receiver
  • UK power supply
  • User Manual
