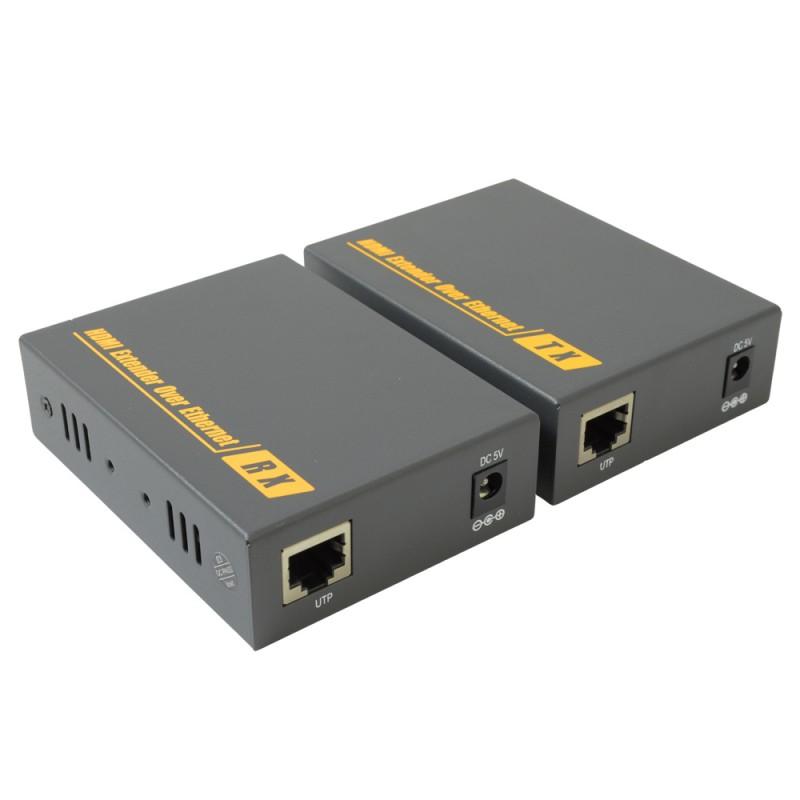

HDMI-EX120 HDMI Over TCP-IP Cat5e Cat6 120m Extender with IR

Out of stock

The HDMI-EX120 is an HDMI over CAT5e/CAT6 TCP – IP up to 120m extender can be used in one-to-one and one-to-many configuration. In one-to-many configuration, the extender will need to be used in conjunction with a simple network switch and up to 255 receivers can be used in this configuration. The HDMI-EX120 supports a resolution up yo 1920 x 1080 @ 60Hz and IR control of the kit is possible from the display end by using the IR receiver and transmitter provided in the package.



The HDMI-EX120  extends HDMI for distances of up to 120m over Cat5e or Cat6 with this TCP-IP Extender. This system can be used in a one to one configuration, or additional receivers can be used in conjunction with simple network switches to create a one-to-many configuration with up to 255 receivers.

Resolution of up to 1920 x 1080 @ 60Hz is supported with this kit and IR control of the source is possible from the display end using the IR receiver and transmitters provided. So you can control your DVD player, Blu-Ray player or satellite receiver while watching your TV.

The system is plug and play, there are no adjustments to make and no switches to set. Compliant with HDMI 1.3 and HDCP 1.2. The kit is supplied with two 3-pin UK power supplies, one for each transmitter and receiver.

Please note that the Cat5e/6 cable must be terminated using the industry standards of T568A or T568B.

HDMI-EX120 Features:

  • Extend HDMI up to 120m over Cat5e/6 cable
  • Extends full 1080p
  • Can be used 1:1 or 1:many (via ethernet switch)
  • IR control of source
  • UK power supplies included
  • Plug and play
  • Input – HDMI socket
  • Output – HDMI socket
  • Input Resolutions
    • 480i @ 60Hz
    • 480p @ 60Hz
    • 576i @ 50Hz
    • 576p @ 60Hz
    • 720p @ 50/60Hz
    • 1080i @ 50/60Hz
    • 1080p @ 50/60Hz
  • Power supplies DC 5V (supplied with UK plug)
  • Status indicators confirm video connection
  • Power indicators confirm power is connected
  • Metal case
  • Size 100mm x 60mm x 2.5mm
  • Weight 173 and 174g
  • 12 Month Warranty

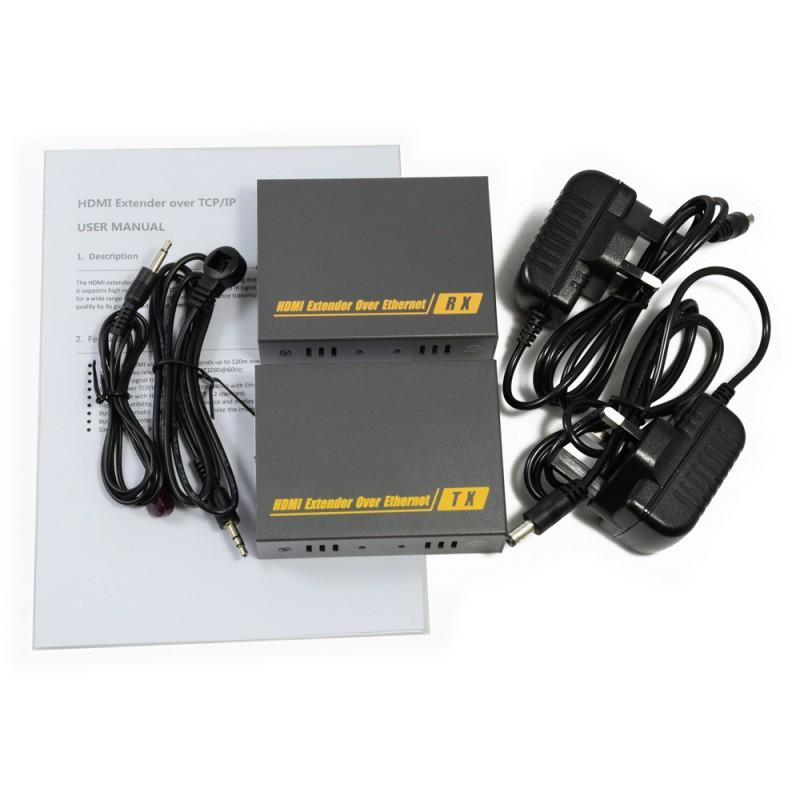

  • HDMI to Cat5e/Cat6 transmitter
  • Cat5e/Cat6 to HDMI receiver
  • IR transmitter and receiver
  • UK power supplies
  • User Manual
