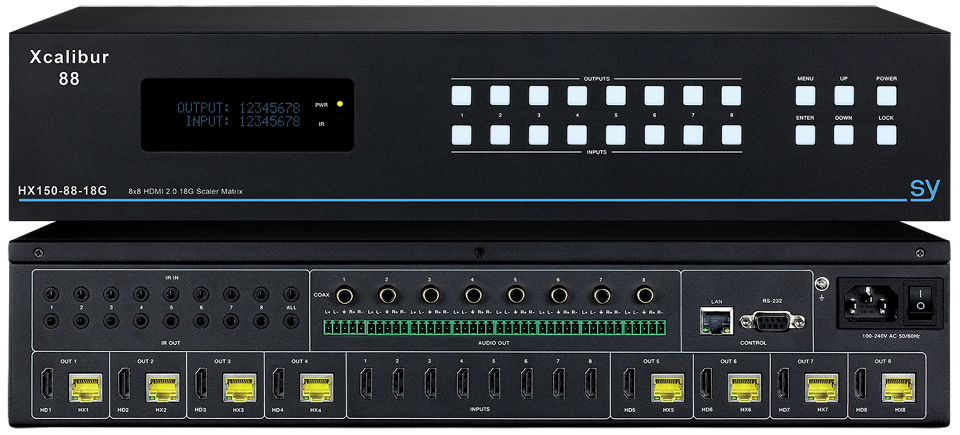

SY-HX150-88-18G SY Xcalibur 8×8 4K HDMI Matrix Bundle

8×8 Matrix Switcher – Route any 8x Inputs to any 8x Output channels.

Mirrored Outputs – 8x HDMI outputs as well as 8x HX Outputs (mirrored HDMI ports). Each HDMI/HX pair output the same video image, although each HDMI or HX output can be down-scaled independently.

Long Range Transmission – It will transmit HDMI 2.0 video signals to 150m @1080p or 120m @4K60 4:4:4 over a Cat6 cable, utilising T568B wiring standard.

HDR – The Xcalibur product range supports HDR, HDR10, HDR10+, HLG and Dolby vision.

Down Scaling – Built in Down-Scaler on every output (HDMI as well as HX), that may be used in either Auto Mode (default) or selected manually. 4K signals can be scaled down to 1080p while retaining the Refresh Rate, (frame rates are always preserved), eg; a 4K source can be displayed on a 1080p display automatically, whilst the same source may be displayed as 4K on another output. The HDMI outputs can also be scaled down independently of their associated HX output ports to suit the particular connected Display.

HDCP Control – Support and Management of HDCP ensures compatibility. The Xcalibur 88 enables you to control the HDCP of the inputs and outputs separately. You can convert from HDCP 2.2 down to HDCP 1.4, or simply put the unit into Cascade Mode to avoid HDCP issues.

EDID Management – As well as pass-through, there is a user programmable EDID memory option. You can choose to read and store the EDID data from any of the connected outputs or use one of the 21 pre-set EDID options. Choices range from ‘1080p 2.0 channel’ through to ‘4K60 HDR 7.1 channel’. This facility will help ensure the video source is optimised to suit the installation.

Output Stream Control – Each individual output (HDMI as well as HX) stream can be selectively enabled or disabled. In this way you can fully control each display.

Test Pattern Generator – We have equipped this Professional device with an on-board ‘Test Pattern Generator’ complete with a choice of 6 Test Patterns including Checkerboard or Solid Colour Patterns, at 4K@60, 4K@30, 1080p@60. Perfect for commissioning or checking all the component parts from the Matrix to the display device.

VKA – ‘Video Keep Alive’ maintains video output whenever the input video signal is lost. This function can be very useful, particularly when used with projectors, which may otherwise shut down and then run a long cool down sequence. The unit can output a currently selected Test Pattern to prevent the display device from powering down, (by default the unit is in ‘VKA OFF mode’). Other options include ‘VKA Timed mode’ with a user programmable time-out interval of up to 4 hours long or maintained indefinitely until input signal is resumed.

Audio Support – Pass through of embedded audio signals up to 7.1 channels is supported. This is great for connection to a surround sound system possessing HDMI input.

Audio De-embedder – Available via multi-channel Coaxial S/PDIF Digital or Stereo Balanced Analogue Audio outputs. The HX Receiver units also have De-embedded Stereo Analogue Audio (via 3.5mm jack).

CONTROL

IR – Equipped with a 8×8 IR Matrix, whereby the input IR signals will pass-through to the respective receivers, whilst matrix IR outputs are routed to the corresponding selected receiver. This ensures the IR from a receiver is routed as per selected source – Commonly referred to as ‘IR Follows Input’.
RS232 – There is also an RS232 port which can route addressable RS232 commands to each output, thus providing discrete and independent 2-way RS232 control to each of the HX receivers, along with Global one way RS232 command transmission to all HX ports. The Xcalibur-88 Matrix unit can also be controlled through this RS232 connection, ensuring simple access to all parameters.
LAN Control – The Matrix has a LAN port allowing TCP/IP control via an ethernet driver. The unit also has a built-in web server, facilitating easy use of many functions and general selections.
CEC Control – The device will pass through all CEC commands from input to output. Sources and displays can also be controlled via CEC commands by using the built-in WEB GUI, or RS232 commands. It allows control of any CEC enabled equipment for either the HDMI inputs or the HDMI/HX output ports, with functions such as: Power On/Power Off, Transport Controls, Menu operations and Volume control.

Web GUI Interface Control – The device has a built-in web server with separate page tabs, offering configuration and control of all parameters.

PoC – The Xcalibur Matrix also provides power to the Xcalibur 11 Receivers via the PoC (Power over Cable) system. No need for any PSU at the receiver end. (Power to the matrix is via IEC C14 mains cable).

PART NUMBER  SY-HX150-88-18G

Transmission Distance
1080p to 150m, and 4K to 120m, using Cat5e/6/6a/7
PoC (24V) on all HX outputs

HDMI VERSION
Input: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported
Output: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

HDMI Cable Lengths (in & out)
  15m @ 1080p60, 10m @ 4K30, 5m @ 4K60
Use of Premium High-Speed HDMI cable is highly recommended

HDCP COMPLIANCE
Input HDCP: Accepts all versions up to HDCP 2.2
Output HDCP: Fully controlled – Pass through, 1.4, 2.2, Cascade mode

RESOLUTIONS / FORMATS
Input resolutions:
All HDMI and PC resolutions up to 4K2K 60Hz 4:4:4
Colour Space:
Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
Colour Depth:
8, 10, 12 bits

DOWN SCALE
Down-Scaling (Resolution):
  4K inputs scaled down to 1080p

AUDIO
Xcalibur 44 Matrix Switcher
HDMI Output – Audio Out
  L-PCM 2.0, 2.1, 5.1, 6.1, 7.1
Dolby Digital, Dolby TrueHD, Dolby Digital+ (DD+)
DTS-ES, DTS HD Master, DTS-HRA, DTS-X
Coax – Audio Out
  All audio formats are supported up to 5.1ch
Analogue Audio Out
  Balanced (Differential) Stereo L+R, at 0.775Vrms Max.
(Front Left & Front Right only when not using 2.0 audio)

AUDIO
Xcalibur 11 Receiver
De-embedded Analogue Audio out:
  Analogue Stereo (L/R) output, – 0.775 V rms via 3.5mm Jack Socket
  (Front Left & Front Right only when not using 2.0 audio)
HDMI Output – Audio Out
2.0, 2.1, 5.1, 7.1 channel LPCM, Dolby, AC3, DTS

CONTROL
IR In, IR Out
Universal, 25-60 KHz carrier frequency
RS232 Control Port Settings
  115200 baud, 8 data bits, 1 stop bit, no parity for all control commands
LAN/IP Port
IP Address: 192.168.1.100

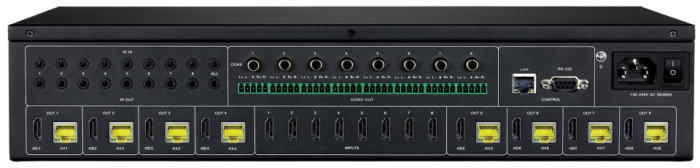

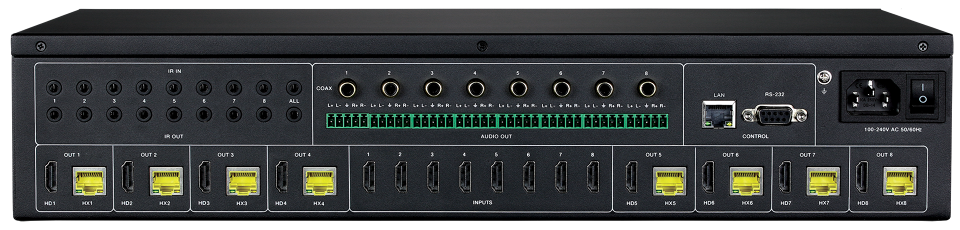

CONNECTORS
Xcalibur 44 Matrix
1x DB9 connector for RS232 control and configuration
1x RJ45 LAN port
8x HDMI Inputs – Input from the Source devices
8x RJ45 HX Outputs – (mirrored with corresponding HDMI Output)
8x HDMI Outputs – (mirrored with corresponding HX Output)
8x 5 Pin Phoenix Screw terminals for Balanced L/R Audio Out
8x RCA jacks for Coaxial S/PDIF Digital Audio Output
9x 3.5mm TRS IR Input
9x 3.5mm TRS IR Output
1x IEC C14 Mains input (100V ~ 240V AC)

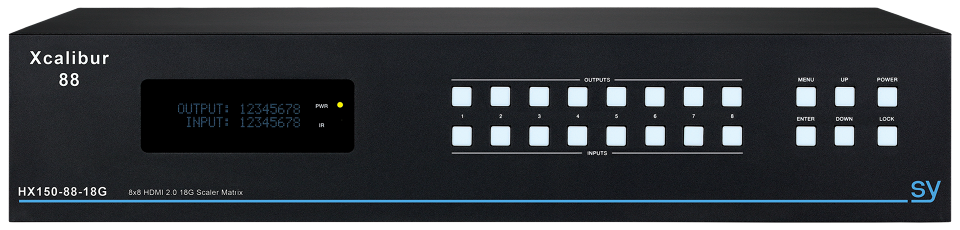

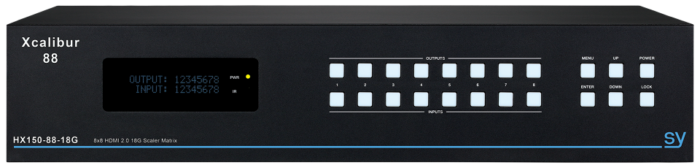

Controls
  1x rear mounted On/Off Power Switch
22x Front panel buttons for manual control
1x Illuminated LCD display

CONNECTORS
Xcalibur 11 Receivers
1x Micro USB for configuration or update
1x RJ45 HX Input
1x HDMI Output – To display device
1x 3.5mm TRS Audio Output – Analogue Stereo L/R Audio
1x 3 Pin Phoenix Screw terminals for bi-directional RS232 pass through
1x 3.5mm TRS IR Output
1x 3.5mm TRS IR Input
1x 24V DC Power input (2.1mm barrel jack)

POWER
Power consumption:
50W – Matrix Switcher
7.25W – Receiver
Power Supply:
100V ~ 240V AC 50/60Hz – (IEC C14 connector)

ENVIRONMENTAL
Operating Temperature Range:
  0 ~ +40˚C (32 ~ 104F)
Operating Humidity Range:
10 ~ 90% RH (Non condensing)

PHYSICAL
Xcalibur-44 Matrix
Dimensions (WDH):
440 x 220 x 88.6mm (19in x 2U)
Weight (net):
6.54kg

Xcalibur-11 Receiver
Dimensions (WDH):
  140 x 65 x 18mm
Weight (net):
250g

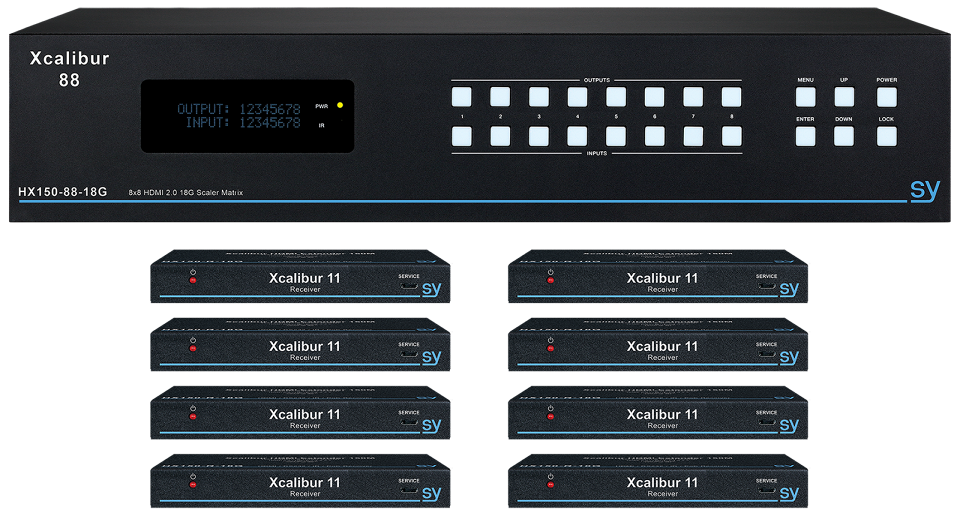

WHAT’S IN THE BOX
1x SY-HX150-88-18G Matrix
8x SY-HX150-11-18G Receivers
1x IR Remote Control
9x IR Emitters
9x IR Receivers
8x 3-way Screw Terminal Connectors
8x 5-way Screw Terminal Connectors
1x pair of main unit Rack mounting brackets
8x pairs of Receiver mounting brackets
1x RS232 cable – DSUB-9 male to DSUB-9 female (1.5m)
1x UK 13A Mains Cable to IEC-60320 C13 Connector (1.5m)
1x User manual
