MHUB2K44 HD Anywhere mHub 2K (4×4) Bundle

HD Anywhere MHUB2K44 2K 4×4 HDMI over Cat 5e / 6 matrix features an updated design. mHub 2K 4×4 supports Full HD 1080p up to 50m / 164 ft over a single Cat 6 cable with four HDMI loop outs. Sold as a complete package inc. IR and display receivers


mHub 2K 4×4 supports 1080p resolutions up to 50m / 164 ft, over a single Cat 6 cable from four source devices to four displays with two-way IR and ARC (on RX). Four additional HDMI outputs can be used for integrating AVRs or mirrored displays. Control is delivered through TCP/IP, RS232 or direct IR with a range of third party control drivers available to download free of charge.

Setup is quick and simple with mHub 2K 4×4 . Every box includes one matrix with 12V PSU and rack mounting ears, four receivers with 5V power adaptors, IR kit, a small matrix remote and four USB to 5V power leads.

Since being released in the summer of 2014, mHub 2K 4×4 has been praised for its speed of switching. Stephen Withers, Assistant Editor of AVForums, found that “the switching was seamless and there was no degradation of signal, with the system performing exactly as advertised.”

Control is delivered through TCP/IP, RS232 or direct IR, meaning mHub can be easily integrated with third party control systems. The EDID management tools enable the highest resolution audio to be passed to an AVR via the mirrored HDMI outputs, whilst video is sent to the display location. mHub 2K has discretely routed IR passback, discrete matrix control via IR and forwards IR routed to displays. For a list of all supported video and audio formats, see the table below.

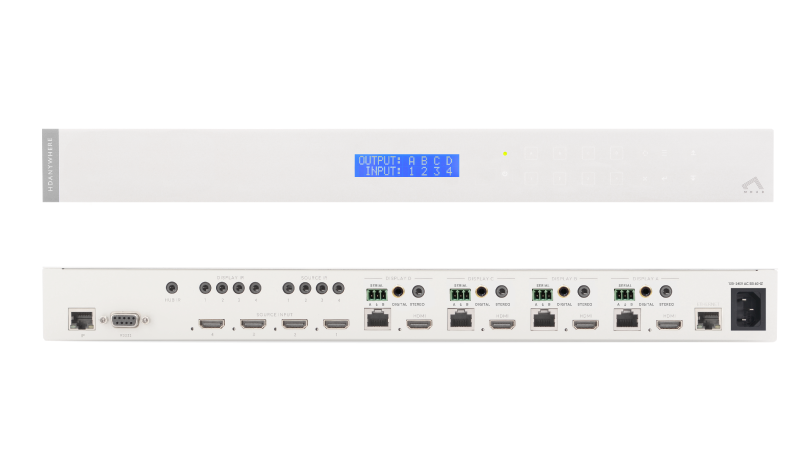

All mHub 2K 4×4 matrixes are sold as complete install packages. In the box, dealers get access to everything they need for an 4×4 install: a 1U rackmountable central hub with rack ears and 12V PSU, four display receivers with 5V PSUs, IR kit, a small matrix remote, and four USB to 5V power leads.

Product info

Product code – MHUB2K44
SKU UK 2.50.646
EU 2.50.675
US 2.50.676
Form-factor 1U rackmountable
Product type HDMI over Cat matrix
Max video inputs 4 x HDMI
Max video outputs 4 x Cat outputs
4 x HDMI loop outs
Max resolutions and max distances Full HD 1080p- 50m / 164 ft (over Cat 6)
Audio formats supported Stereo audio, LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Audio Extraction at Hub X
Audio Extraction over Digi Coax at Hub X
Audio Extraction Headphone at Hub X
RS232 Control at Hub
RS232 Port Receiver X
IP Control
Network Setup Method Via software
10/100 Ethernet support X
2-way IR
Receiver control 2-way IR
EDID management
HDMI version 1.4
HDCP support 1.4
Hub control Hub, IP, RS232, IR
Hub power 12 V
Receiver power 5V or USB to 5V power leads (if supported by the display model. These come supplied with package)
Warranty Refurbished: 6 Months Warranty

Weight and dimensions

mHub central hub
Height: 45mm (1.7″)
Width: 440mm (17.3″)
Depth: 200mm (7.8″)
Weight 2200g (4.8lb)
mHub receiver
Height: 65mm (2.5″)
Width: 65mm (2.5″)
Depth: 100mm (3.9″)
Weight 200g (0.4 lb)

Please access this products downloads via its support page
