MHUB4K431 HD Anywhere mHub 4K 4×4 HDMI Matrix Bundle

£1,329.00 inc VAT

HD Anywhere MHUB4K431 (4×3+1) HDBaseT-Lite matrix system with HDCP 2.2 – supporting UHD 4K HDR video, multichannel audio, PoE and IR up to 70m over Cat 6 cable. Sold as a complete package inc. IR cabling and receivers. Sold as a complete package inc. IR and display receivers.


HD Anywhere MHUB4K431

MHUB 4K (4×3+1) with HDCP 2.2 utilises HDBaseT (Class B) for uncompressed AV signal distribution, without any degradation in video quality, even at Ultra HD Blu-ray playback resolutions (4K/60 4:2:0 HDR at 24FPS) as well as supporting all stereo and multichannel audio formats, up to and including Dolby Atmos and DTS:X.

MHUB 4K is a centralised AV system for sharing four Ultra HD HDMI media sources to four screen locations. Three long-range screen zones via Cat 6 cable, which can be up to 40 metres in length for UHD or 70m for 1080p and one local zone via a HDMI cable.

The system package includes the central matrix hub and three palm-sized, easily-hideable lightweight receiver units, which sit behind each screen location. These draw PoE power from the central hub, so no bulky wall PSU or USB 5v cables are required.

Supports discrete backwards IR and a point-to-point forwards IR. Package includes all transmitter and receiver dongles required to enable full control over all matrix-connected HDMI sources and all screens.

Control of the matrix can be performed via two-way RS232, TCP/IP, IR or the front panel toggle buttons. Ready-made drivers are included for all major control systems free of charge.

The ‘AVR IR’ port is for integrating IR control for a single AVR in addition to 4 source devices.

Stereo and Digital audio breakout is available on output D via twin RCA connectors for stereo or Optical SPDIF for surround sound formats.

Multichannel to stereo downmix is present on the twin RCA connectors.

3-year standard warranty.

Form-factor: Compact Aluminium with Push Button
Inputs / Outputs / Mirror: x4 HDMI / x3 HDBaseT Lite, x1 HDMI / 0
Maximum Picture Output: 4K / 60 24-bit 4:2:0
4K / 24 36-bit 4:2:0 HDR
Achievable Distance: 4K 40m
1080p 70m
HDMI / HDCP Version: 2.0a / 2.2
EDID Management Yes
Audio Extraction Digital / Analogue: Hub Output 4 only
10 / 100 Ethernet: No
HDA Cloud Enabled: No
Control Hub: Hub, IR, IP, RS232, App
HDA Irengine: No
PSU (Hub/Receiver): 24V DC External / POE

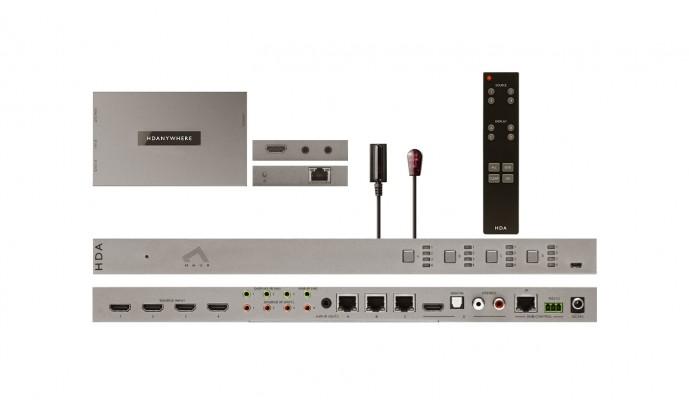

  • 1 x mHub 4K (4×3+1) central hub with 24V power supply
  • 3 x 40m (4K) display receivers
  • 3 x pairs of mounting-ears for mounting display receivers to wall or behind TV.
  • 4 x IR transmitters
  • 4 x IR receivers
  • 1 x Included remote
  • 1 x rack-ears for rack mounting mHub 4K (4×3+1) central hub
