MHUB4K88PRO HD Anywhere 4K 8×8 HDMI mHub Matrix Bundle

£7,995.00 inc VAT

HD Anywhere MHUB4KPRO HDBaseT matrix system with HDCP 2.2 – supporting 8x UHD 4K HDR HDMI sources, IP-to-IR + 2-way IR control, multichannel audio and PoE up to 40m over Cat6 cable to 8x screen locations. Sold as a complete package inc. all IR cabling and receivers.  Sold as a complete package inc. IR and display receivers.




MHUB 4K PRO is the ultimate centralised AV solution for the connected home. De-cluttering TV zones and delivering stunning UHD/HDR 4K content, Fast Ethernet connectivity and universal control, everywhere – all from a one cable system.


Eight 4K HDMI sources can be shared to up to eight long-range screen locations via network cabling, which can be up to 40 metres in length for UHD or short-range via HDMI cables.


Uses advanced HDBaseT long-range signal technology, which doesn’t introduce any degradation in audio/video quality, even at Ultra HD Blu-ray playback resolutions (4K/60 4:2:0 HDR at 24 frames) and supports all audio formats, up to and including Dolby Atmos and DTS:X for the most immersive AV experience possible today.


A clever system of infrared (IR) blasters and receivers enable full remote control over all HDMI sources and all screens, at all locations – via your phone or tablet using HDA’s Universal IR Remote App – uControl, which is programming-free and super-simple to setup. Ready-made drivers are also available for all major control systems free of charge.


The system comprises of a central hub (where all HDMI sources are connected) and eight palm-sized, discreet aluminium lightweight receiver units, which sit behind each screen and draw power from the central hub, so no additional power cables are required keeping things neat, hidden and simple.

HDA Design

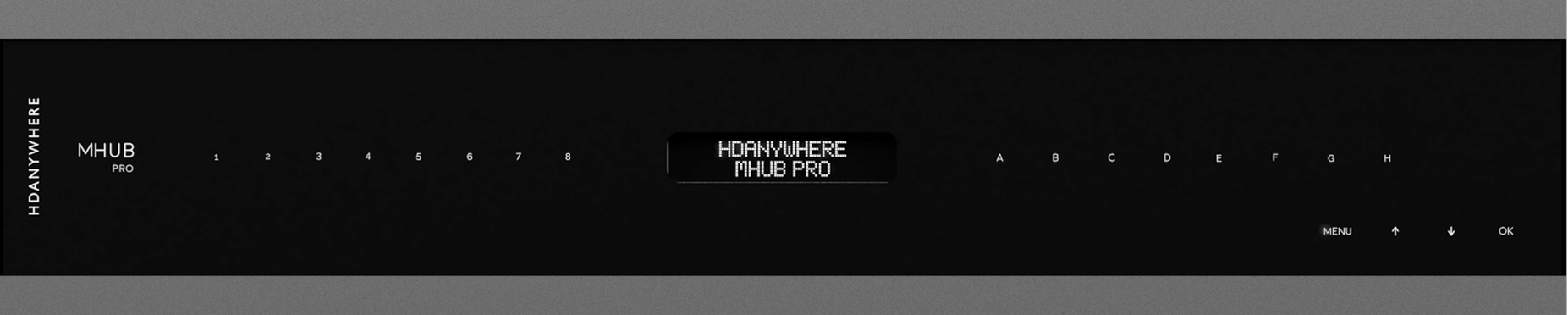

Befitting its premium credentials, MHUB 4K PRO is fronted by an elegant backlit fascia with touch controls that gently fade in and out, as and when required, with a high-quality carbonite aluminium chassis for both the hub and receivers

Form-factor: 2U Aluminium backlit touchpanel
Inputs / Outputs / Mirror: x8 HDMI / x8 HDBaseT Pro / x8 HDMI
Maximum Picture Output: 4K / 60 24-bit 4:2:0
4K / 24 36-bit 4:2:0 HDR
Achievable Distance: 4K 70m
1080p 100m/ 492ft
HDMI / HDCP Version: 2.0a / 2.2
EDID Management Yes
Audio Extraction Digital / Analogue: Hub Outputs 1-8
10 / 100 Ethernet: Yes
HDA Cloud Enabled: Yes
Control Hub: Hub, IR, IP, RS232, App
HDA Irengine: Yes
PSU (Hub/Receiver): 110-240V Internal / POE


  • 1 x MHUB 4K PRO (8×8) central hub
  • 1 x Pair of rack ears for rack-mounting the MHUB 4K PRO (8×8) central hub
  • 8 x PoE display receivers
  • 8 x Pairs of mounting brackets for receivers
  • 1 x Multi-room IR remote control
  • 1 x In-room IR remote control
  • 10 x IR receivers
  • 9 x IR transmitters
  • 1 x IEC Kettle Lead for power
  • 1 x Serial cable
