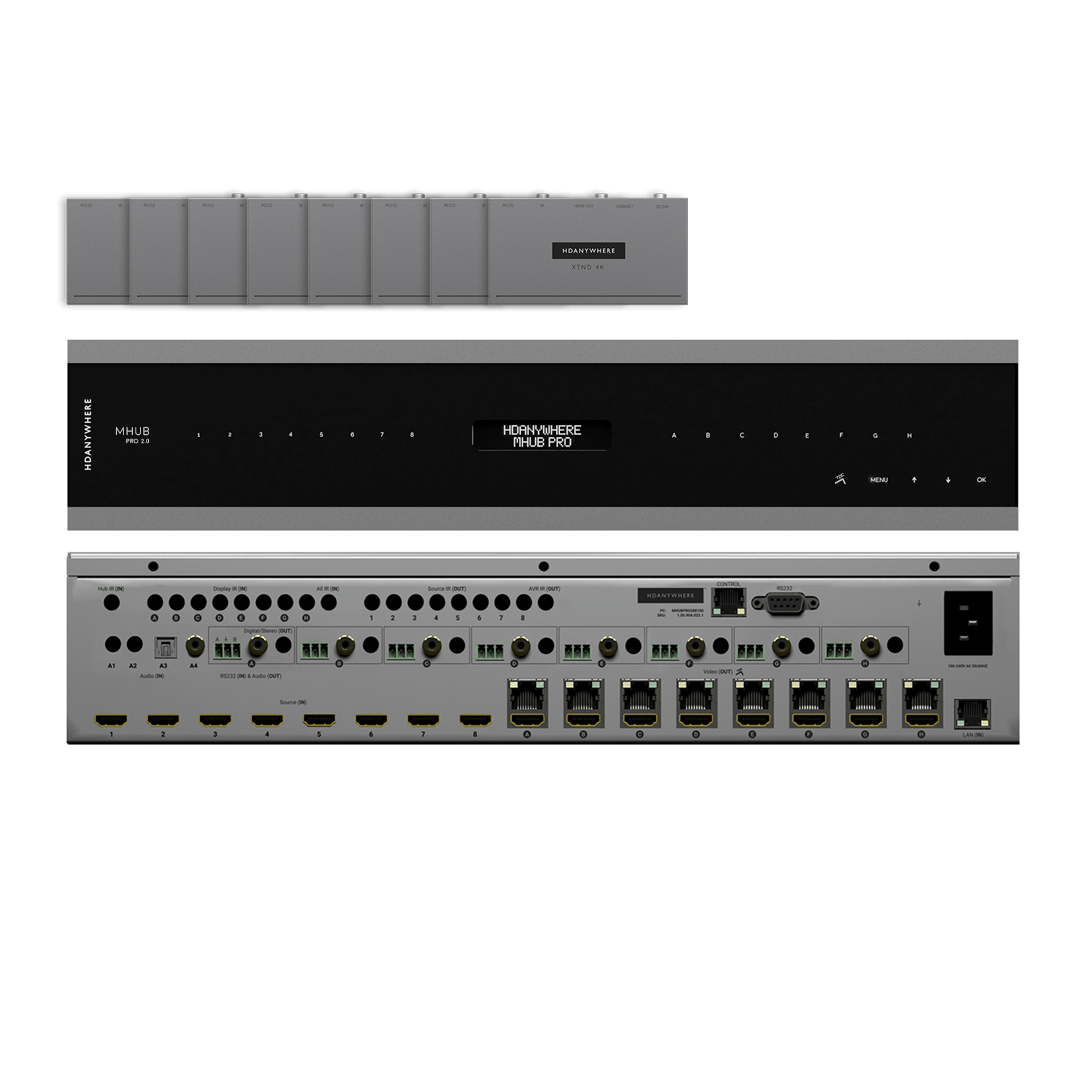

MHUB PRO 2.0 (8×8) HD Anywhere 4K 8×8 18G HDMI mHub Matrix

HD Anywhere MHUB PRO 2.0 (8×8)  is designed to address the needs of a contemporary AV install, MHUB PRO 2.0 is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 100 metres away over a single Cat6 cable with no latency.. Sold as a complete package inc. all IR cabling and receivers. NEW: Please Call Us on 01372 450 794 for Bundle Options and Stock Availability.



£7,995.00 inc VAT

Compare

MHUB PRO 2.0 (8×8) is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 100 metres away over a single Cat6 cable with no latency. NEW

MHUB PRO 2.0 (8×8) Features:

18G (600MHz) HDMI® 2.0 and HDCP 2.2 compatible
Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range(HDR) all current formats inc. Dolby Vision®
Supports all current audio formats including Dolby Atmos® and DTS:X®
HDBaseT 2.0 with PoH
Internal video scaling (4K>1080p on every output)
Internal 20×8 audio matrix switcher with flexible grabbing audio (source or display HDMIARC) via digi coax, or audio downmix via stereo jack
Internal uControl IO expander universal controller
Control paths via TCP/IP, two-way IR and RS232
Backlit fade in/out touch panel controls
App/web GUI for easy config (MHUB-OS) with remote management (HDA Cloud)
2x integrated 10/100 Ethernet LAN connections at RX
Sold as a complete install package, with all receivers, IR cables and mounting kit included.

MHUB PRO 2.0 (8×8) Specifications:

Form factor 19”/2U aluminium rack-mountable unit
Inputs x outputs 8 HDMI x 8 RJ45 HDBaseT + 8 mirrored HDMI
Transmission tech HDBaseT 2.0 (VS2000) + TPC
Video bandwidth HDMI backplane 594MHz clock / 18Gbps data
HDBT 340MHz clock / 10.2Gbps data
ESD protection ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Hub control Web GUI, IR, TCP/IP, RS232, App, Alexa
App control Full control over sources, matrix hub & display functions.
Device weight Hub 4600g
RX 192g
Package weight 8500g
Dimensions (W/D/H) Hub 440 / 380 / 90mm (without feet)
RX 163 / 94 / 19mm
Operating temperature 32°F to 104°F (0°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Relative humidity 20~90 % RH (non-condensing)
Power consumption 30W (max) 0.5W (standby)
Guarantee 3/4-year guarantee (Cloud registration required)
