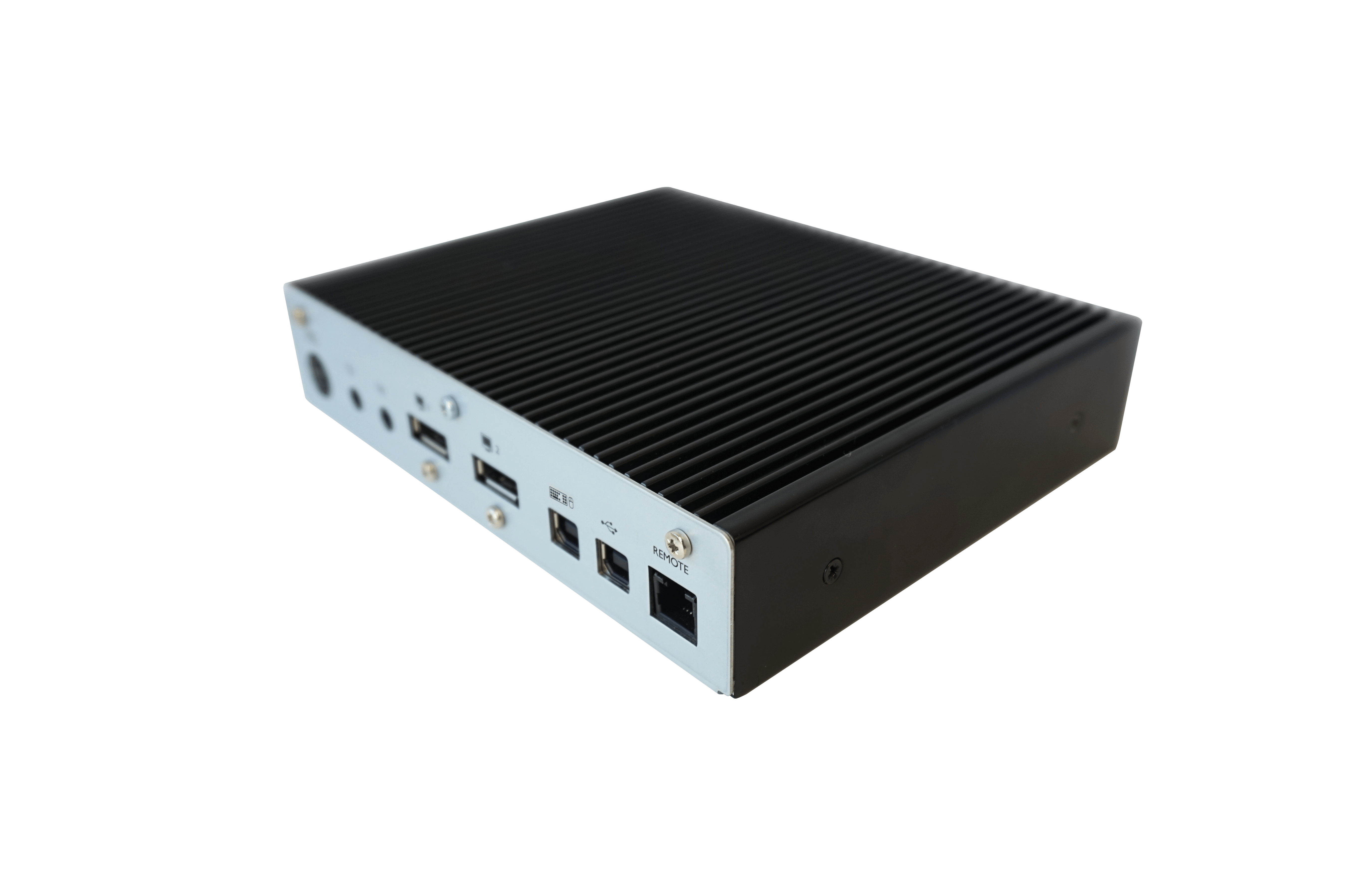

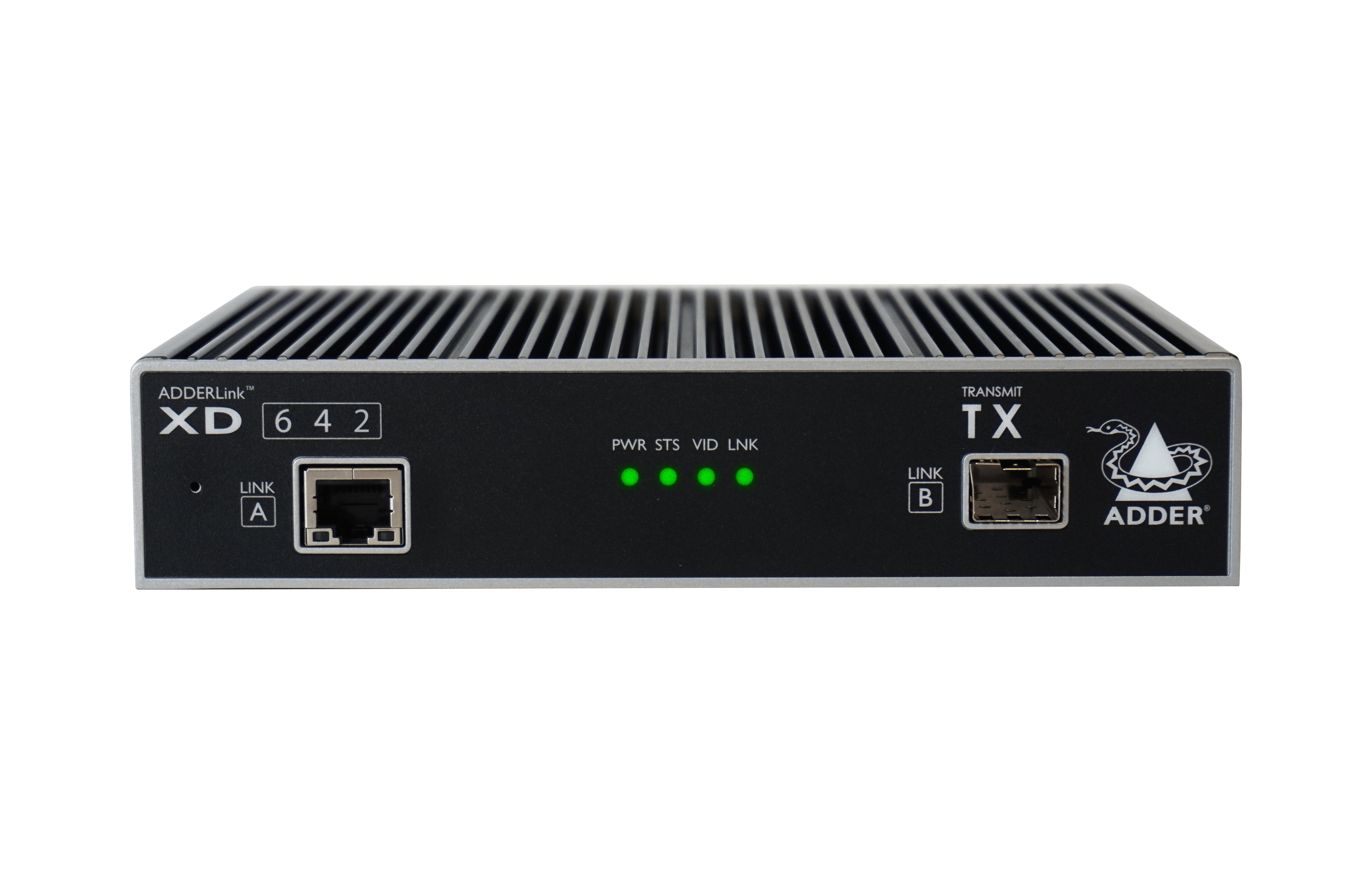

XD642P-DP AdderLink USB 2.0 Dual Display 4K DisplayPort With Audio 100m CATx KVM Extender Pair

£1,750.80 inc VAT

AdderLink XD642P-DP is a Dual-head high-resolution video, real-time control. The system supports resolutions up to 4096×2160 @ 60Hz using 8 bits per colour and 4:4:4 chroma sampling. A local pass-through video port is provided at the transmitter (TX). The ADDERLink XD641P-DP extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected. RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control. The XD642P-DP offers Emulated USB2.0 that enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and joysticks. The ADDERLink XD642 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.

Data Sheet

Manual

Description

The ADDERLink™ XD642P-DP is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.

  • Dual-head 4K60 video, USB2.0 and audio
  • Point-to-point protocol for ultra-low latency.
  • Flexibility between copper and fiber connectivity.
  • Adder’s USB emulation ensures reliable computer bootup.

High-resolution video, real-time control
The system supports resolutions up to
4096×2160 @ 60Hz using 8 bits per color and
4:4:4 chroma sampling.

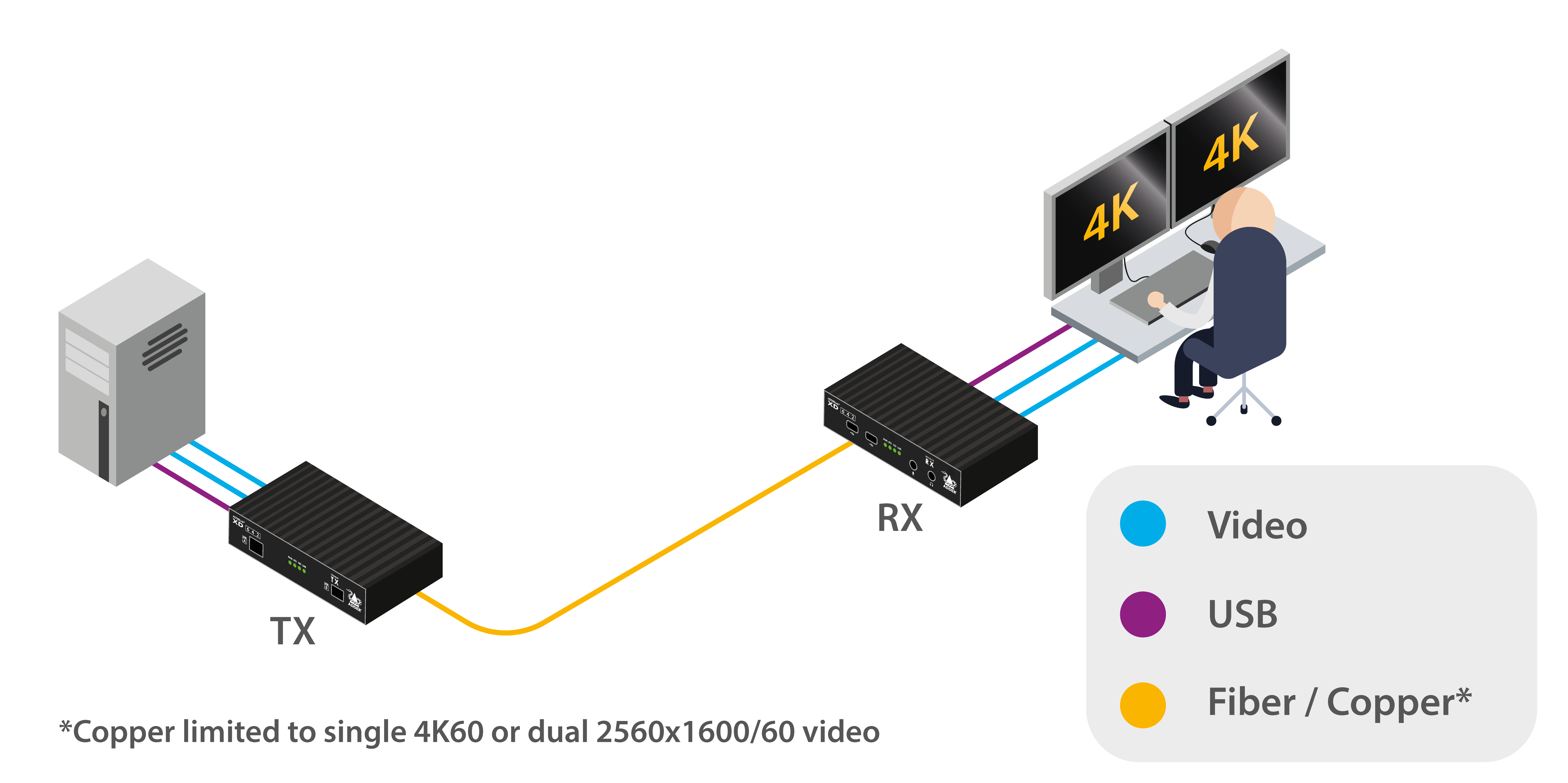

Single cable
Video, audio, USB HID (human interface
device), hi-speed transparent USB and RS232
signals are transmitted over a single CATx or
fiber cable.
Up to 4km/2.5 mile extension distances
The ADDERLink XD642 supports both copper
and fiber interfaces. It provides a range of up
to 100m over a CAT6 cable link, and up to 4km
over an optical fiber link.
Emulated USB2.0
Enables connection of any full and low speed
USB HID from mouse and keyboards through
to graphics tablets and joysticks.
Transparent USB2.0
Mass storage devices and isochronous
devices, such as webcams and audio headsets
can be used through the transparent USB2.0
hi-speed port.
EDID management
The system has intelligent EDID management
to allow the true characteristics of the monitor
to be passed back to the computer.
Plug and Play
The ADDERLink XD642 extender is delivered
in a zero config. state so it works, without the
need for drivers or software, as soon as it is
connected.
Digital audio
Video: Encapsulates up to eight channels
of 24-bit, 192kHz sampled “Pulse-code
modulation” (PCM) uncompressed audio
integrated with video signal.
USB: Up to two channels of 24-bit, 96kHz
sampled PCM audio.
HD quality analog audio
HD audio quality (stereo audio, 24-bit
sampled at 96kHz) is available for line in/out,
microphone and headphone or speakers.

Serial communications
RS232 can be passed between the units to a
maximum baud rate 115K2 with RTS/CTS flow
control.

  • 1x TX and RX pair
  • 2x Power supply unit with country specific mains cable
  • 2x DisplayPort™ cable (VSCD17)
  • 1x USB cable (VSC24)
  • 1x Audio 2m/6ft cable
  • 1x Quick start guide
