X-DVIPRO-MS2 AdderLink USB & Dual Head DVI CATx KVMA Extender

£1,299.00 inc VAT

AdderLink X-DVIPRO-MS2 USB with Dual Display single DVI up to 50m extender with audio uses uncompressed system so that every pixel of every frame are sent without loss. It allows Video, USB 2.0 (Low and Full speed) and audio all pass along a single cable and the second video head requires a separate CATx cable.  It supports EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Data Sheet

Manual

Description

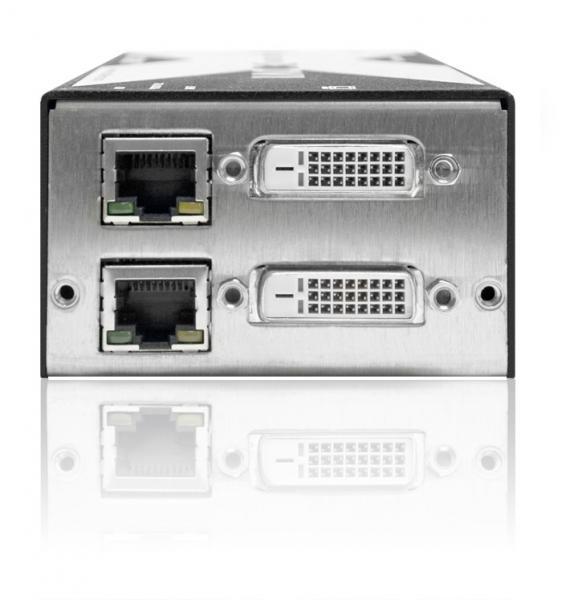

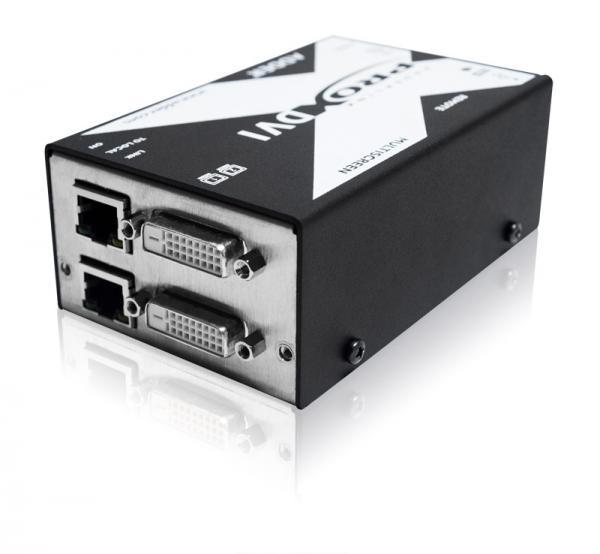

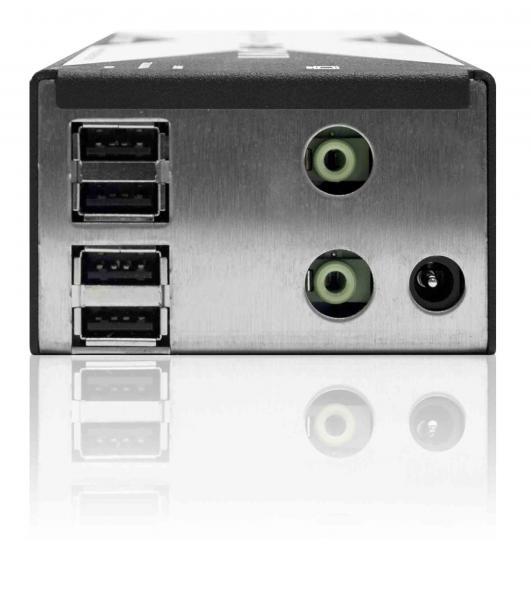

AdderLink X-DVIPRO-MS2 MultiScreen is a high performance KVM (Keyboard, Video and Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, away from the user work station environment, whilst maintaining the same user experience. X-DVIPRO-MS2 can transmit two Single Link DVI video streams, USB 2.0 and analog audio over two CATx cables.

The AdderLink X-DVIPRO-MS2 MultiScreen extender uses an uncompressed system whereby every pixel of every frame are sent without loss. HDMI video and audio can be extended with the correct adapter cable, although HDCP and CEC are not supported.

The AdderLink X-DVIPRO-MS2 enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12Mbps) isochronous devices such as headsets are supported.
