XD522-DP-PAIR AdderLink USB 2.0 DisplayPort RS232 & Audio 100m CATx Extender

£1,554.00 inc VAT

AdderLink XD522-DP-PAIR AdderLink USB 2.0 DisplayPort RS232 & Audio 100m CATx Extender. The system supports DisplayPort 1.1 video resolutions to a maximum of 3840×2160@30Hz, 2560 x1600@60Hz  or two 1920 x1200@60Hz screens. The receiver unit supports DisplayPort Dual Mode (DP++) also. DPCP and HDCP are not supported. It supports up to six USB 2.0 devices (low or full speed). The system does not allow non-HID devices on ports marked “A”. Isochronous devices are supported (i.e. USB audio or video devices) on the Hi-Speed link only marked “B”. The XD522-DP supports Digital stereo audio as well as RS232.

Data Sheet

Manual

Description

AdderLink XD522-DP-PAIR is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station whilst maintaining the same user desktop experience.

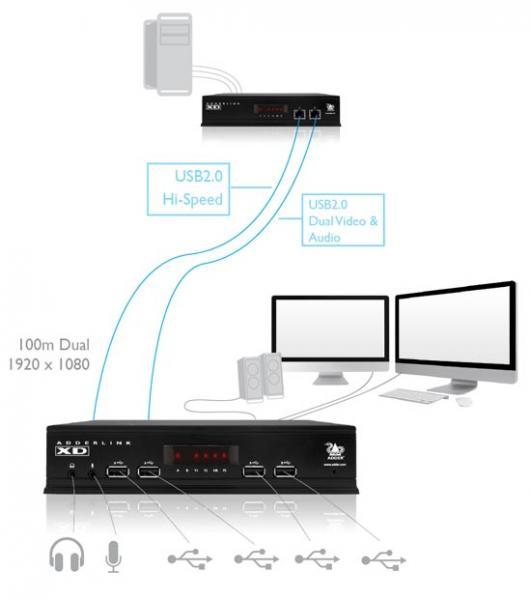

XD522-DP-PAIR can transmit either two 1920×1200 video streams or one higher resolution video stream (2560×1600 WQXGA), digital audio (S/PDIF), analog audio, Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables.

  • Plug and play
  • 150 meter extension distance for a
  • single 1920×1080 screen
  • 100 meter extension distance for two 1920×1200 screens or a single high resolution screen to 2560×1600
  • Supports Mac Cinema Display (2560×1440)
  • Now supports 4K resolutions (3840×2160 VESA)
  • USB 2.0 Hi-Speed for mass storage devices plus:
  • Keyboard, mouse tablet and touch
  • S/PDIF and analog audio

Product Specification

Hardware compatibility

All computers with DisplayPort, USB, audio, RS232 – requirement dependent.

DisplayPort interface

The system supports DisplayPort 1.1 video resolutions to a maximum of 3840×2160@30Hz, 2560 x1600@60Hz  or two 1920 x1200@60Hz screens. The receiver unit supports DisplayPort Dual Mode (DP++) also. DPCP and HDCP are not supported.

USB 2.0

Supports up to six USB 2.0 devices (low or full speed). The system does not allow non-HID devices on ports marked “A”. Isochronous devices are supported (i.e. USB audio or video devices) on the Hi-Speed link only marked “B”.

Digital stereo audio

The system delivers analog stereo audio (Line in, Line out) and supports microphone input and headphones. It also delivers S/PDIF (optical input) via a 3.5mm jack line in connector (mini Toslink).

RS232

RS232 can be passed between the units to a maximum baud rate of 115K2 via the options port.

Software compatibility

All known operating systems.

Computer connections Transmitter (TX)

DisplayPort x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B x 2 , RS232 10p10c options port.

Peripheral connections Receiver (RX)

DisplayPort ++ x 2,  Audio 3.5mm in,  Audio 3.5mm out, Headphone 3.5mm out, Microphone 3.5mm in,  USB type A x 4, RS232 10p10c options port.

Physical design

1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 120mm/4.8” (d), 0.75kg/1.65lbs.

Power

2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz, 0.8A, input to power adapter, 5VDC 20W output from power adapter.

Operating temperature

0 to 40ºC / 32 to 104ºF.

Approvals

CE, FCC



Important Extension distance Information

Recommended cables are CAT7 shielded foiled twisted pairs:
Daetwyler 7702                 Flexible patch cable
Daetwyler 7120                 Bulk cable



Resolution Cable Type Patch connections Distance
2560×1600@60Hz or two 1920×1080@60Hz CAT7 Bulk (trunk) 0 100 metres
2560×1600@60Hz CAT7 Patch 2 80 metres
2560×1600@60Hz CAT6a 2 70 metres
2560×1600@60Hz CAT5e 2 60 metres
Single 1920×1080@60Hz CAT5e 2 150 metres

Note:

Distances are achieved using single lengths of trunk/bulk cable with two 3 meter CAT7a patch cables. For each additional break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7a and less than 2 meters. Patch cables over 2 meters must be CAT7a.
