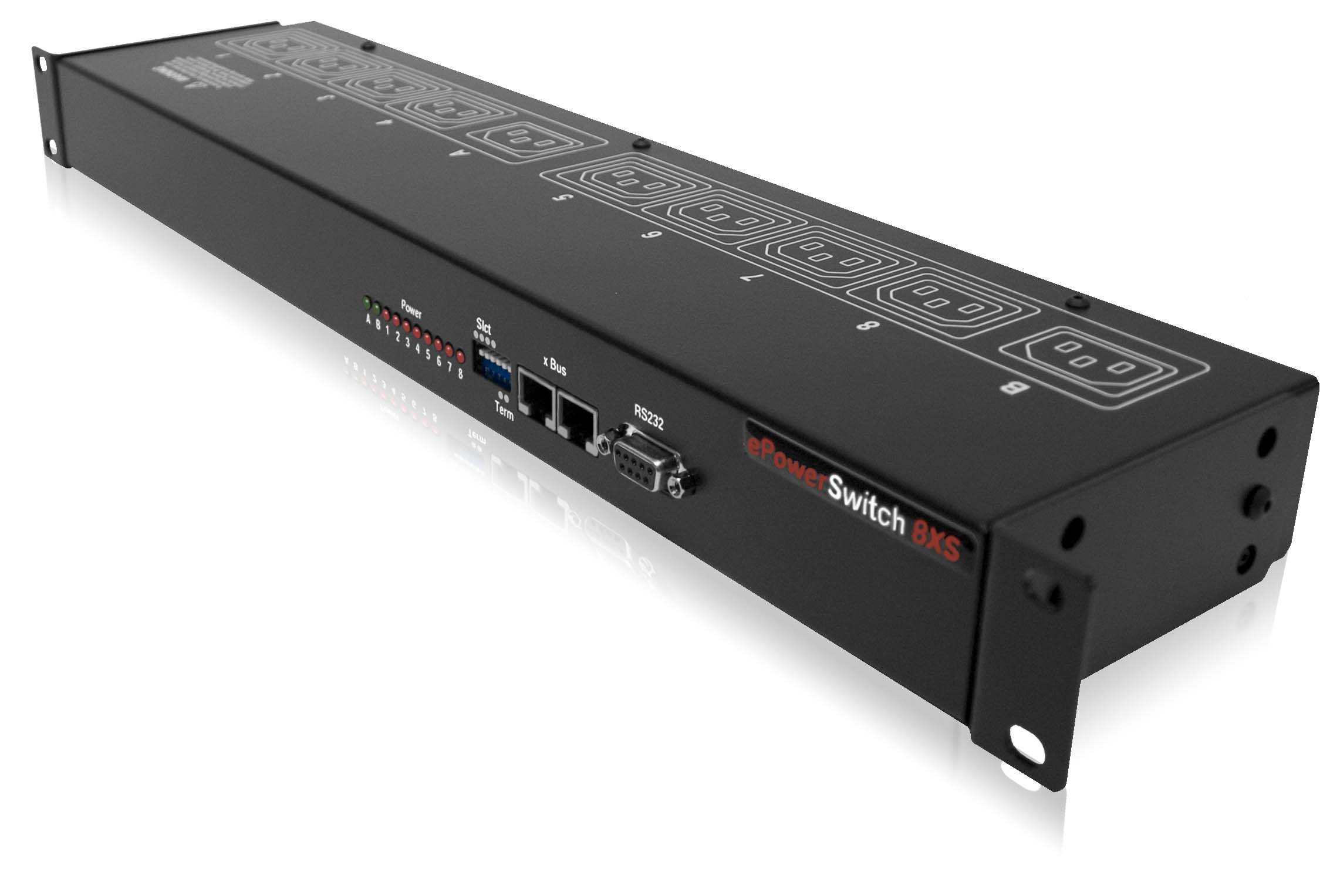

PSU-8SLAVE Adder ePower Switch 8 Slave

Adder PSU-8SLAVE ePower distribution unit can be used only with the Adder KVM Over IP products and it is not compatible with any other manufacturer.  It features two separate power inputs to improve security and increase total current load. Built-in serial interface allows easy control using simple ASC11 commands (can be used by any server or KVM switch to individually control the 8 power outlets.

Data Sheet

Manual

Compare

The PSU-8Slave is power distribution and control unit that can be used to connect to the ADDERLink IP KVM switches to provide total remote control of connected servers and their associated power supplies.

Power on PSU-8SLAVE can then be recycled across a number of ports and selected securely from an integrated On-Screen-Display menu. Controlled power outlets can be extended up to 32 by cascading up to four slave models using one RS232 connection (total load 80 A / 230 V).

  • Two separate power inputs improve security and increase total current load (20 A or 230 V)
  • Built-in serial interface allows easy control using simple ASC11 commands (can be used by any server or KVM switch to individually control the 8 power outlets
  • Sequenced power start ups and shut downs outlet by outlet reduces inrush currents
  • Front panel LEDs provide quick status checks
  • Number of controlled outlets can be extended by cascading
  • Serial connexion: RS232, SUB-D 9 female
  • Nominal input voltage: 230 V/50Hz
  • Input power socket: IEC-320
  • Output Voltage: 230 V/50Hz
  • Output power socket: IEC-320
  • Maximum total current: 2 x 10A
  • Maximum current per outlet: 10A
  • LEDs: 1 for power supply A

1 for power supply B
8 for the power socket status

  • Operating temperature: 0°C to +40°C
  • Operating humidity: 10% to 80%
  • Dimensions: 437 x 107 x 42 mm
  • Weight: 2 kg
  • Approvals: CE, EN55022 & EN55024, RoHS
  • Guarantee: 2 years repair or replace
