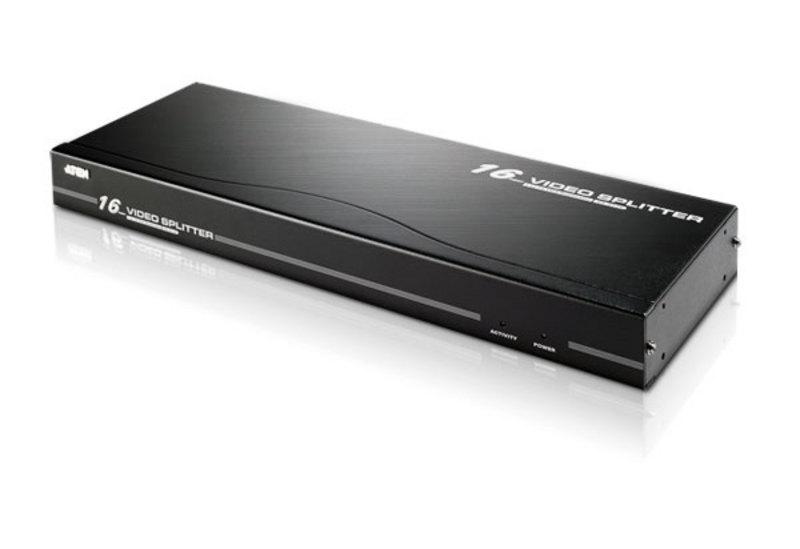

VS0116 Aten 16-Port VGA Splitter with Audio

£275.00 inc VAT

Aten VS0116 16-port VGA splitter with audio allows a single VGA video signal to be distributed to 16 output displays with audio. The splitter support up to 250MHz video bandwidth and up to 65m distance transmission, which provides optimum video quality, supported by resolutions up to 1920×1440. The splitter supports VGA, SVGA, UXGA, WUXGA nd DDC, DDC2, DDC2B Compatible (Port 1 only).

Data Sheet

Manual



Description

The ATEN VS0116 16-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to sixteen output displays. The splitter support up to 250MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440.

The VS0116 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support allowing a single video signal to be sent across multiple video displays while sustaining the highest quality possible.

  • One video input to 16 video outputs
  • Cascadable to 3 levels – provides up to thousands of video signals
  • Audio enabled
  • Supports up to 250MHz; bandwidth.
  • Long distance transmission – up to 65 m (210′) *
  • High video resolution – 1920 x 1440
  • DDC, DDC2, DDC2B Compatible (Port 1 only)
  • All metal casing
  • Designed for enterprise use – 1U in size
  • Supports VGA, XGA, SVGA, UXGA and multisync monitors
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Video Input
Interface 1 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output

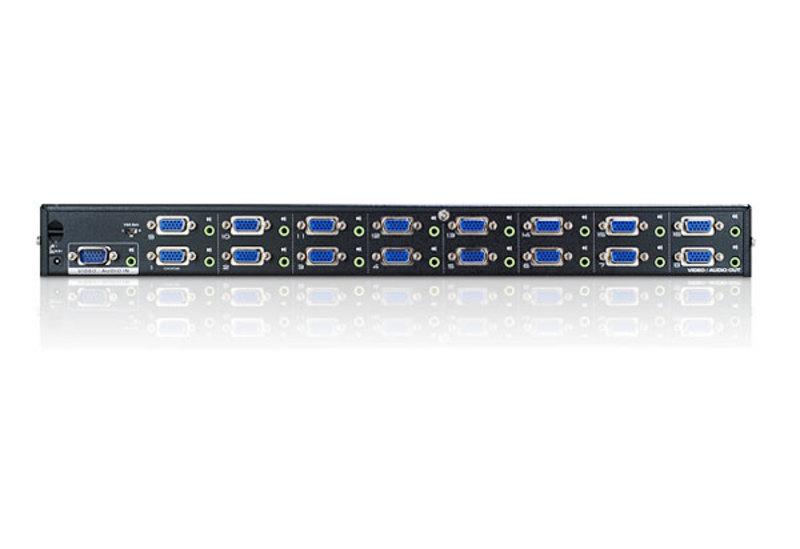

Interface 16 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 250 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 30 m
Audio
Input 1 x Mini Stereo Jack Female (Green)
Output 16 x Mini Stereo Jack Female (Green)
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC, 3.3W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.80 kg
Dimensions (L x W x H) 43.72 x 15.81 x 4.40 cm
  • 1 x VS0116 16-Port Video Splitter with Audio
  • 1x VGA/Audio Cable (1.8m)
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x User Instructions
