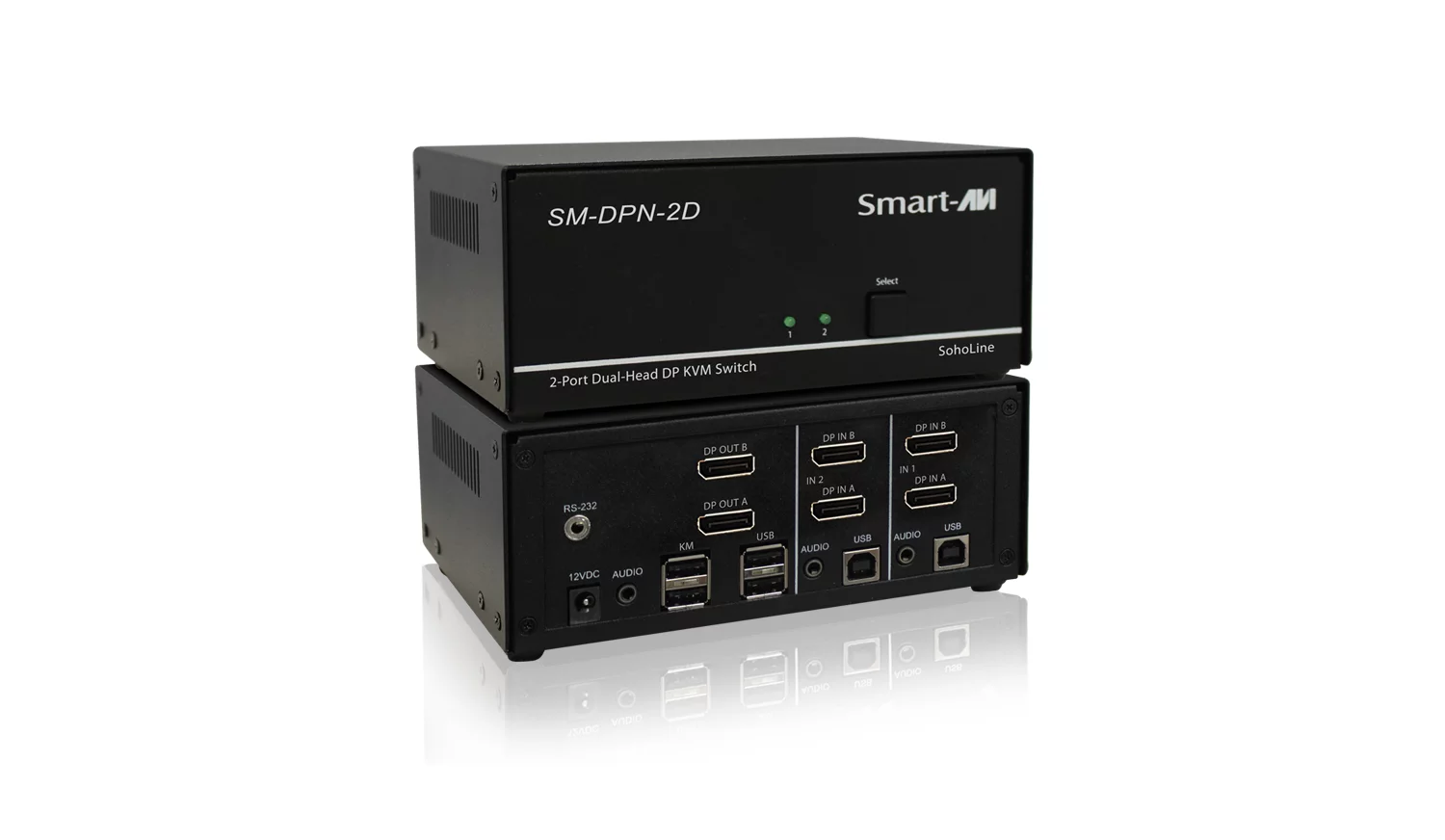

SM-DPN-2D SmartAVI 2-Port Dual-Head DisplayPort KVM Switch

£435.00 inc VAT

The SM-DPN-2D is a multi-platform KVM switch allows the user to manage up to 2 different computers through two different monitors, USB keyboard & mouse, a set of speakers and USB devices like printers, memory devices or scanners. The monitor connectors are DisplaPort but it allows for HDMI and VGA connections by using inexpensive passive adapters or cables.. The SM-DPN-2D supports resolutions of up to 3340 x 2160 @60Hz with zero pixel loss from TMDS signal connection. The SM-DPN-2D uses a very simple protocol, enabling easy integration with the RS-232 control devices.

Brochure

Manual

Description

The SM-DPN-2D is a dedicated multi-platform KVM Switch capable of managing up to 2 different computers through two monitors, USB keyboard & mouse, a set of speakers and USB devices like printers, memory devices, scanners, etc. The video connectors on the unit are DisplayPort, which allows support for HDMI and VGA using inexpensive passive adapters or cables. The SM-DPN-2D supports resolutions of up to 3840 x 2160 @ 30 Hz with zero pixel loss from TMDS signal correction.

The main function of this SM-DPN-2D KVM Switch is to centralize the access of several computer into a single, comprehensive KVM Station. Its USB 2.0 functionality support allows users at the console to access USB devices that would otherwise be unavailable on conventional KVM Switches. For example, it allows the use of a flash memory drive or camera without having to plug it directly into the remote computer. The SM-DPN-2D is a perfect solution for the medical or industrial field where it may not be practical or safe to have on or more CPUs in the general vicinity.

  • DisplayPort Video Connectors
  • Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc.
  • Supports resolutions up to 3840 x 2160 @ 60 Hz
  • Supports USB keyboard and mouse
  • Supports additional USB 2.0 devices like printers, scanners, web cameras and more
  • Flash upgradeable firmware
  • Stereo Audio support
  • Front panel keys for manual port selection
  • Hot-key commands for quick port selection
  • RS-232 for remote control
  • Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on a different computer, or scan a document and save it on another computer
  • Complete keyboard emulation for error free booting

VIDEO
Format DisplayPort
Maximum Pixel Clock 165 MHz
Input Interface (4) DisplayPort
Output Interface (2) DisplayPort
Resolution 3840 x 2160 @ 60 Hz
Color Mode 24-bit
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Data Rate 1.65 Gbps per color
Console Monitors Supports both digital and analog monitors
AUDIO
Input Interface (2) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
SOFTWARE COMPATIBILITY
Operating Systems Operates with virtually any OS including Windows, DOS, Linux, Unix, Sun, Mac, etc.
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (2) USB Type B
Output Interface (2) USB 1.1 Type A for KVM Devices;
(2) USB 2.0 Type A Transparent
CONTROL
Front Panel Push Buttons with LED Indicators
RS-232 Via Control @ 115200 bps
Hot Keys Via Keyboard
OTHER
Power External
100-240 VAC/12VDC2A @ 24W
Dimensions 4” W x 3” H x 6.5” D
Weight 2.15 lbs
Approvals UL, CE, ROHS Compliant
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)
Emulation Keyboard and Mouse
SM-DPN-2D-S 2-Port Dual-Head DP KVM Switch with Audio and USB 2.0 Support.
Includes: [SM-DPN-2D, and PS12VD2A]
