HDMI-DN401A HDMI 18Gb 4K Pro Switch 4in/1 Out with Remote and Audio

Out of stock

The HDMI-DN401A 4 HDMI inputs to 1 HDMI display switch supports 4k @ 60Hzm HDR, RGB, 4:4:4 and 12 bit colour, full 3D up to 1080p @ 60Hz, HD audio with audio jack for analogue stereo when source is LPCM.



This is a high quality HDMI switch capable of processing HDMI signals from the most demanding sources including 4k Blu Ray, the Xbox One and PS4. The 18Gb bandwidth means it can deal with HDMI resolutions of up to 4k @ 60Hz with HDR and 4:4:4 colour at 10-bit and 12-bit colour depth. This HDMI switch conforms with HDMI2.0b, HDCP2.2 and HDCP1.4.

This HDMI Switch takes up to four separate HDMI inputs and switches between them to produce a single HDMI output. This may be necessary if you have more than one HDMI device, but only one HDMI input on your TV.

This HDMI-DN401A switch gives you the convenience of leaving each source’s HDMI cable permanently plugged in and being able to switch between them by the use of a remote control (supplied) or by a switch on the front panel. An extension IR receiver is supplied with a lead which allows the unit to be concealed out of view whilst still being capable of operation via remote control. LEDs confirm which input is currently being sent to the display.

The HDMI-DN401A device is suitable for use in schools, universities, security applications, conference centres, training facilities as well as in the home. Each HDMI Switch carries full size HDMI sockets.

Allows up to 4 inputs

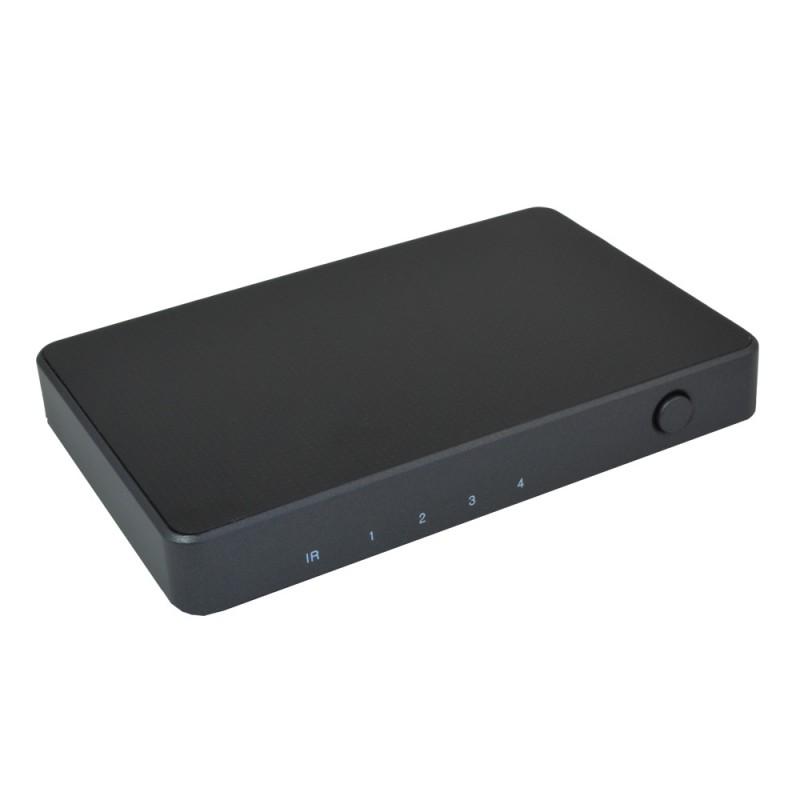

Select inputs by remote control or switch on unit
Supports 4k @ 60Hz
Supports HDR, RGB, 4:4:4 and 12 bit colour
Supports full 3D up to 1080p @ 60Hz
Supports HD audio
Audio jack for analogue stereo when source is LPCM
Complete with UK power supply

12 Months Wrranty

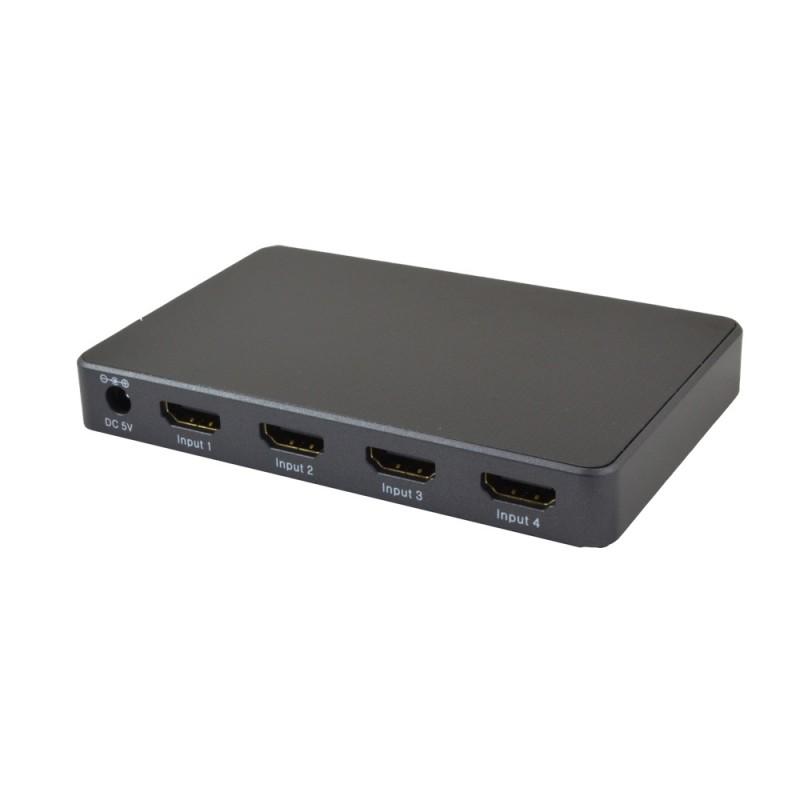

  • Input – four full size HDMI sockets

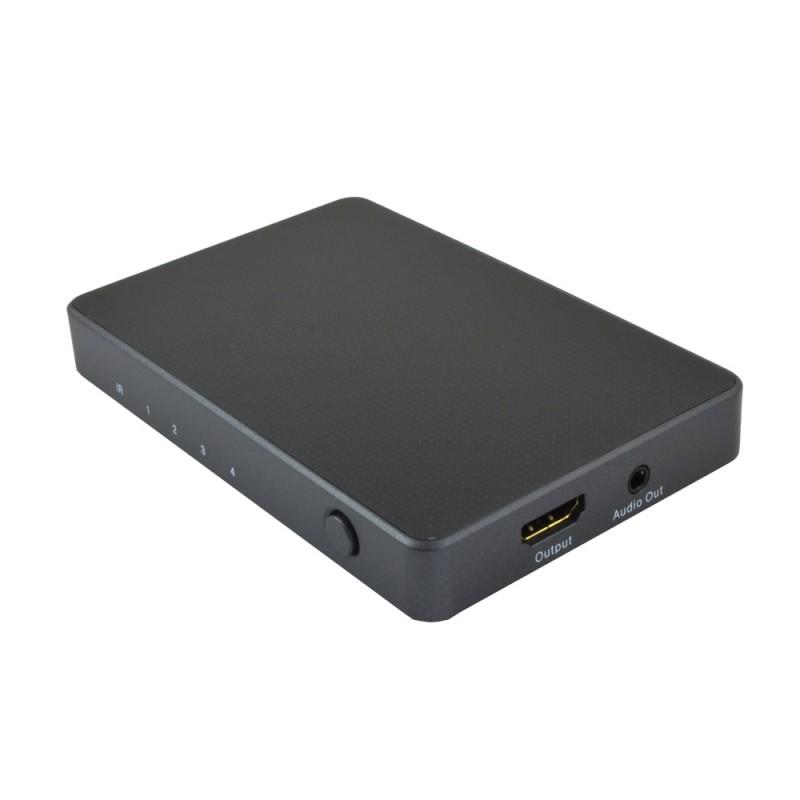

  • Output – one full size HDMI socket
  • 3.5mm jack for stereo audio output (when used with LPCM inputs only)
  • 3D compatible up to 1080p @ 60Hz
  • Input/Output Resolution


  • Supports 4k2k @60Hz with 12-bit RGB/YCbCr 4:4:4/YCbCr 4:2:2
  • Supports 1080p @ 120Hz
  • Supports 480i – 1080p at 50/60fps
  • Supports all audio formats including lossless audio
  • LPCM 2, 5.1, 7.1ch
  • Dolby Digital DTS5.1
  • Dolby Digital+
  • Dolby True HD
  • DTS-HD Master Audio
  • Dolby Atmos
  • DTS:X


  • Power supply DC 5V (supplied with UK plug)
  • Power consumption 1W
  • Size each 121mm x 79mm x 16mm
  • Weight each 195g
  • Case colour – grey
  • 12 Month Warranty

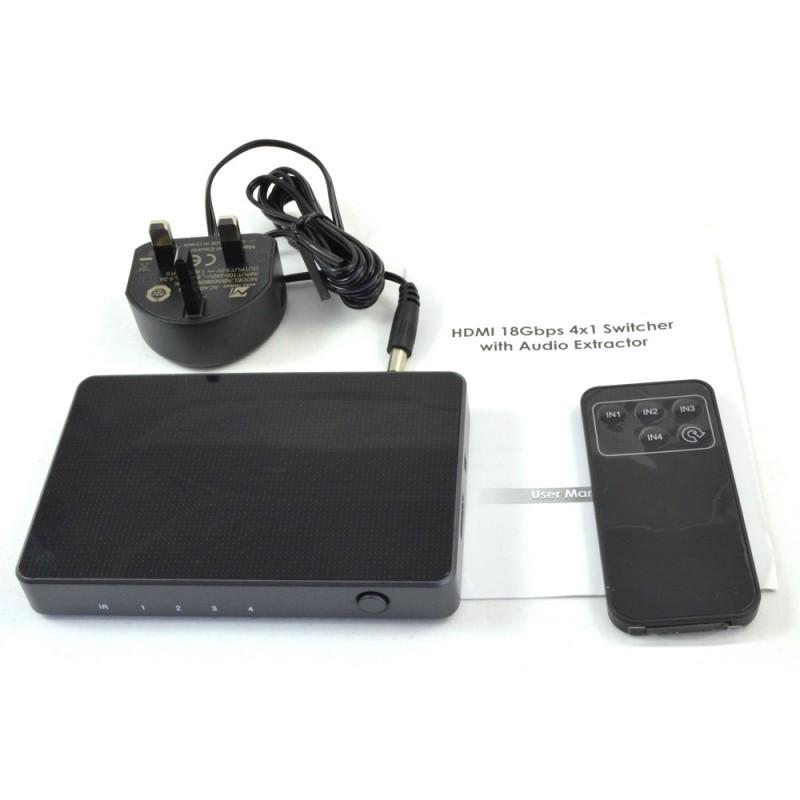

HDMI 4 port switch
Remote Control with Battery
User Manual
UK 3-pin power Supply
