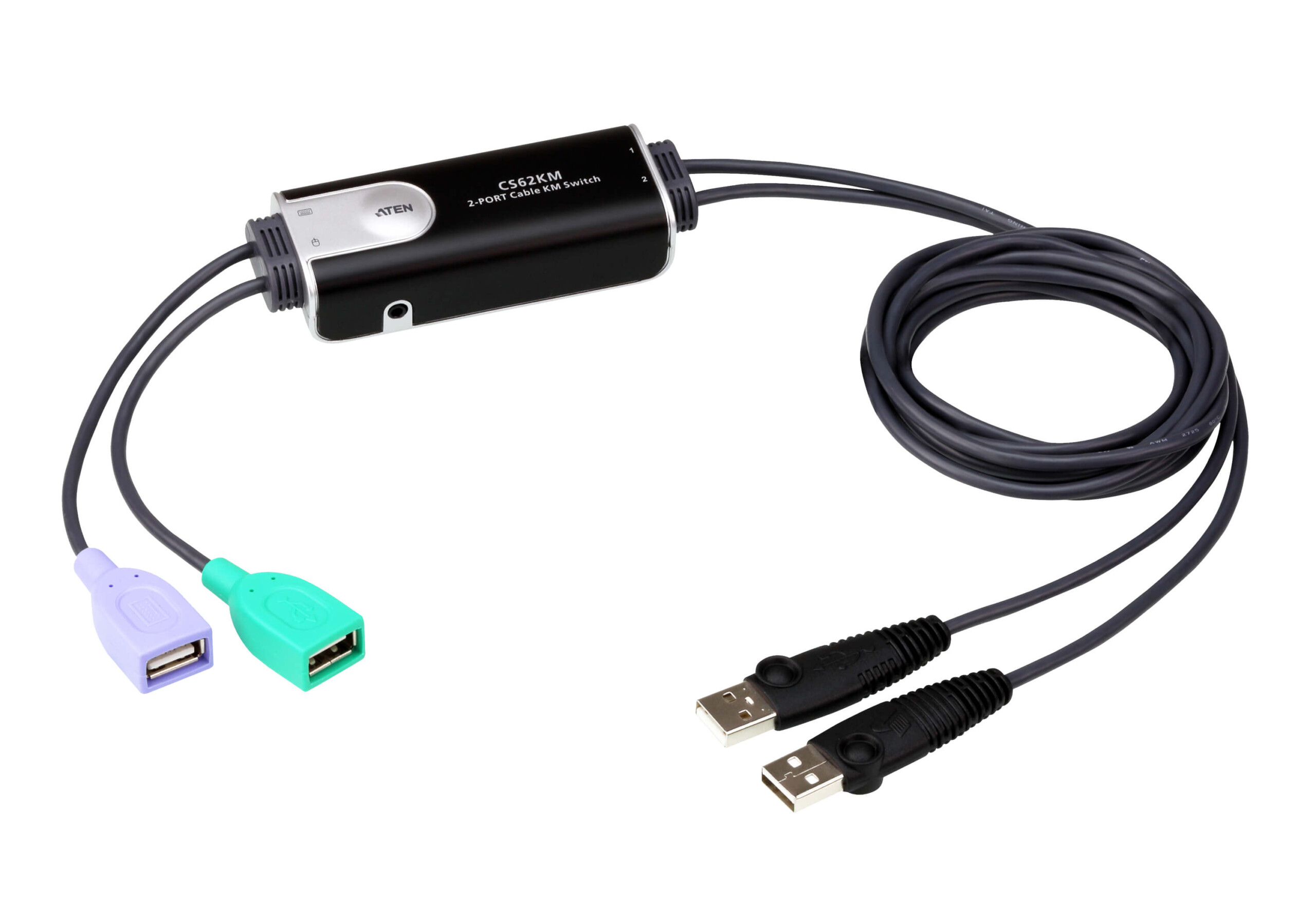

CS62KM 2-port USB Boundless Cable KM Switch

£99.00 inc VAT

The CS62KM is a 2-Port USB KM Switch that enables users to control up to 2 computers with a single keyboard and mouse. It features:

  • Single USB keyboard and mouse control up to 2 computers
  • Computer selection via remote port selector, hotkey, mouse cursor, and mouse wheel
  • Bus-powered – no external power adapter required
  • Works with Windows, iOS, Android, macOS, and Linux operating systems



Data Sheet

Manual

SKU: CS62KM-AT Categories: , , , , Tags: , , ,

Description

The CS62KM is a handy cable KM switch expediting access to two computers via one keyboard/mouse console. Its compact yet multifunctional design allows a space-efficient desktop setup for a smooth user experience. Furthermore, switching between computers can be as flexible as the push of a hotkey/button or a mouse click. The CS62KM is ideal for multitasking in any industry where hybrid workflows can be simplified to uplift productivity.

Space-Efficient Desktop Uplifts Productivity

The compact design is helpful to expanding desktop workspace while keeping it tidy and organized for improved productivity.

Features

  • The ATEN CS62KM is a 2-port USB Cable KM Switch that enables users to control up to 2 computers with a single keyboard and mouse. The CS62KM offers various innovative port selection methods for users to switch between the connected computers via remote port selector, keyboard hotkey, mouse cursor, and mouse wheel.

    When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. In addition to making multitasking across two displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.

    One further advanced feature of the CS62KM includes buspowered mode which means no external power adapter is required. CS62KM simplifies administrative tasks, saves space, and increases work productivity, which is especially suitable for complex multitasking applications in control rooms across all industries.



    • Single USB keyboard and mouse control up to 2 computers
    • Computer selection via remote port selector, hotkey, mouse cursor, and mouse wheel1
    • No software required
    • Firmware upgradable
    • Supports USB hot-plugging
    • Bus-powered – no external power adapter required2
    • Works with Windows, iOS, Android, macOS, and Linux operating systems3Note:
      1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
      2. The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to two computers to get sufficient power supply.
      3. The boundless switching only supports on Windows operating system.

Specifications

Computer Connections 2
Port Selection Hotkey, Mouse Wheel, Mouse Cursor, Remote Port Selector
Connectors
Console Ports 2 x USB Type A Female
KVM (Computer) Ports 2 x USB Type A Male
Remote Port Selector 1 x 2.5mm Audio Jack Female
LEDs
Selected 2 (Green)
Cable Length
Console 0.15 m
Computer 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse USB
Power Consumption DC 5V:0.74W:7.7BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.12 kg ( 0.26 lb )
Dimensions (L x W x H) 8.45 x 3.40 x 2.21 cm
(3.33 x 1.34 x 0.87 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x CS62KM 2-Port USB Boundless Cable KM Switch
  • 1x Remote Port Selector
  • 1x User Instructions
