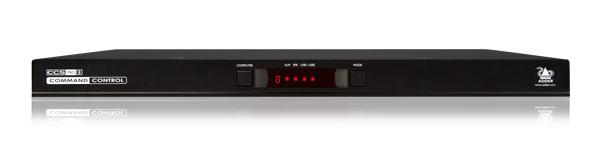

CCS-PRO8 Adder 8 Port Comand & Control Switch

The ADDER® CCS-PRO8 is a Command and Control Switch which enables users to interact with up to eight computers using a single keyboard and mouse. The operator can simply move the cursor across screen borders to instantly select the computer they need to control providing the experience of a single desktop, saving both time and desk space.

Data Sheet

Manual

£1,074.00 inc VAT

Compare

The Adder CCS-PRO8 enables users to interact with up to 8 computers using a single mouse. The operator can simply move the cursor across screen borders to instantly select the computer they need to control, providing the experience of a single desktop – a great saving in both time and desk space.

  • Adder’s multi-monitor Free-Flow technology: switch between target computers by moving the mouse pointer from screen to screen without having to install any additional software
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
  • Multiple switching options: instant switching via one of seven different methods: Free-flow; keyboard hotkeys; remote control; API; mouse buttons; front panel button; and serial control
  • External API control: with an open API, the unit can be easily set up and integrate into third party systems
  • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
  • Power redundancy: dual power inlets are available for mission critical control
  • Screen Illumination Module: an optional illumination module, the CCS-XB, is available to identify, with a LED indicator, which screen is being controlled

Approvals / Compliance

  • CE
  • FCC

Standards

USB 2.0

Cable Requirements

For connection to CCS-XB LED illumination module – 10p10c connector via cable VSC46

AB USB cable to connect to computer and 3.5mm audio cable

Environmental

0 to 40ºC / 32 to 104ºF

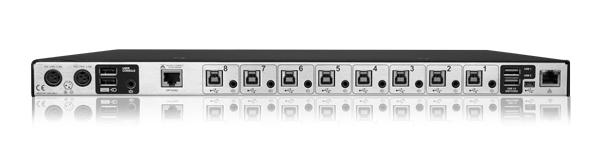

Connectors – Local Unit

10 x 6P6C connecters for the CCS-LED modules. 10P10C connector x 1, for upgrade cable or remote control RC4 4-button switch or RC8 8-button switch

Audio 3.5mm in x 8

USB type B x 8

All computers equipped with USB2.0 connections

Audio 3.5mm out x 1, USB type A x 2 (Console- USB2.0 Low and Full Speed), USB type A x2 (Enumerated USB2.0)

Mechanical

Robust metal construction. 433mm/17” (w), 30mm/1.2” (h), 158mm/6.2” (d), 1.57kg/3.5lbs

Power

Toby 3 pin jack x 2 (one power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter. 12VDC, 18W output from power adapter

Software

All known operating systems for single screens. Free-Flow works by reporting absolute mouse coordinates. Free-Flow Configuration and firmware upgrade programs are available for use with Windows only.

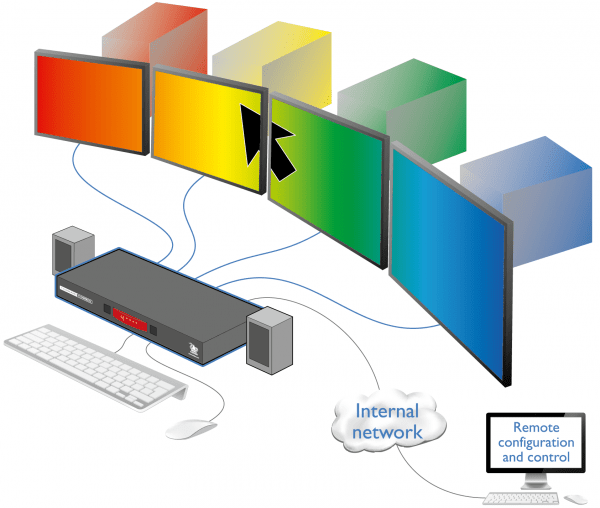

Seamless switching with Adder Free-Flow technology

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. Unlike software-only variants, no software or networking is required on your mission critical computers for Free-Flow to work.

Improved desk ergonomics

With only one keyboard and mouse required to operate four computer systems, the desk space can be made more ergonomically effective and reduces the time taken for operators to multiplex to different systems.

Multi-Monitor Free-Flow

The system is able to support up to Eight monitors per computer. To enable Free-Flow on multi-monitor computers, a driver must be installed on the target computer. This feature is currently available for Windows computers only.

External control options

The unit can be controlled and switched via hotkeys, mouse clicks, Ethernet, RS232 or remote 3 button mouse. With the open API, the unit can be easily set up and integrated into 3rd party systems.

Instant switching with True USB Emulation

Adder’s True USB Emulation technology overcomes limitations of other KVM switches by emulating the true character of the connected devices to all the computers simultaneously. This means that you can use the extra function keys, wheels, buttons and controls, without sacrificing switching times.

Independent simultaneous device selection

Switching options enable you to use the keyboard and mouse on one computer whilst your USB peripherals and speakers are independently connected to different computers. You can of course still switch all the connected devices to any one of the connected computers.

Screen illumination module

The CCS-XB illumination module is an optional accessory which connects to the CCS-PRO8. It gives users the option to have a LED indicator positioned on each screen to identify which screen is currently controlling. The color and intensity can be controlled for each screen. A maximum of ten LED indicators can be supported.

Redundant power

For mission critical applications, dual power inlets are now available.
