CS9138 Aten 8-Port PS/2 KVM Switch

£239.00 inc VAT

Aten CS9138 8-port PS2 & VGA KVM switch will allow a user with one PS2 keyboard, one PS2 mouse and one VGA monitor to control 8 computers with the same connections. It is cascadable up to 3 levels – provides up to 64 computers and computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD). CS9134 supports superior video quality: up to 1920 x 1440; DDC2B and it is rack mountable in 19″ (1U) system rack.

Data Sheet

Manual

Description

CS9138 is a KVM Switch with built-in PS/2. It can control 8 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the console keyboard. CS9138 is the simplest and most convenient most convenient solution for multi-computer management. Moreover, it supports 3-tier connection via cascade. With 73 sets of CS9138, users can control 512 computers.

  • One PS/2 console controls 8 computers.
  • Cascadable up to 3 levels – provides up to 512 computers.
  • Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).
  • Keyboard and mouse emulation for error free booting.
  • Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
  • OSD automatically adjusts to resolution changes.
  • Auto Scan function to monitor computer operation.
  • Superior video quality: up to 1920 x 1440; DDC2B.
  • Available in silver and black.
  • Special design for easy stacking.
  • Rack mountable in 19″ (1U) system rack.
  • Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
  • For more information about KVMs which can connect to CS9138, see Compatible KVM Table.

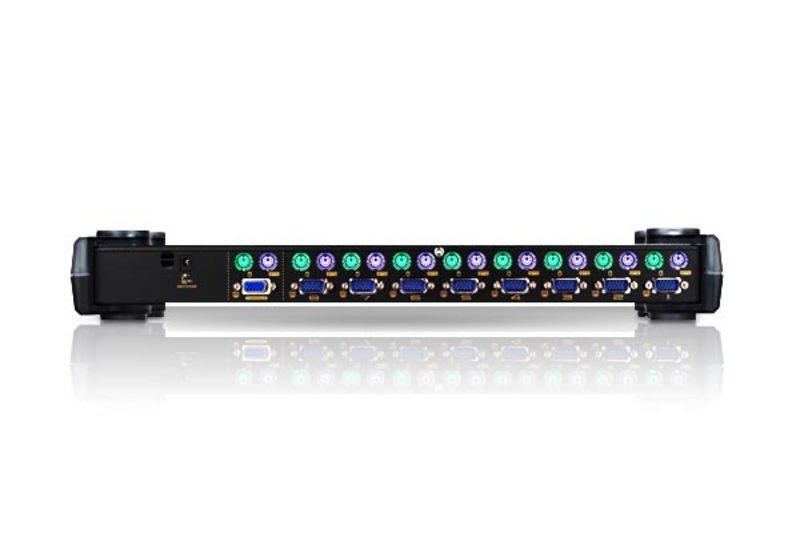

Computer Connections
Direct 8
Maximum 512 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 8 x 6-pin Mini-DIN Female (Purple)
8 x 6-pin Mini-DIN Female (Green)
8 x HDB-15 Male (Blue)
Power 1 x DC Jack (Black)
Switches
Power 8 x Pushbutton
LEDs
Online 8 (Green)
Selected 8 (Orange)
Power 1 (Blue)
Emulation
Keyboard / Mouse PS/2
Video 1920 x 1440; DDC2B
Scan Interval 3,5,10,15,20,30,40,60 Seconds
Power Consumption DC9V, 1.08W
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.85 kg
Dimensions (L x W x H) 43.72 x 16.29 x 4.40 cm
  • 1x CS9138 8-Port PS/2 KVM Switch
  • 1x Power Adapter
  • 1x Rack Mount Kit
  • 1x User Instructions
