4K-725 Smart-e 4K 70m HDBaseT extender pair for HDMI, RS232, Infrared (POC) with HDCP 2.2

£469.00 inc VAT

The Smart-e 444K-725 is a HDBaseT transmitter/receiver pair capable of transmitting UHD HDMI signals up to 4K UHD resolutions. The extender pairs provide the pass through of wide band bi-directional InfraRed signals and full duplex RS232 up to 115Kbaud. Whilst POH power (24V) can be sent by either the TX or RX through the Cat 6 cable to provide power to the re-mote end. All that is required is a single Cat6 cable connection to provide all these features.

Data Sheet

Description

The 4K-725 is a flexible and cost effective solution to extending HDMI, bi-directional IR, full duplex RS232 and POC (remote power over cable). Consisting of a transmitter/receiver pair, both units are compact and come with IR accessories. By incorporating the Lite HDBaseT technology 4K UHD HDMI signals can be transmitted up to 70m away.

The 4K-725 is a HDBaseT transmitter/receiver pair capable of transmitting UHD HDMI signals up to 4K UHD resolutions. The extender pairs provide the pass through of wide band bi-directional InfraRed signals and full duplex RS232 up to 115 Kaud. Whilst POH power (24V) can be sent by either the TX or RX  through the CAT 6/6A cable to provide power to the remote end. All that is required is a single CAT 6/6A cable connection to provide all these features.

The 4K-725 is asy to install, use an inexpensive CAT 6-8 cable that can reach up to 70m• It support HDMI up to 297 MHz TDMS clock with HDCP/EDID/DDC transparent link, uses 1 x CAT 6/6A STP/FTP cables, supplies 24V remote power (POC) to either end uses HDBaseT technology with status LEDs.

The 4K-RX725 or 4K-TX725 can connect to any other product in the 4Konnect range as an extender into or out of a matrix or splitter.

4K-725 Features:

  • Easy to install, expensive CAT 6/6A cable
  • Outputs reach up to 100m
  • Support HDMI up to 297 MHz TDMS clock
  • HDCP/EDID/DCC transparent link
  • HDMI resolutions 4K, 2K & 1080p
  • HDCP 2.2 compatible
  • Full duplex RS232 passthrough
  • Bi-directional IR pass through
  • 1 x CAT 6/6A STP/FTP cables
  • Supplies 24V remote power (POC) to either end
  • Uses HDBaseT technology
  • Status LEDs
  • Compact TX/RX unit – 18mm high
  • Secure DC connection

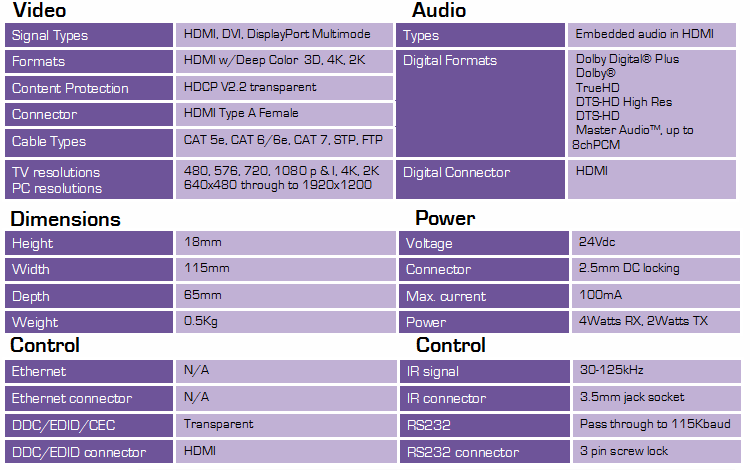

4K-725 Specifications:
