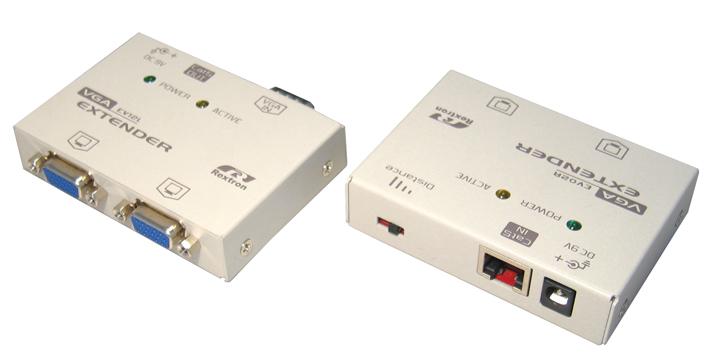

EV214 Rextron CAT5 SVGA Extender

£95.00 inc VAT

Rextron EV214 SVGA up to 150m over CAT5 Extender over a single CATx cable. It is ultra compact and supports a maximum resolution of up to 1024×768.

Description

Rextron EV214 SVGA CAT5E extender can be used up to a maximum distance of 150 Mtrs (492ft) away, and support resolution up to 1024 x 768. It has a built-in noise suppression circuit, which eliminates signal loss for superb SVGA quality. Because they can be used with unshielded twisted pair (UTP) CAT5E cable, they provide a cost effective way to extend your Video and Audio signals (depending on model) by using CAT5E.

EV214 is simple to use, just connect the local unit to your computer, connect a cat5 cable to local unit and remote unit then connect your remote monitor to remote unit. Ensure both power supplies are used and both of the units Power LED and Active LED’s are lit. If picture quality bad, use the distance selector to adjust.

Resolutions are dependent on distance with a max resolution of 1024 x 768 @ 150ms.

•Supports SVGA (KVM-VGAXT)
•Supports a maximum distance of 150 Mtrs (492ft)
•SVGA resolution up to 1024×768 @ 150mtrs
•Ultra Compact
•Compatible with CAT5, CAT5E and CAT 6 UTP Cables
•LED Power and Activity indicators
•Gain control on Remote Unit
•Local and Remote units supports two VGA outputs. (KVM-VGAXT)

Warranty: One year

Contents

  • Local & remote unit
  • 2 x Power supplies
  • 1 x User manual
