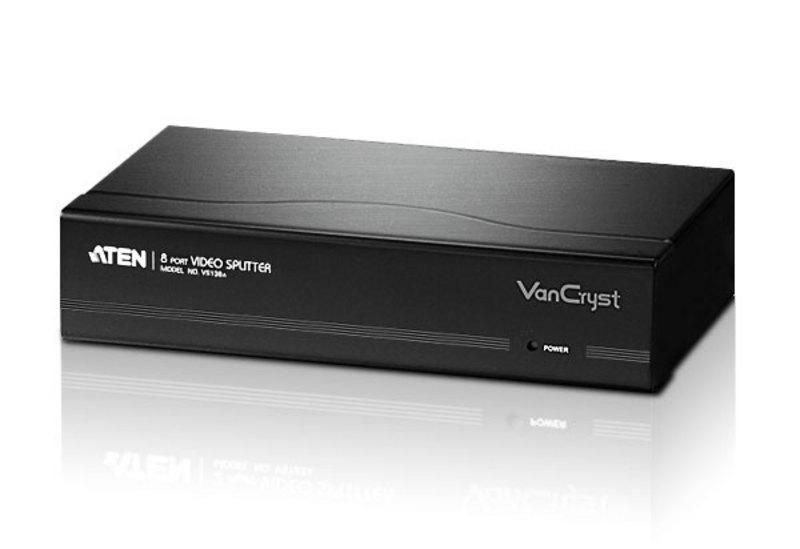

VS138A Aten 8-Port Video Splitter

£129.00 inc VAT

Aten VS138A 8-Way VGA splitter dupkicates a video signal from one source to 8 output displays and supports up to 450 MHz bandwidth with long distance transmission up to 30m. It features superior video quality – up to 2048 x 1536 and supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors.

Data Sheet

Description

The VS138A Video Splitter is a boosting device that duplicates a video signal from one source to 8 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30m, making it excellent for public broadcast systems.

To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS138A is your best choice.

Applications include:
• Financial – the remote display of stock market information
• Education – the remote display of lectures and lessons to halls and classrooms
• Business – the remote display of addresses to overflow rooms; video conferencing; and demos

  • One video input to 8 video outputs
  • Supports up to 450 MHz bandwidth
  • Cascadable to 3 levels – provides up to 512 video signals
  • Long distance transmission – up to 30m *
  • Superior video quality – up to 2048 x 1536
  • Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
  • Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
  • All-metal casing* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

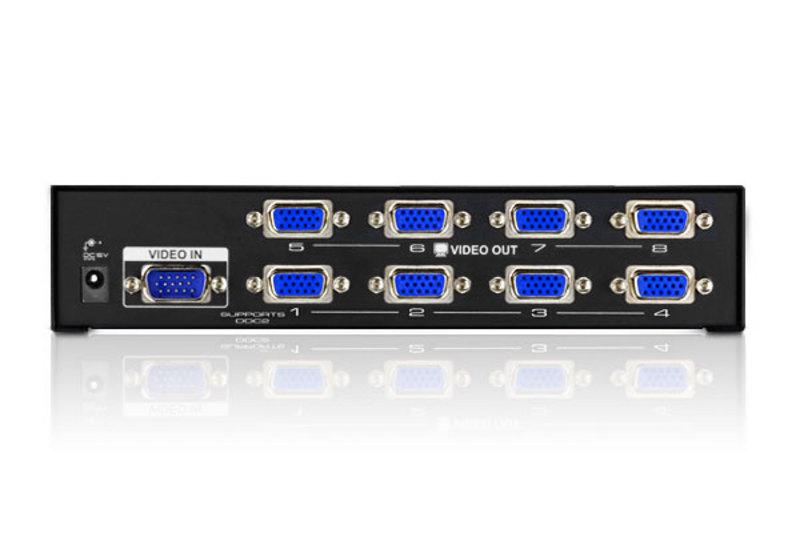

Video Input
Interface 1 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 8 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 450 MHz
Max. Resolution Up to 2048 x 1536
Max. Distance Up to 30 m
Power
Connectors 1 x DC Jack
Consumption 5 VDC, 2.25W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.69 kg
Dimensions (L x W x H) 20.00 x 7.51 x 4.40 cm
  • 1x VS138A Video Splitter
  • 1x Power Adapter
  • 1x User Instructions
