VE892 Aten HDMI Fiber Optic Extender up to 20km

£1,196.00 inc VAT

Aten VE892 HDMI extender up to 20km extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable, has built-in 8KV/15KV ESD protection, features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc, uses one fiber optic cable to connect the local and remote units, supports full frequency IR signal from 30KHz to 60KHz and superior video quality – up to 1080p@60Hz.

Data Sheet

Manual

Description

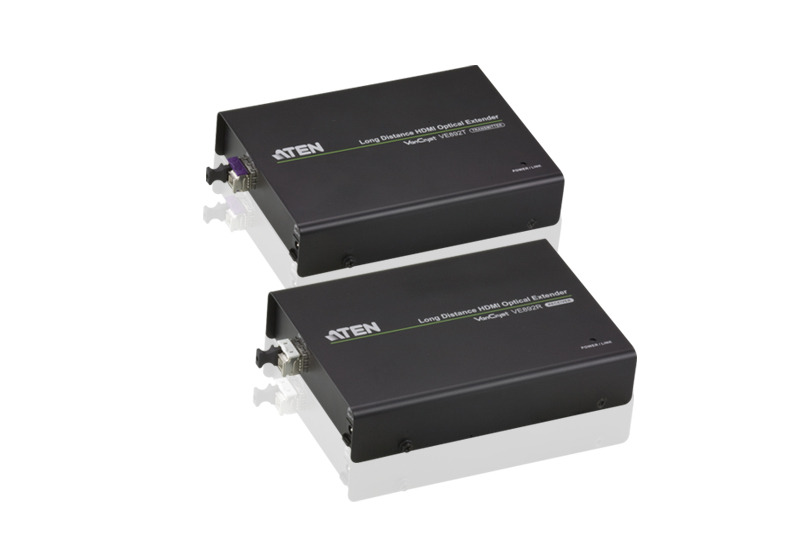

The VE892 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.

The VE892 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).

The VE892 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.

  • Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
  • Very long distance transmission – up to 20km
  • HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
  • Superior video quality – up to 1080p@60Hz
  • Supports full frequency IR signal from 30KHz to 60KHz
    (The IR receiver cable included with the package only supports 30 KHz to 56 KHz)

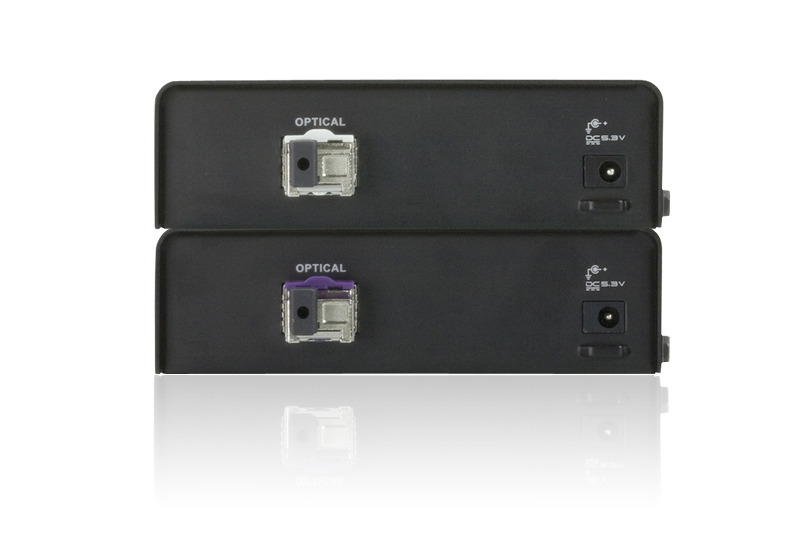

  • Uses one fiber optic cable to connect the local and remote units
  • Supports wide screen formats
  • Built-in 8KV/15KV ESD protection
  • Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
  • Supports bi-directional IR signal transmission, one way at a time
  • Rack-mountable
  • Hot-pluggable

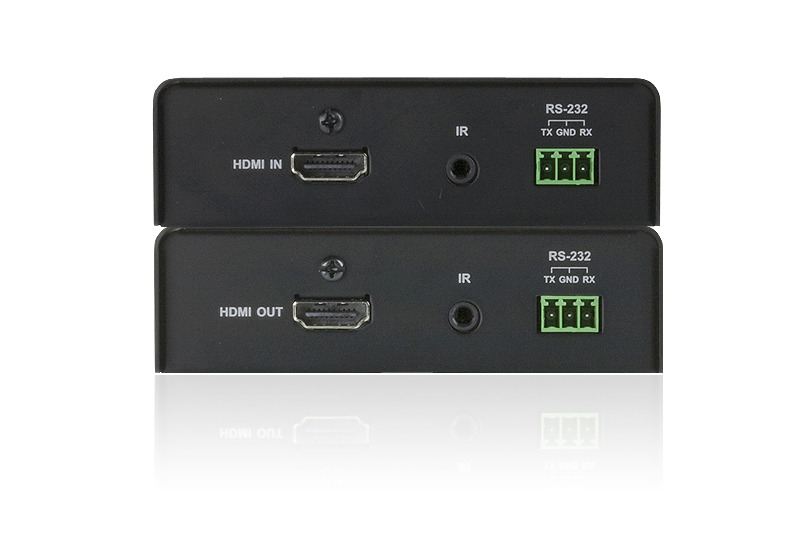

Video Input Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max Distance Up to 1.8 m
Video Output Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible
Max resolutions / Distance ** Up to 1080p@20km
Audio Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8,
Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black);
30~60 KHz full range transmission
Power Connector: 1 x DC Jack
Consumption: 5.3 VDC, 5.1W
Environment Operating Temp. 0-50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH, Non-Condensing
Physical
Properties
Housing Metal
Weight 0.42 kg
Dimensions
(L x W x H)
14.69 x 10.30 x 3.00 cm
Carton Lot 5 pcs

  • 1x VE892T
  • 1x VE892R
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Mounting Kit
  • 2x Power Adapters
  • 1x User Instructions
