VE170Q Aten A/V Over Cat 5 Extender with Deskew

£259.00 inc VAT

Aten VE170Q VGA over CAT5 extender with Deskew extends the signal uo to 300m with superior video quality up to 1920×1200 @ 60Hz (30m);1600×1200 @ 60Hz (150m);1024×768@ 60Hz (300m). It features adjustable gain/compensation control and has a built-in 8KV/15KV ESD protection.

Data Sheet

Description

The VE170Q with Deskew A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and VE170RQ Receiver unit, is a cost-effective and efficient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter’s input source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.

The VE170Q features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.

Transmitter Unit:
VE170T A/V Over Cat 5 Transmitter

Receiver Units:

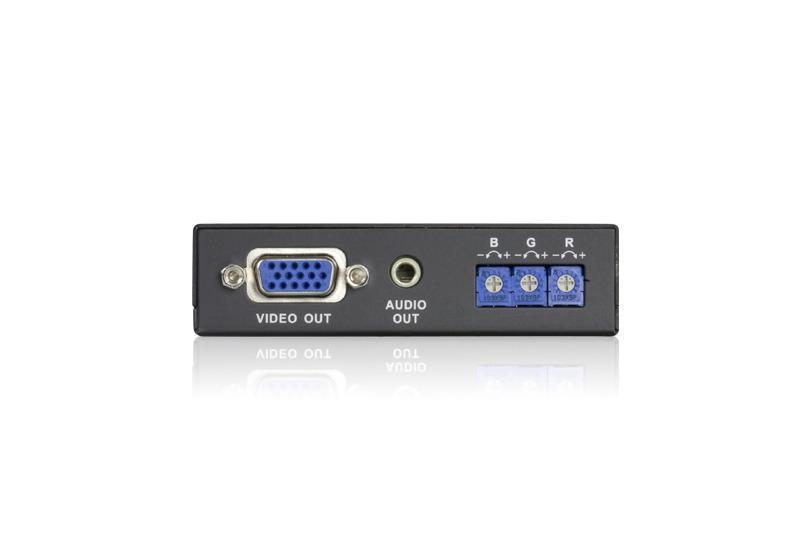

VE170RQ A/V Over Cat 5 Receiver with Deskew

  • Uses Cat 5e cable to connect the transmitter and receiver uints
  • Supports one local and one remote display
  • Long distance transmission up to 300 m
  • Deskew Function (VE170RQ) – allows you to synchronize the time delay of RGB signals to compensate for distance
  • Superior video quality –
    VE170R: 1920×1200 @ 60Hz (30 m);1600×1200 @ 60Hz (150 m);1024×768@ 60Hz (300 m)
    VE170RQ: 1920×1200 @ 60Hz (150 m);1280×1024 @ 60Hz (300 m)
  • Audio enabled (mono)
  • Adjustable gain/compensation control
  • BBuilt-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard
Function VE170R VE170T
Video Input
Interface N/A 1 x HDB-15 Male (Blue)
Impedance N/A 75 Ώ
Max. Distance N/A 1.8 m
Video Output
Interface 1 x HDB-15 Female (Blue) 1 x HDB-15 Female (Blue)
Impedance 75 Ώ 75 Ώ
Video
Max. Bandwidth 300 MHz 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m; 1024 x 768@300m Up to 1920 x 1200@30m; 1024 x 768@300m
Audio
Input N/A 1 x Mini Stereo Jack Female (Green)
Output 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Green)
Power
Connectors 1 x DC Jack 1 x DC Jack
Consumption 5.3 VDC, 1.11W 5.3 VDC, 0.9W
Environmental
Operating Temperature 0-50°C 0-50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.24 kg 0.24 kg
Dimensions (L x W x H) 12.77 x 9.04 x 2.26 cm 12.77 x 9.04 x 2.26 cm
  • 1x VE170T + VE170RQ
  • 1x VGA/Audio Cable (1.8 m)
  • 2x Power Adapters
  • 1x Mounting Kit (2 pcs)
  • 1x User Instructions
