SY-USB50-SET S Y Electronics USB 2.0 CAT 5 Extender (Up to 50m)

£182.16 inc VAT

The SY Electronics SY-USB50-SET is a USB 2.0 over CAT5 extender that can extend a USB signal up to 50m. It supports all USB 2.0 or below, to 480 Mbps max, supports Bulk, Control, Interrupt, and Isochronous Transfers.  It is perfect for Keyboard, mouse, video, audio, mass storage, USB Cameras and only one PSU at the receiver end.

Manual

Description

The SY Electronics SY-USB50-SET is a USB 2.0 over cat6 Extender to 50m – The Sy-USB50-set extends all USB 1.1/2.0 data formats up to 50m over a single cat6 cable.  All USB transfer types (Bulk, Control, Interrupt, and Isochronous) are supported up to 480Mbps.  All HID devices such as Keyboard/Mouse as well as Mass storage devices, USB camera, Audio streams are supported.

There is no driver software installation or any configuration required – Simply Plug & Play.

The receiver unit provides 2x USB-A connectors for convenient connection to the USB devices.
Housed in small metal case, this is a very reliable USB 2.0 over cat6 extender for all USB devices.

SY-USB50-SET Features:

  • USB 2.0 over cat6 extender to 50m
  • Supports all USB 2.0 or below, to 480 Mbps max.
  • Supports Bulk, Control, Interrupt, and Isochronous Transfers
  • Perfect for Keyboard, mouse, video, audio, mass storage, USB Cameras
  • Only one PSU at the receiver end
  • Simple Plug and Play, no drivers / configuration required
  • Compact design for ease of use and flexibility

PART NUMBER: USB-50 Set

Transmission Distance
  Up to 50m

CONNECTORS

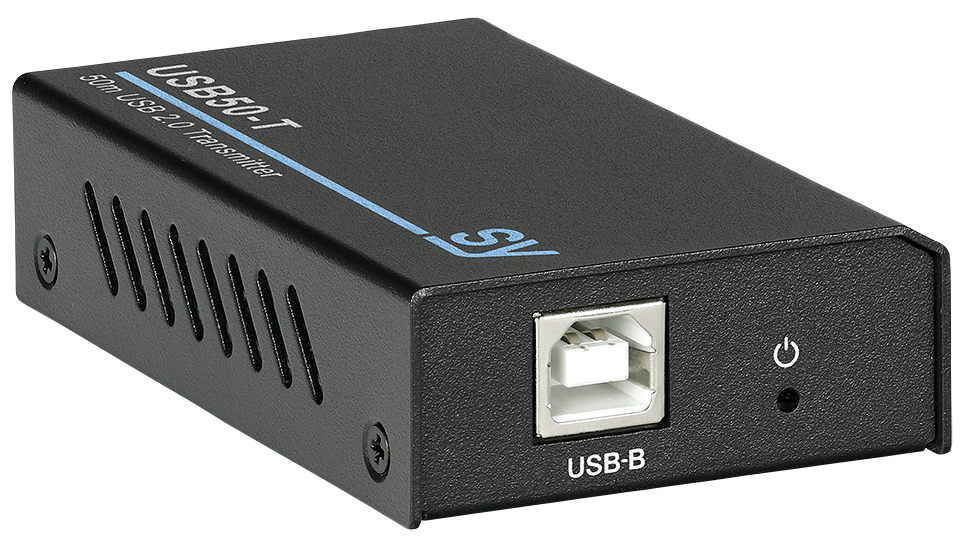

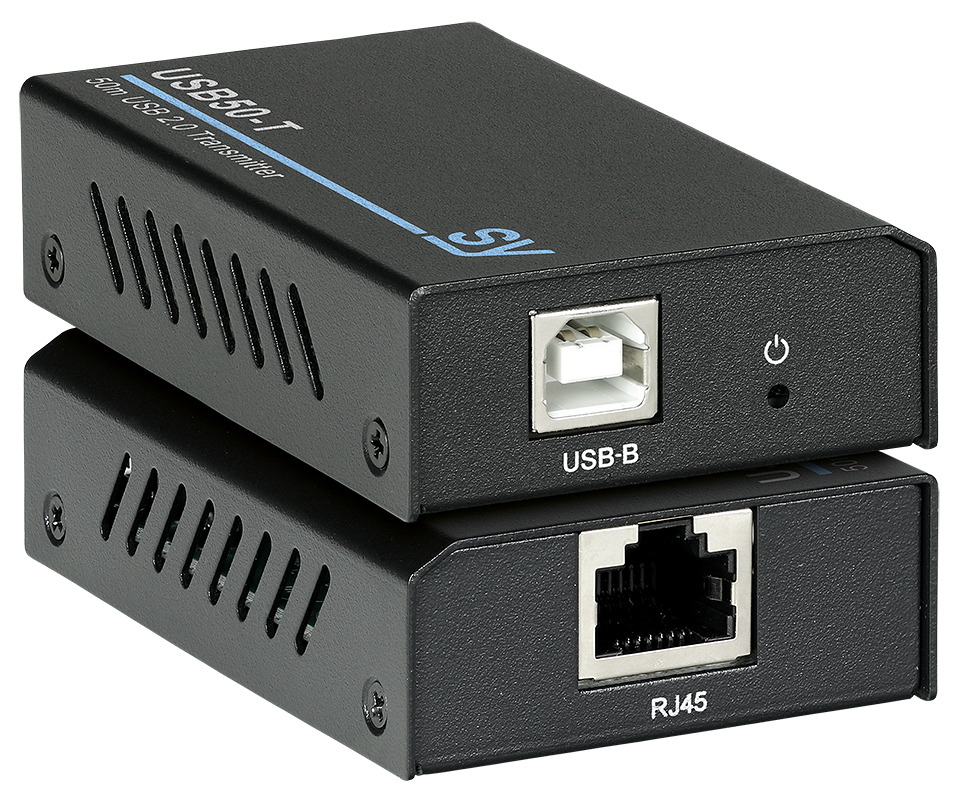

SY-USB-50-T Transmitter
1x USB-B port
1x RJ45 CAT6 port
1x 5V DC Power input (2.1mm barrel jack)

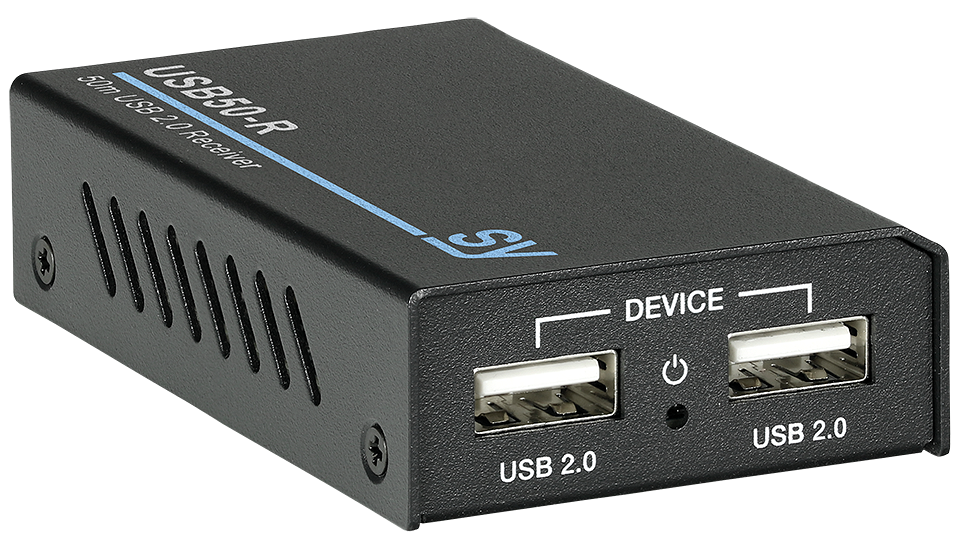

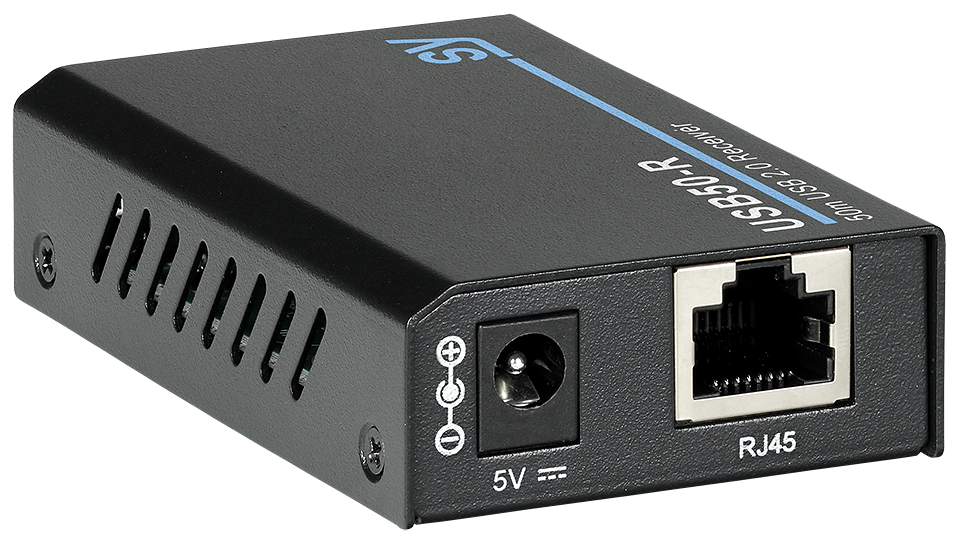

SY-USB-50-R Receiver
2x USB-A ports
1x RJ45 CAT6 port
1x 5V DC Power input (2.1mm barrel jack)

POWER
Power Consumption:
0.7W – Transmitter
1.0W – Receiver
Power Supply:
5V 1A DC – (2.1mm barrel jack)

ENVIRONMENTAL
Operating Temperature Range:
0 ~ +40C (32 ~ 104F)
Operating Humidity Range:
20 ~ 90% RH (Non-condensing)

PHYSICAL
DIMENSIONS (WDH) Each unit:

82 x 20 x 49mm
WEIGHT (net) Each unit:
100g

WHAT’S IN THE BOX
1x SY-USB-50-T Transmitter
1x SY-USB-50-R Receiver
1x 1m long USB-B to USB-A cable
1x 5V DC PSU
1x User Manua

WHAT’S IN THE BOX
1x SY-USB-50-T Transmitter
1x SY-USB-50-R Receiver
1x 1m long USB-B to USB-A cable
1x 5V DC PSU
1x User Manual
