SY-MSUHD-88 S Y Electronics 8×8 18G 4K Matrix

£2,295.00 inc VAT

Th S Y Electronics SY-MSUHD-88 is a true 4K HDMI matrix switcher that is capable of switching HDMI signals up to 18GBPS.  It allows any source (BluRay player, HD DVD player, satellite receiver, game station, etc.) to be shown on the any of the displays simultaneously, no matter whether the source is HDCP compliant or not. The matrix offers EQ and amplification of outputs for smoth switching, can show the same or different sources at the same time no matter whether the source is HDCP compliant or not and offers four control mode options: front panel buttons, RS232 commands , LAN control, and IR control either locally or by using the IR extension kit.

User Manual

Description

The SY-MSUHD-88 is an 8X8 true 4k HDMI matrix switcher that is capable of switching HDMI signals up to 18GBPS. HDMI2.0, HDCP2.2 and video resolutions up to 4K are all fully supported. It allows any source (BluRay player, HD DVD player, satellite receiver, game station, etc.) to be shown on the any of the displays simultaneously, no matter whether the source is HDCP compliant or not.

The SY-MSUHD-88 offers a solution for digital entertainment centres, HDTV retail, show sites, data centre control, information distribution, conference room presentation, school and corporate training environments.

 Advanced EQ and amplification of outputs for smooth switching

 1080p to 4K up scaling and 4K to 1080p down scaling on each output

 Scaling allows the displaying of the same input image on displays with different native resolutions

 Advanced EDID management

 Allows up to eight HDMI source devices to be independently switched to eight HDMI monitors, HDTVs, or projectors

 The outputs can show the same or different sources at the same time no matter whether the source is HDCP compliant or not

 Supports high definition resolutions 4K60 4:4:4, 4K30, 1080P, 1080i, 720P and standard video format

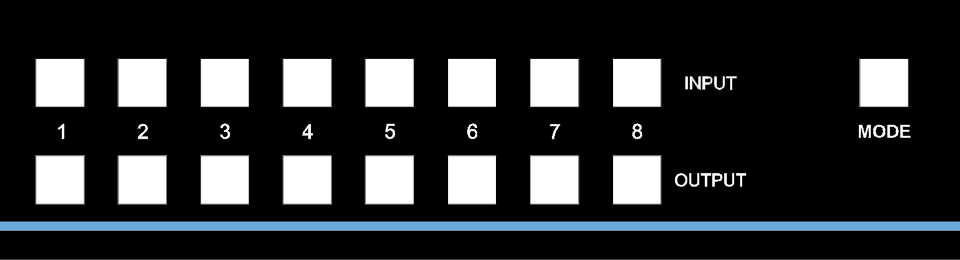

 Four control mode options: front panel buttons, RS232 commands , LAN control, and IR control either locally or by using the IR extension kit

 Full HDR support

 HDMI 2.0 compliant

 HDCP 2.2 compliant
