VM0808H Aten 8X8 HDMI Matrix Switch

£1,035.60 inc VAT

The Aten VM0808H 8×8 HDMI Matrix switch connects any of 8 HDMI sources to any of 8 HDMI displays and supports Long Distance Transmission up to 20 meters (24 AWG).  It features superior video quality – HDTV resolution of 480p, 720p, 1080i, and 1080p (1920 x 1080), VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200) and supports Dolby True HD and DTS HD Master audio.

Data Sheet

Manual

Description

The ATEN VanCryst™ VM0808H 8×8 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays,and view them in any arrangement.

The ATEN VanCryst™ VM0808H 8×8 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays,and view them in any arrangement.

As a matrix switch the VM0808H allows eight HDMI source devices to cross connect to eight HDMI displays at the same time, while independently controlling the output in any array possible, giving you the ultimate flexibility and control in any multi-display HDMI installation.

  • Connects any of 8 HDMI sources to any of 8 HDMI displays
  • Long Distance Transmission – supports up to 20 meters (24 AWG)
  • HDMI (3D, Deep Color) and HDCP compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • Easily switch between multiple sources and multiple displays

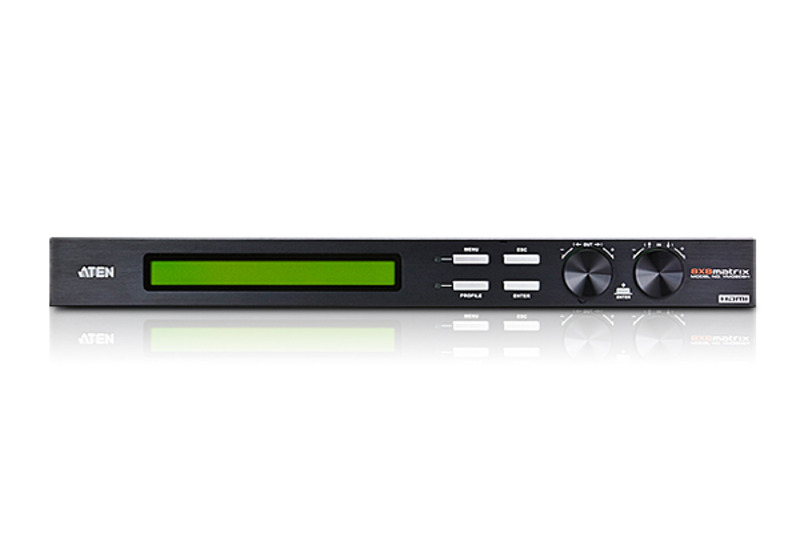

  • Front Panel Configuration:
    • Front panel LCD display
    • Tuner Dials and Pushbuttons
    • IR Remote Control
  • System Operation:
    • Serial controller
    • Browser Graphical User Interface (GUI)
  • Superior video quality – HDTV resolution of 480p, 720p, 1080i, and 1080p (1920 x 1080), VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
  • Features EDID Expert technology:
    • EDID Library with 14 default EDID configurations
    • Built-in EDID Mode selection
    • Copies a display’s EDID to selected source devices
  • Supports Dolby True HD and DTS HD Master audio
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • Feature EDID Expert technology to set up different confi gurations via different EDID modes
  • Power on Detection – If an HDMI sources is powered off, the VM0808H can automatically switch to the next powered-on source
  • Firmware upgradeable
  • Rack Mountable* Note: The VM0808H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

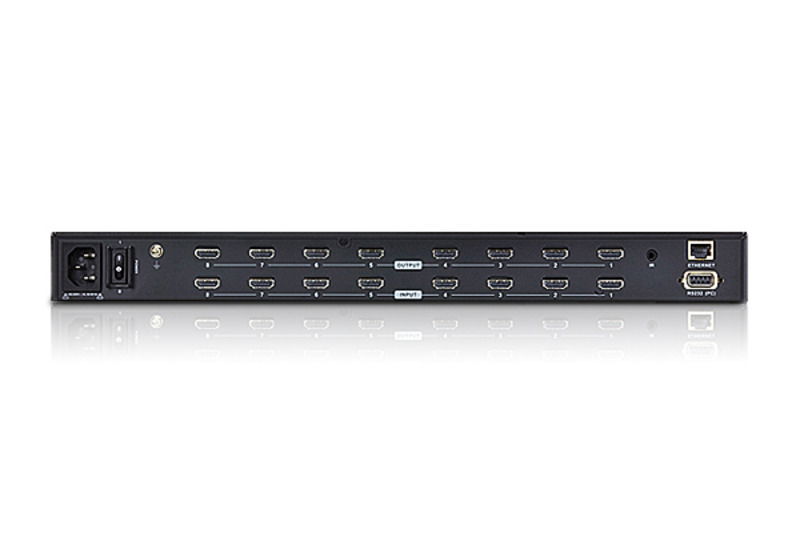

Video Input Interface 8 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max Distance 1.8 m
Video Output Interface 8 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max Distance 15 m
Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max Resolutions Up to 1080p
Max Distance Up to 15 m
Control RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1,
Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
EDID Settings EDID Mode: Default / Port1 / Remix
Power Connector: 1 x 3-Prong AC Socket
I/P Rating: 100-240 VAC; 50-60 Hz; 1.0A
Consumption: 120 VAC, 32W; 230 VAC, 34W
Environment Operating Temp. 0-50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH, Non-Condensing
Physical
Properties
Housing Metal
Weight 4.01 kg
Dimensions
(L x W x H)
43.24 x 27.12 x 4.40 cm
Carton Lot 1 pc

  • 1x VM0808H 8×8 HDMI Matrix Switch
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x Mounting Kit
  • 1x User Instructions
