SY-MFT62-SET S Y 4K 6 Inputs to 2 Outputs Multi-format HDBaseT Matrix Switch

£1,099.00 inc VAT

The SY Electronics SY-MFT62-SET is a 4K UHD 6-input to 2 output multi-format matrix switch with built-in HDBaseT transmitter and comes supplied with a 70m HDBaseT receiver (. It features 4 x HDMI, 1 x DisplayPort and one VGA inputs to one local HDMI output and 1 remote HDBaseT up to 70m away (HDBT-70-SLIM-EDGE-R HDBaseT receiver is included).  If you need help, please call us on 01372 450 794

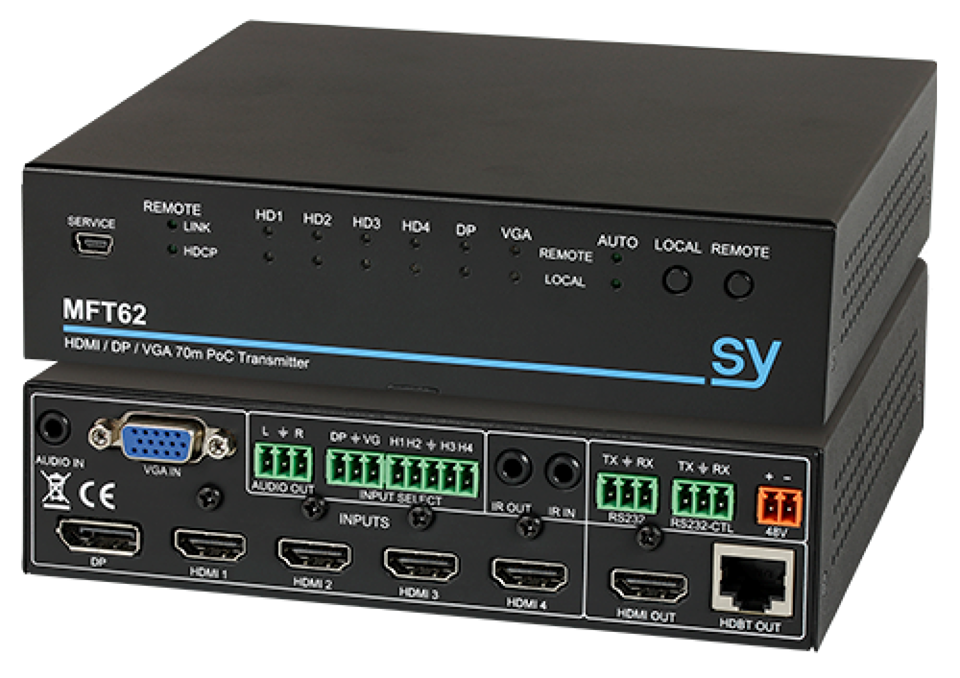

SY-MFT62-SET (  is a compact 4K UHD, 6 Input / 2 Output Multi-Format Switcher, with independent matrixed HDMI and HDBaseT outputs.

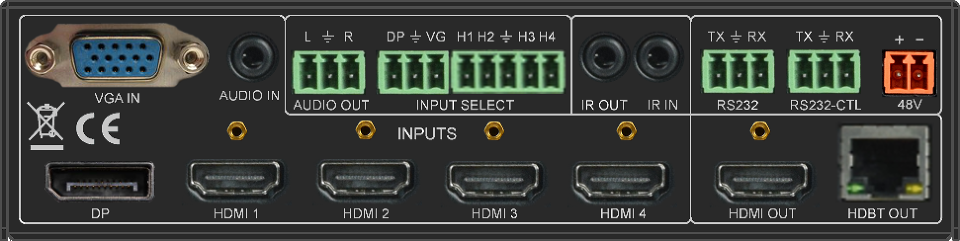

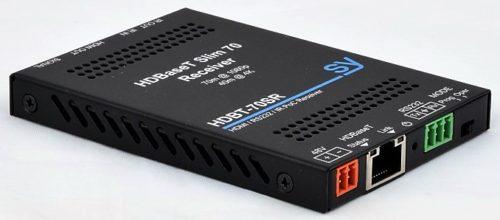

Inputs and Outputs – The 6 inputs consist of 4x HDMI, 1x VGA + Audio, 1x  Display Port input.  Outputs consist of 1x HDMI and 1x HDBaseT output.  When used with an HDBaseT receiver like our ‘Slim70’ (HDBT-70-SLIM-EDGE-R), it can transmit 1080p signals to 70, and 4K signals to 40m using a single Cat 6 cable.

Audio output – Audio can be de-embedded via an Analogue output using the 3x pin phoenix terminal connectors.  By default the audio is matched to the HDBaseT output, but can be changed to match the HDMI output by sending an RS232 command to the unit.

Matrix Switching – Any source can be routed to either or both of the outputs as you want.

Control – A choice of Front Panel buttons, IR, RS232 or external contact closures enables control over the unit.  Control over the HDBaseT link is bi-directional, with the ability to control the display from the source location and the source from the display location.  Infra-Red input and output ports are fitted to the rear of the chassis.

Auto Switching – Manual or Automatic source selection is controlled by front panel buttons or RS232 commands.

Contact Button Terminals – Rear mounted contact closure terminals are provided for connection of remote contact button panels.

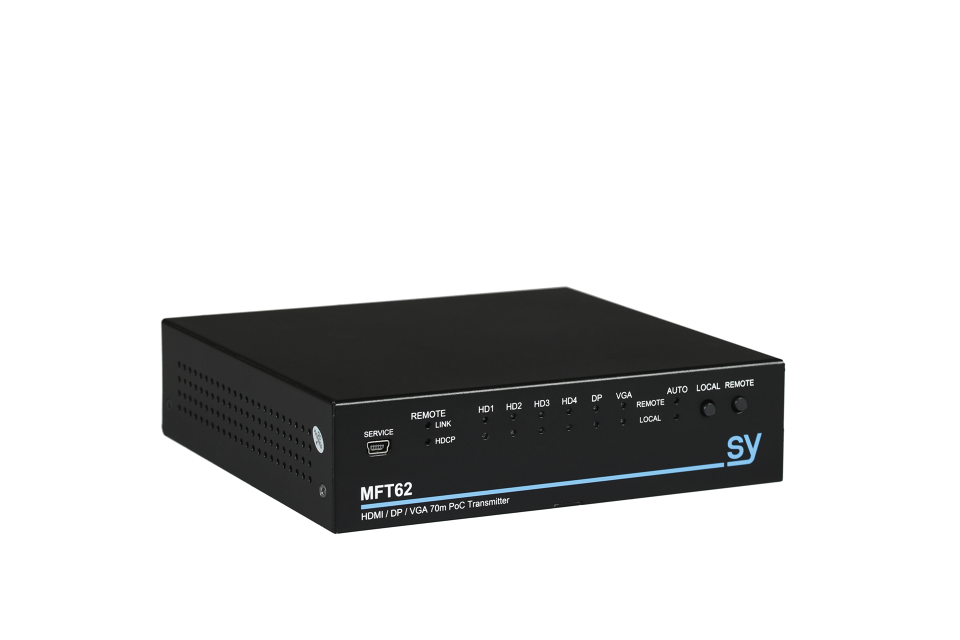

Source Status – The status of selected inputs can be read from the front panel mounted LED indicators

EDID – Extensive control is afforded by selecting one of the 24x built-in EDIDs, or you can choose to read an EDID from a connected display and stored onto one of the 3x user programmable EDID memory positions.

This unit is also available as the ‘MFT62-SET’ which is also supplied with our ‘Slim70’ HDBaseT receiver.
This device is well suited for use in Auditoriums, conference rooms and meeting room situations.

  • Inputs – 4x HDMI, 1x DisplayPort, 1x VGA inputs
  • Outputs – Independent HDMI and HDBaseT Matrix outputs
  • HDBaseT PoC powers remote Slim 70 Receiver
  • HDBaseT output to 70m @1080p or 40m @4K30
  • Auto input switching and monitor on/off options
  • Control: Front Panel, Bi-directional IR, RS232, contact closure
  • Independent RS232-CTL for device control
  • L/R de-embedded audio
  • Extensive EDID Management


HDMI Video Input/Output
VESA and SMPTE 480p to 2160p (4K UHD) with 3D.
All resolutions to:-
4096x2160p @60Hz 4:2:0 8bit
3840x2160p @30Hz 4:4:4 8bit
All PC resolutions to 1920×1200

VGA Video Input
The following VGA resolutions are supported:-
800×600      1024×768    1280×768   1280×800    1280×1024
1400×1050  1600×1200  1920×1080  1920×1200

HDMI Audio Input/output
Pass through of all HDMI audio formats including:-
  Dolby D (TrueHD)  DTS (HD-Master Audio)  PCM Channel count: 2.0 to 7.1
Sample rates:-
32 kHz  44.1 kHz  48 kHz  88.2 kHz  96 kHz  176.4 kHz  192 kHz

4x HDMI 2.0
1x DisplayPort
1x VGA
1x 3.5mm analogue stereo for VGA IP


1x HDMI 2.0
1x HDBaseT (IPoC)
De-embedded Audio out
  Analogue L+R
PCM 2.0 channel audio (from HDBT output) extracted onto 3 pin Phoenix connector.
Stereo L/R  0.7V Rms – 20Hz-20KHz


Compatible with all versions up to 2.2

EDID data and manual EDID management

IR, RS232, Front Panel Buttons, Remote Contact closure terminals

48V DC max.
14.4W (inc. a powered HDBT RX)

164 x 40 x 145mm

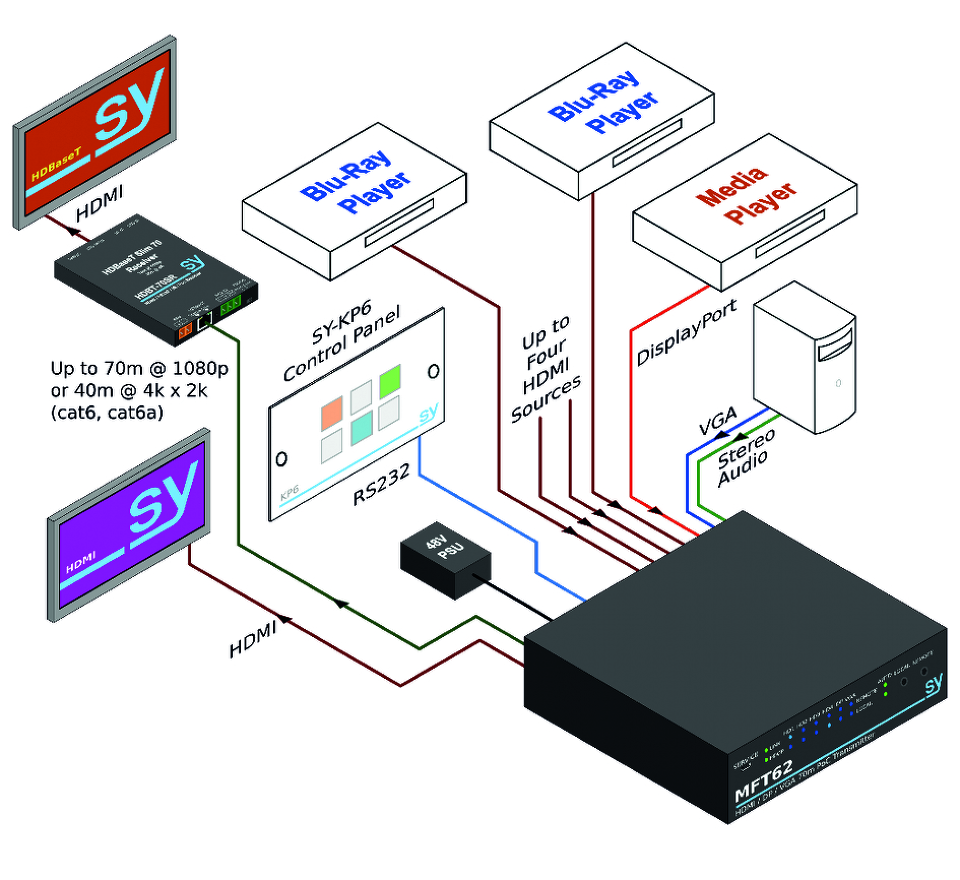

Using the MFT62
1. Connect the video inputs as required.
2. Connect the video outputs as required.
3. Power up the MFT62.
4. Press the LOCAL button to select an input to the local display.
5. Press the REMOTE button to select an input to the remote display.
6. To use Auto input detection, press and hold either the LOCAL or the REMOTE buttons until its respective AUTO LED is lit. Auto Input detection is cancelled when either the LOCAL or the REMOTE buttons pressed.
7. An external pushbutton interface to the INPUT SELECT connector may also be used to select any input to both outputs simultaneously.

1x MFT62
1x SY-HDBT-70-SE-R
1x Wall power supply with UK and EU plug adaptors
1x User’s Manual
