HD Anywhere mHub2K14 HDMI over Cat 5e / 6 splitter with local HDMI out delivers Full HD 1080p up to 50m / 164 ft with two-way IR. The HDMI loop out on the central hub facilitates stacking multiple splitters or the integration of a fifth display. Sold as a complete package inc. IR and display receivers.
The mHub2K14 HD AnyWhere 1 In 4 Out Over CAT5/6 HDMI splitter delivers Full HD 1080p up to distances of 50m / 164 ft over a single Cat 6 cable with two-way IR. The HDMI loop out on the central hub enables the integration of a fifth display.

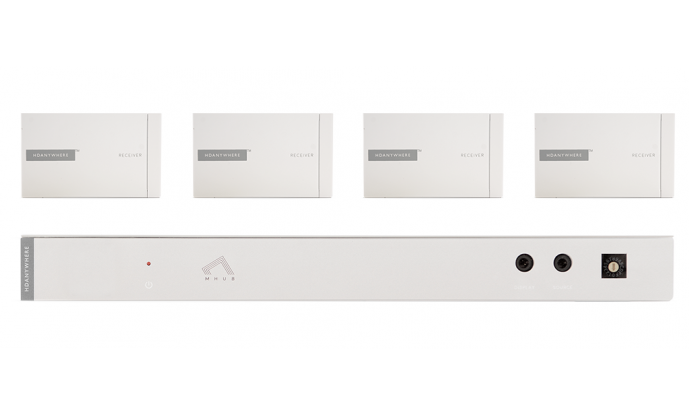

Comprised of a central hub and four display receivers, the mHub 2K 1×4 HDMI over Cat splitter delivers Full HD 1080p@60Hz 24-bit colour up to 50m / 164 ft over a single Cat 6 cable from one HDMI set top box to five displays. Control is delivered by two way-IR. The mHub 2K 1×4 hub has a HDMI loop out for integrating a fifth display or stacking multiple mHub 1×4 splitters to facilitate distribution to more displays. Please see the product manual for advice on stacking or contact technical support.
Stereo audio, LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio audio formats are supported and EDID profile management is administered via a selector wheel on the central hub. A short-run adjust switch allows for the HDMI signal to be optimised for distribution over shorter runs of Cat cable.
With each mHub 2K 1×4 splitter package, installers get everything they need for a full set up: one central hub with 12V PSU, four receivers with 5V PSUs, IR transmitters and receivers, and USB to 5V power leads. The central hub and display receivers are both slimline; the display receivers measure just 49mm (W) X 81mm (D) X 25mm (H) and can be powered optionally by USB to 5V power leads (when supported by the display models) for an ultra-neat finish. These USB to 5V power leads come supplied with every package.
