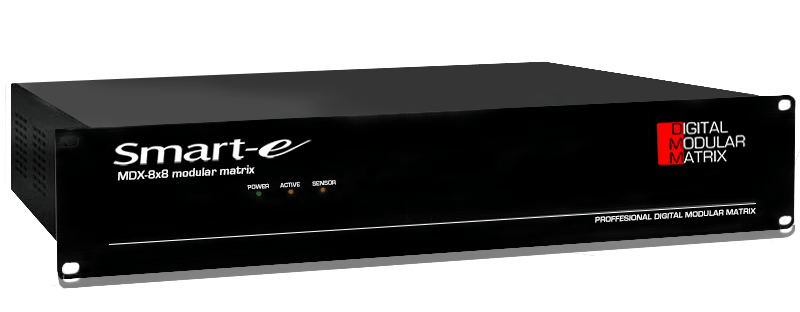

MDX-8×8 Smart-e 8×8 100m CATx Modular Matrix Chassis

£2,394.00 inc VAT

Smart-e  MDX-8×8 is an extremely flexible and fully featured modular 8×8 seamless switching matrix. Four channel input and output blades accomodate a wide range of signal types, whilst individual output scaling produces correct aspect ratio for any display size.  It supports HDMI, DVI-D, HDBaseT, RGBHV, YPbPr, 3G-SDI, 1080p @60Hz Deep Colour, 3D compatible & HDCP compliant and transmits over a single CAT 5-8 cable with POH and up to 300m for multimode fibre.

Data Sheet



The Smart-e Digital Modular Matrix (DMM) series of matrices house various input/output blades allowing you to design your matrix to the exact requirements of the installation. (I/O Blades found on next tab)

On the MDX-8×8, each input blade has a total of 4 input or 4 output connectors, each blade slot can take either a digital or analogue blade. This approach provides exceptional flexibility, enabling the installer/user to choose the appropriate input/output blades for their system requirement. Product lifespan is optimised as it can be re-deployed for an alternative purpose, simply by changing the input/output blades. Likewise, maintenance burden is reduced with the ability to readily swap-out and exchange blades.

The MDX-8×8 chassis has full matrix switching capablilities, allowing any blade input to any blade output. Analogue inputs will be digitzed and scaled to 720p or 1080p automatically. (controllable)

EDID read/write and HDCP is fully supported to ensure stable source-display connectivity.

The MDX-8×8 can be controlled in various ways, including IR, RS232 and TCP/IP.

The chassis is supplied complete with an AC100-240V 50/60Hz adaptive power supply built in with a standard IEC socket.

The MDX-8×8 is designed in 2RU 19-inch rack mountable form factor for installation to equipment racks or credenzas.

MDX-8×8 Features:

  • Modular matrix using 4 way blades
  • Multiformat signals: HDMI, DVI, HDBaseT, VGA, 3G-SDI & Fibre
  • Seamless switching
  • Seperate audio input embedding
  • Individual output video scaling
  • De-embedded audio output
  • HDCP & HDMI 1.4 compliant
  • Combined Data rate of 12Gbits/s
  • HDTV 1080p, 3D resolutions
  • PC resolutions up to 1920 x 1200 @ 60 Hz
  • High bandwidth digital switching
  • Enhanced EDID management
  • Supports Deep Colour (10 & 12 bit)
  • TCP/IP control
  • Dual port RS232 control
  • Inline power for receivers (POH)
  • Compact 2U 19″ rack mounting
  • 3 year warranty
  • Chassis sizes range from 8×8 to 144×144
  • Fast switching
  • High definition audio switching
