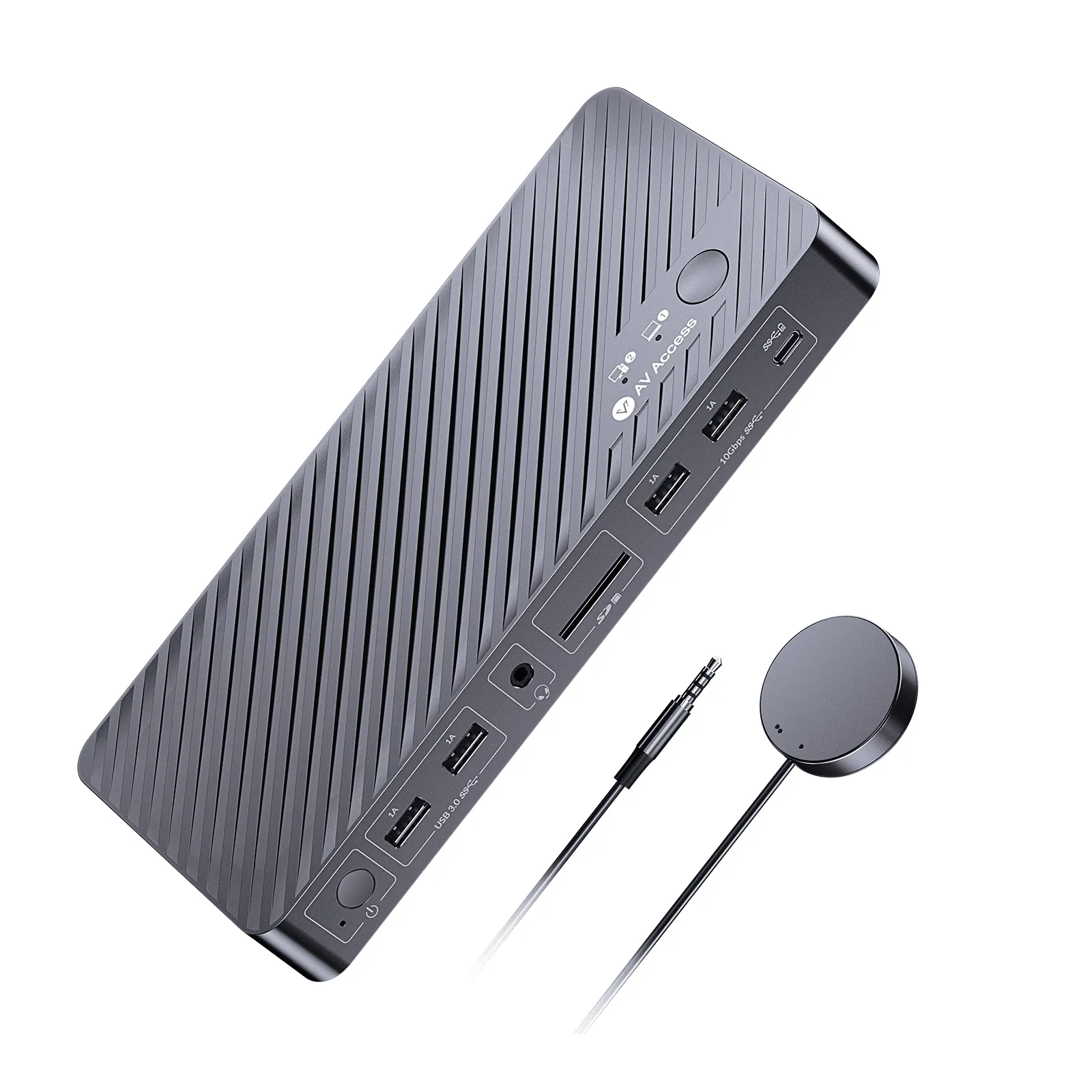

iDock M10 KVM Switch Docking Station

iDock M10 KVM Switch Docking Station for MacBook and PC, Dual 4K HDMI Displays

£275.00 inc VAT

The AV Access iDock M10:

●1 Laptop, 1 Desktop Switching: Connect both your MacBook and desktop. Switch effortlessly between them with one button.
● Dual Monitor Outputs: Support two 4K@60Hz displays for multitasking.
● Plug and Play for Mac: Fully compatible with most MacBook models. No driver is needed.
● 100W Laptop Charging: Keep your MacBook fully powered with fast and stable 100W charging.
● Constant Connection: EDID emulation keeps monitors connected to the PCs. No more desktop reshuffling after switching.

NEW: Ships Early November

SKU: iDock M10 Categories: , , , , , , , , , , , , , , , Tags: , ,

Description

KVM Switch Docking Station for Mac and PC

Switch Freely, Extend Easily

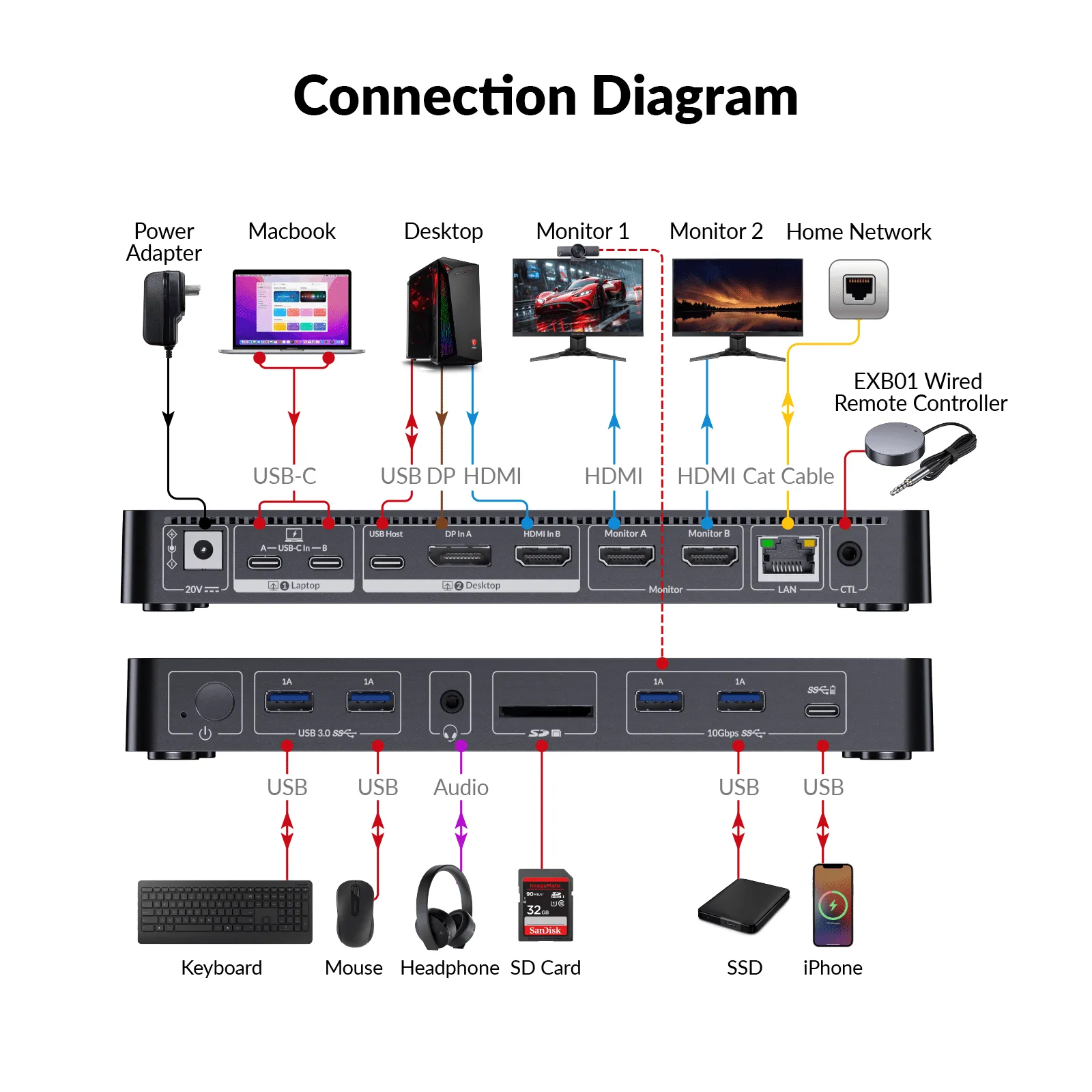

Connect your Mac to dual monitors and all the peripherals, and you can switch everything to your desktop PC in one tap.
Time to build yourself a clean and powerful workspace.

MAC COMPATIBLE

Compatible with Most MacBook Models

Designed for Mac users, this dual USB-C KVM switch docking station works seamlessly with a wide range of MacBook Pro and MacBook Air models,
as well as Mac mini and Mac Studio. It supports dual extended displays on macOS with M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, and M3/M4 chips.

1460x600 01

Note: 1. For MacBooks with M1 or M2 processors, only one external monitor is supported (one of the displays will go black when two monitors are connected).
2. For MacBooks with M3 processors, dual external monitors are supported only when the laptop lid is closed.

Technical
Input · USB-C In: 100W Charging; USB 3.2 Gen 2 (up to 10Gbps); 4K@60Hz 4:4:4 8bit video signal transfer （USB-C InB only supports 4K@60Hz 4:4:4 8bit video signal transfer）· HDMI In: HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDCP 2.2

· DP In: DP 1.2a, 4K@60Hz 4:4:4 8bit, HDCP 2.2
Output HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDCP 2.2

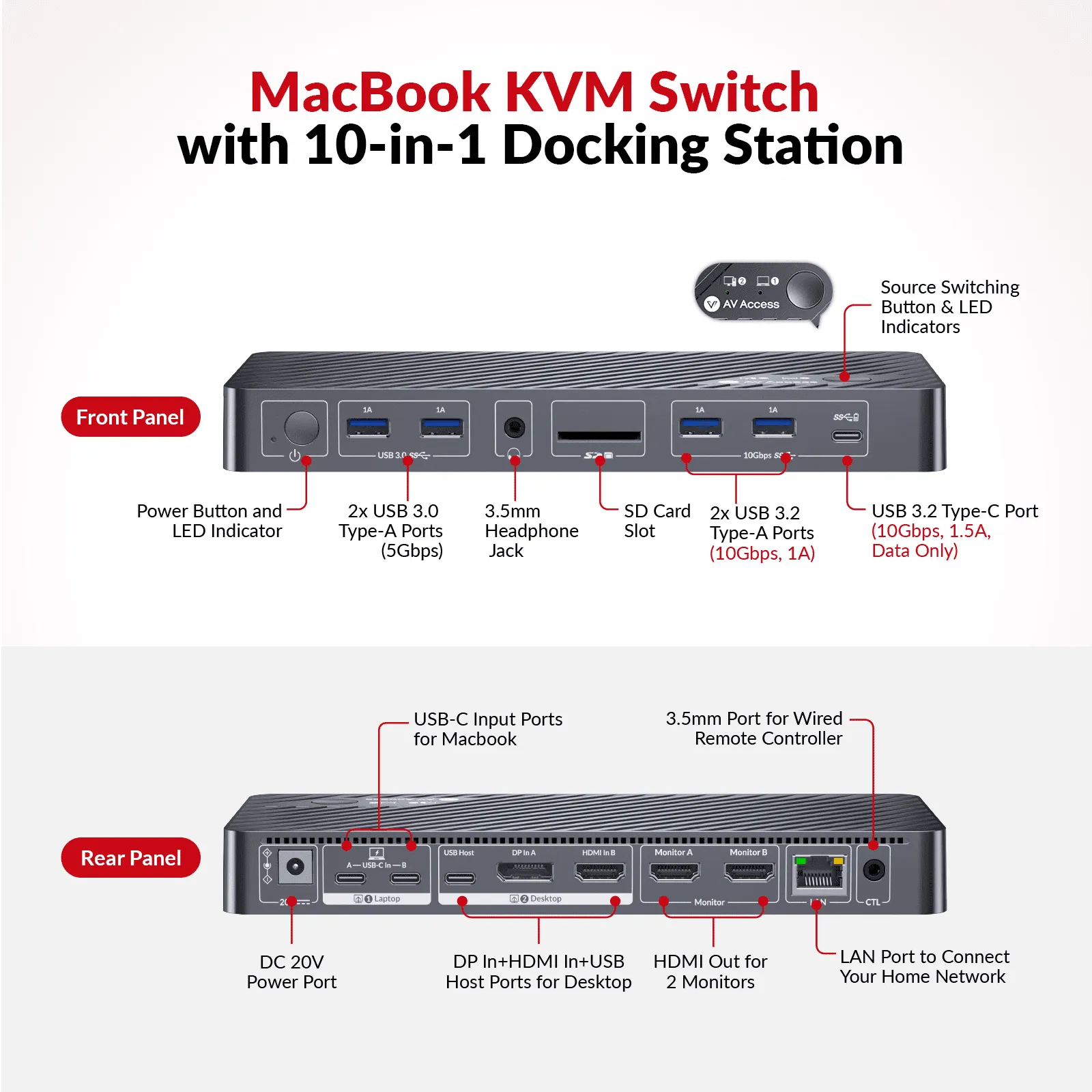

Peripheral and Expansion · USB-C x1: Up to 10Gbps, 1.5A power output.· USB-A x2: Two USB 3.2 type-A ports on front panel, supports 1A power output, and 10Gbps data transfer;

· USB-A x2: Two USB 3.0 type-A ports on front panel, supports 1A power output, and 5Gbps data transfer;

· SDXC card: Up to 104MB/s, maximum support 2TB;

· LAN: RJ-45 connector, supports for 1G Ethernet performance.
Input/Output Resolution Supported SMPTE: 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 2560×10809, 3840×10809, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8

VESA:

800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×14401,2,3,4,5,6,7,8,9

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz

· For HDMI:

4K@60Hz (3840×2160, 4096×2160);

1080P@240Hz/165Hz/144Hz/120Hz/60Hz.

· The following resolution defines under the CVT standard, which is commonly used for DP interfaces, but some displays with HDMI interfaces also support it:

3840×1440@100Hz/60Hz RBv2;

3840×1080@120Hz/100Hz/60Hz RBv2;

3440×1440@100Hz/60Hz RBv2;

2560×1600@120Hz/100Hz/60Hz RBv2;

2560×1440@144Hz/120Hz/60Hz RBv2;

2048×1536@165Hz/144Hz/120Hz/60Hz RBv2.
Audio Format Supported HDMI/DP In/HDMI Out: Fully supports audio formats in HDMI 2.0b specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:XUSB-C In: Fully supports multiple channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

Headset: Stereo
General
Operating Temperature 0°C to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 20% to 90%, non-condensing
Power Consumption 113.1W (Max)
Device Dimensions(W x H x D) 220mm x 25.2mm x 100mm / 8.66” x 0.99” x 3.94”
Product Weight 0.34kg/0.75lb
  • 1 x KVM Dock Switcher
  • 1 x Power Adapter (DC 20V/6A)
  • 1 x HDMI 2.0 Cable (L = 1.5m)
  • 1 x DP 1.2a Cable (L = 1.5m)
  • 1 x Dual USB Type-C to Dual USB Type-C Cable (USB 3.2 Gen 2, L = 0.8m)
  • 1 x USB Type-A to USB Type-C Cable (L = 1.8m)
  • 1 x Wired Remote Controller (EXB01)
  • 1 x User Manual
